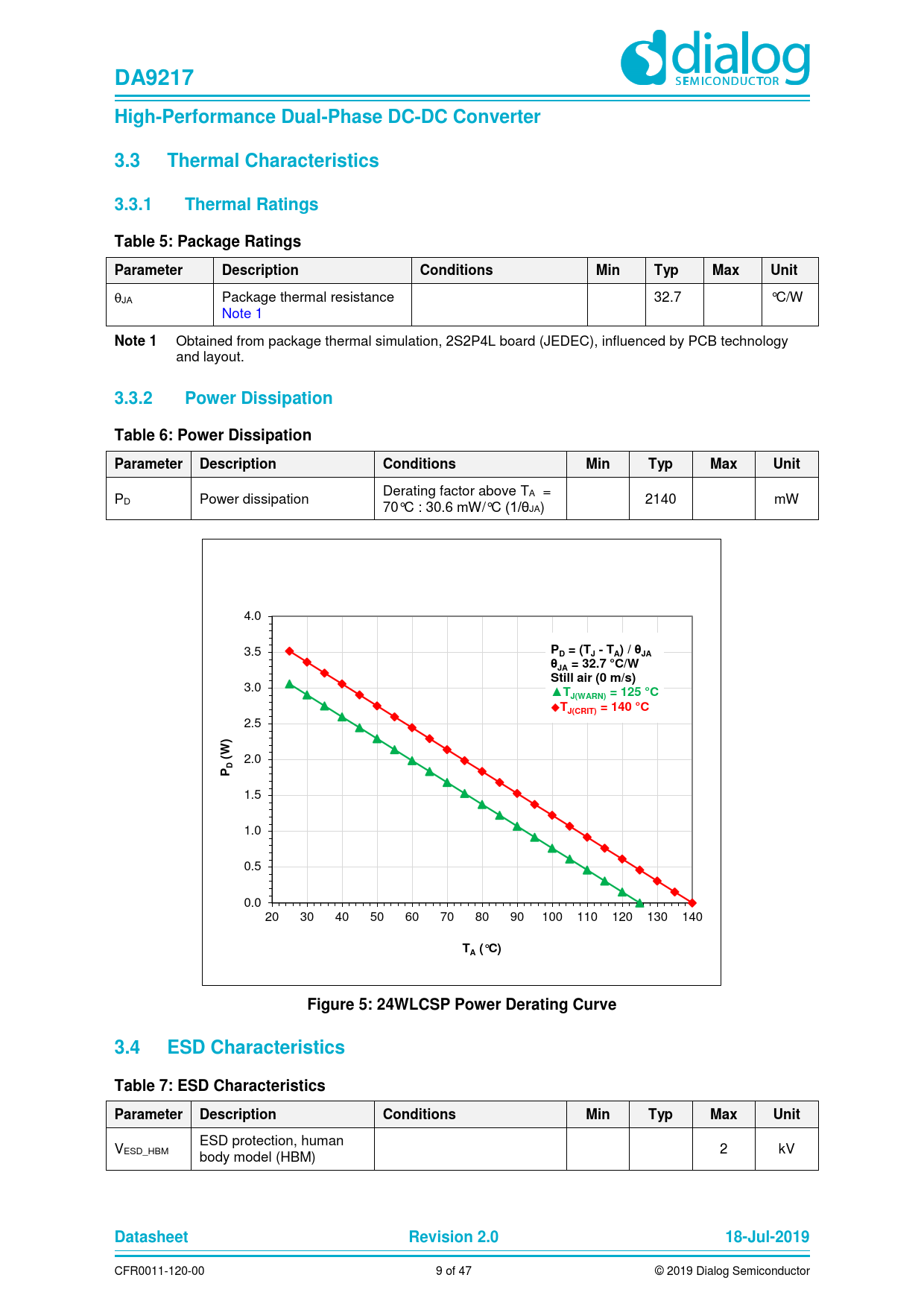

DA9217. High-Performance Dual-Phase DC-DC Converter. 3.3. Thermal Characteristics. 3.3.1. Thermal Ratings. Table 5: Package Ratings
Model Line for this Datasheet
Text Version of Document
link to page 9
DA9217 High-Performance Dual-Phase DC-DC Converter 3.3 Thermal Characteristics 3.3.1 Thermal Ratings Table 5: Package Ratings Parameter Description Conditions Min Typ Max Unit
JA Package thermal resistance 32.7 °C/W Note 1
Note 1
Obtained from package thermal simulation, 2S2P4L board (JEDEC), influenced by PCB technology and layout.
3.3.2 Power Dissipation Table 6: Power Dissipation Parameter Description Conditions Min Typ Max Unit
Derating factor above T P A = D Power dissipation 2140 mW 70°C : 30.6 mW/°C (1/θJA) 4.0 3.5
P = (T - T ) / θ D J A JA θ = 32.7 °C/W JA Still air (0 m/s)
3.0
▲T = 125 °C J(WARN)
◆
T = 140 °C J(CRIT)
2.5
) W(
2.0
DP
1.5 1.0 0.5 0.0 20 30 40 50 60 70 80 90 100 110 120 130 140
T (°C) A Figure 5: 24WLCSP Power Derating Curve 3.4 ESD Characteristics Table 7: ESD Characteristics Parameter Description Conditions Min Typ Max Unit
ESD protection, human VESD_HBM 2 kV body model (HBM)
Datasheet Revision 2.0 18-Jul-2019
