Datasheet ADXL356-EP (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer |
| Pages / Page | 9 / 1 — Low Noise, Low Drift, Low Power,. 3-Axis MEMS Accelerometer. Enhanced … |
| File Format / Size | PDF / 345 Kb |
| Document Language | English |

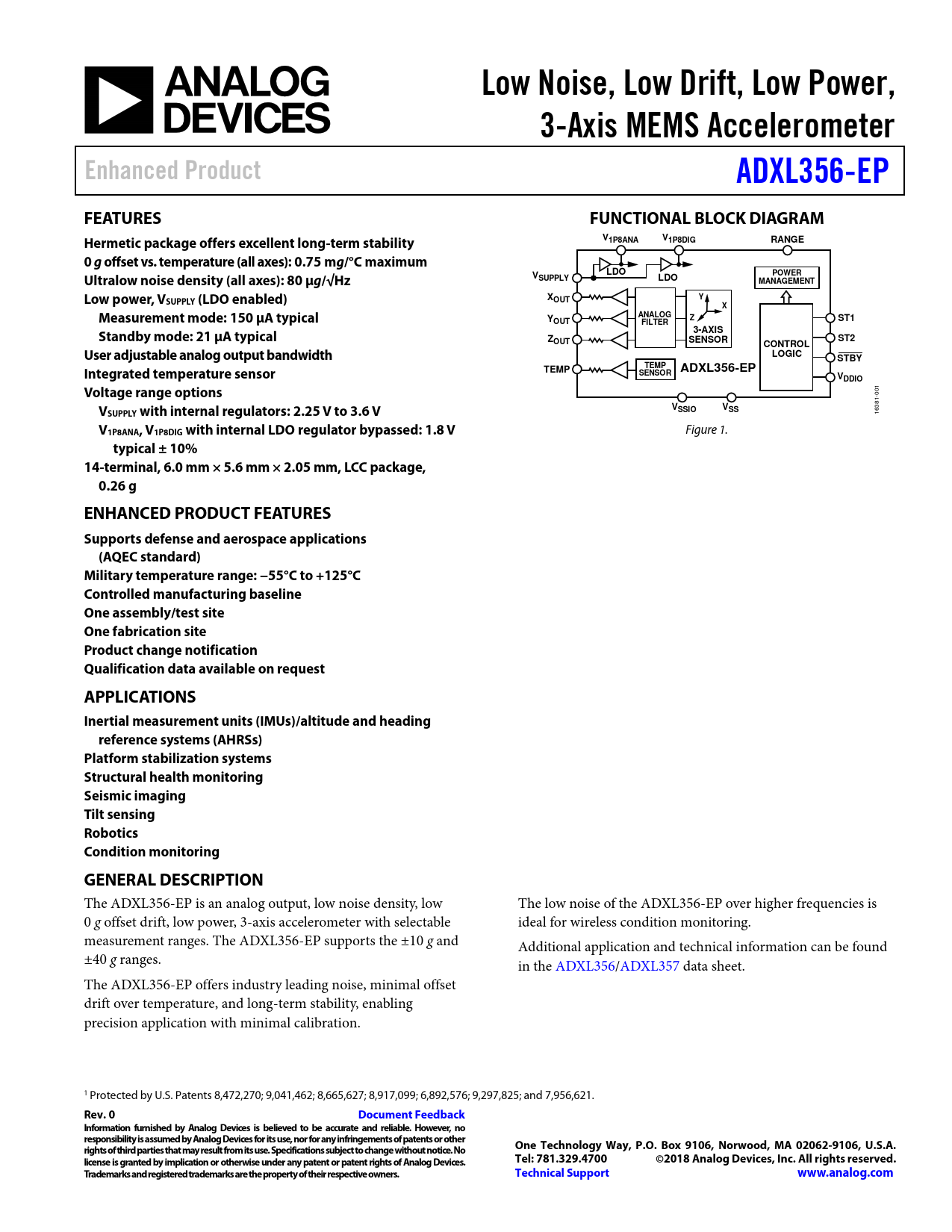

Low Noise, Low Drift, Low Power,. 3-Axis MEMS Accelerometer. Enhanced Product. ADXL356-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer Enhanced Product ADXL356-EP FEATURES FUNCTIONAL BLOCK DIAGRAM Hermetic package offers excellent long-term stability V1P8ANA V1P8DIG RANGE 0 g offset vs. temperature (all axes): 0.75 mg /°C maximum LDO Ultralow noise density (all axes): 80 µg /√Hz V POWER SUPPLY LDO MANAGEMENT Low power, VSUPPLY (LDO enabled) XOUT Y X Measurement mode: 150 µA typical Y ANALOG Z OUT ST1 FILTER Standby mode: 21 µA typical 3-AXIS ZOUT SENSOR ST2 CONTROL User adjustable analog output bandwidth LOGIC STBY TEMP Integrated temperature sensor TEMP ADXL356-EP SENSOR VDDIO Voltage range options
001
V V SUPPLY with internal regulators: 2.25 V to 3.6 V SSIO VSS
16381-
V1P8ANA, V1P8DIG with internal LDO regulator bypassed: 1.8 V
Figure 1.
typical ± 10% 14-terminal, 6.0 mm × 5.6 mm × 2.05 mm, LCC package, 0.26 g ENHANCED PRODUCT FEATURES Supports defense and aerospace applications (AQEC standard) Military temperature range: −55°C to +125°C Controlled manufacturing baseline One assembly/test site One fabrication site Product change notification Qualification data available on request APPLICATIONS Inertial measurement units (IMUs)/altitude and heading reference systems (AHRSs) Platform stabilization systems Structural health monitoring Seismic imaging Tilt sensing Robotics Condition monitoring GENERAL DESCRIPTION
The ADXL356-EP is an analog output, low noise density, low The low noise of the ADXL356-EP over higher frequencies is 0 g offset drift, low power, 3-axis accelerometer with selectable ideal for wireless condition monitoring. measurement ranges. The ADXL356-EP supports the ±10 g and Additional application and technical information can be found ±40 g ranges. in the ADXL356/ADXL357 data sheet. The ADXL356-EP offers industry leading noise, minimal offset drift over temperature, and long-term stability, enabling precision application with minimal calibration. 1 Protected by U.S. Patents 8,472,270; 9,041,462; 8,665,627; 8,917,099; 6,892,576; 9,297,825; and 7,956,621.
