Datasheet ADXL1004 (Analog Devices) - 3

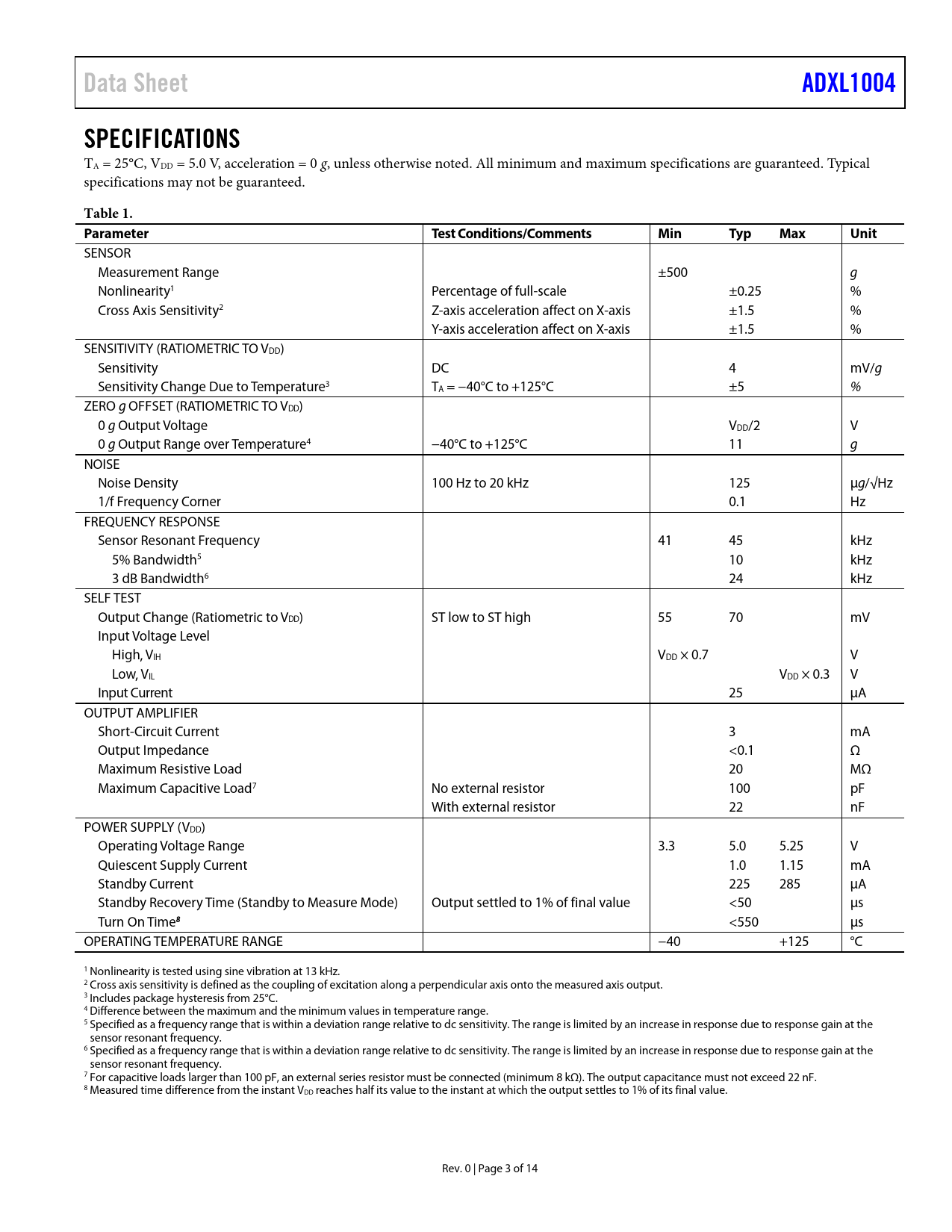

Data Sheet ADXL1004 SPECIFICATIONS
TA = 25°C, VDD = 5.0 V, acceleration = 0 g, unless otherwise noted. Al minimum and maximum specifications are guaranteed. Typical specifications may not be guaranteed.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
SENSOR Measurement Range ±500 g Nonlinearity1 Percentage of full-scale ±0.25 % Cross Axis Sensitivity2 Z-axis acceleration affect on X-axis ±1.5 % Y-axis acceleration affect on X-axis ±1.5 % SENSITIVITY (RATIOMETRIC TO VDD) Sensitivity DC 4 mV/g Sensitivity Change Due to Temperature3 TA = −40°C to +125°C ±5 % ZERO g OFFSET (RATIOMETRIC TO VDD) 0 g Output Voltage VDD/2 V 0 g Output Range over Temperature4 −40°C to +125°C 11 g NOISE Noise Density 100 Hz to 20 kHz 125 µg/√Hz 1/f Frequency Corner 0.1 Hz FREQUENCY RESPONSE Sensor Resonant Frequency 41 45 kHz 5% Bandwidth5 10 kHz 3 dB Bandwidth6 24 kHz SELF TEST Output Change (Ratiometric to VDD) ST low to ST high 55 70 mV Input Voltage Level High, VIH VDD × 0.7 V Low, VIL VDD × 0.3 V Input Current 25 µA OUTPUT AMPLIFIER Short-Circuit Current 3 mA Output Impedance <0.1 Ω Maximum Resistive Load 20 MΩ Maximum Capacitive Load7 No external resistor 100 pF With external resistor 22 nF POWER SUPPLY (VDD) Operating Voltage Range 3.3 5.0 5.25 V Quiescent Supply Current 1.0 1.15 mA Standby Current 225 285 µA Standby Recovery Time (Standby to Measure Mode) Output settled to 1% of final value <50 µs Turn On Time
8
<550 µs OPERATING TEMPERATURE RANGE −40 +125 °C 1 Nonlinearity is tested using sine vibration at 13 kHz. 2 Cross axis sensitivity is defined as the coupling of excitation along a perpendicular axis onto the measured axis output. 3 Includes package hysteresis from 25°C. 4 Difference between the maximum and the minimum values in temperature range. 5 Specified as a frequency range that is within a deviation range relative to dc sensitivity. The range is limited by an increase in response due to response gain at the sensor resonant frequency. 6 Specified as a frequency range that is within a deviation range relative to dc sensitivity. The range is limited by an increase in response due to response gain at the sensor resonant frequency. 7 For capacitive loads larger than 100 pF, an external series resistor must be connected (minimum 8 kΩ). The output capacitance must not exceed 22 nF. 8 Measured time difference from the instant VDD reaches half its value to the instant at which the output settles to 1% of its final value. Rev. 0 | Page 3 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Recommended Soldering Profile ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Mechanical Device Operation Operating Modes Measurement Mode Standby Mode Bandwidth Applications Information Application Circuit On Demand Self Test Ratiometric Output Voltage Interfacing Analog Output Below 10 kHz Interfacing Analog Output Beyond 10 kHz Overrange Mechanical Considerations for Mounting Layout and Design Recommendations Outline Dimensions Ordering Guide Untitled
