Datasheet BAT54, BAT54A, BAT54C, BAT54S (Diodes) - 4
| Manufacturer | Diodes |
| Description | Surface Mount Schottky Barrier Diode |
| Pages / Page | 5 / 4 — BAT54 /A /C /S. Package Outline Dimensions. SOT23. Dim. Min. Max. Typ. … |
| File Format / Size | PDF / 256 Kb |
| Document Language | English |
BAT54 /A /C /S. Package Outline Dimensions. SOT23. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions
Model Line for this Datasheet
- BAT54-7-F BAT54BRW-7-F BAT54DW-7-F BAT54JW-7-F BAT54LP-7 BAT54LP-7B BAT54LPS-7 BAT54Q-7-F BAT54S-7-F BAT54SDW-7-F BAT54SDWQ-7-F BAT54SQ-13 BAT54SQ-7-F BAT54ST-7-F BAT54STA BAT54STQ-7-F BAT54SW-7-F BAT54SWQ-7-F BAT54T-7 BAT54T-7-F BAT54TA BAT54TQ-7-F BAT54TW-7-F BAT54TWQ-7-F BAT54V-7 BAT54W-7-01-F BAT54W-7-F BAT54WQ-7-F BAT54WS-7-F BAT54WSQ-7-F BAT54WT-7
Text Version of Document

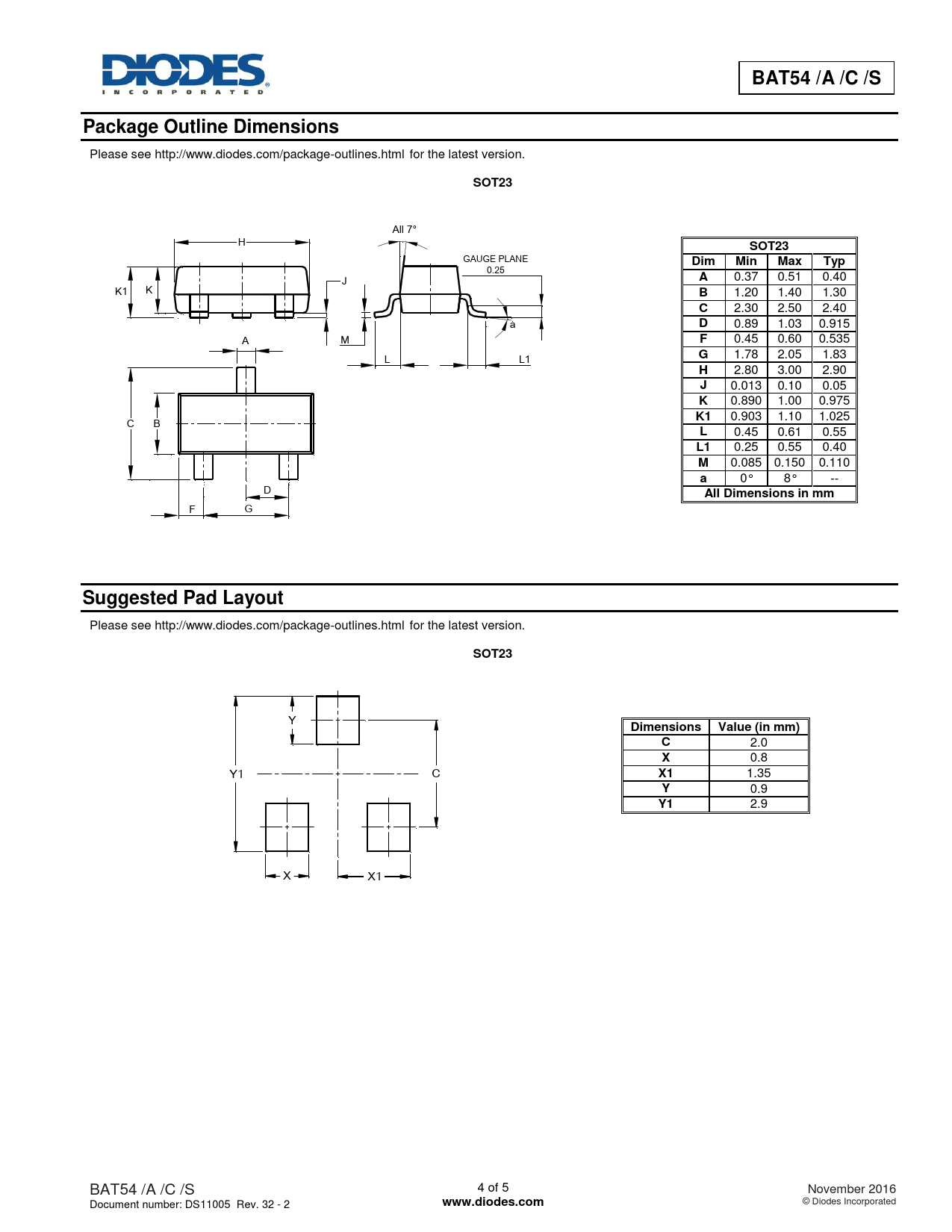

BAT54 /A /C /S Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
All 7° H
SOT23
GAUGE PLANE
Dim Min Max Typ
0.25
A
0.37 0.51 0.40 J K1 K
B
1.20 1.40 1.30
C
2.30 2.50 2.40 a
D
0.89 1.03 0.915 A M
F
0.45 0.60 0.535
G
1.78 2.05 1.83 L L1
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.890 1.00 0.975
K1
0.903 1.10 1.025 C B
L
0.45 0.61 0.55
L1
0.25 0.55 0.40
M
0.085 0.150 0.110
a
0° 8° -- D
All Dimensions in mm
F G
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Dimensions Value (in mm) C
2.0
X
0.8 Y1 C
X1
1.35
Y
0.9
Y1
2.9 X X1 BAT54 /A /C /S 4 of 5 November 2016 Document number: DS11005 Rev. 32 - 2
www.diodes.com
© Diodes Incorporated
