Datasheet NL1011T (Marlow)
| Manufacturer | Marlow |
| Description | Single Stage Thermoelectric Coolers |
| Pages / Page | 2 / 1 — Technical Data Sheet for NL1011T. NOMINAL PERFORMANCE IN NITROGEN. … |
| File Format / Size | PDF / 1.6 Mb |
| Document Language | English |
Technical Data Sheet for NL1011T. NOMINAL PERFORMANCE IN NITROGEN. PRODUCT FEATURES. ORDERING OPTIONS. Model Number. Description
Model Line for this Datasheet
Text Version of Document

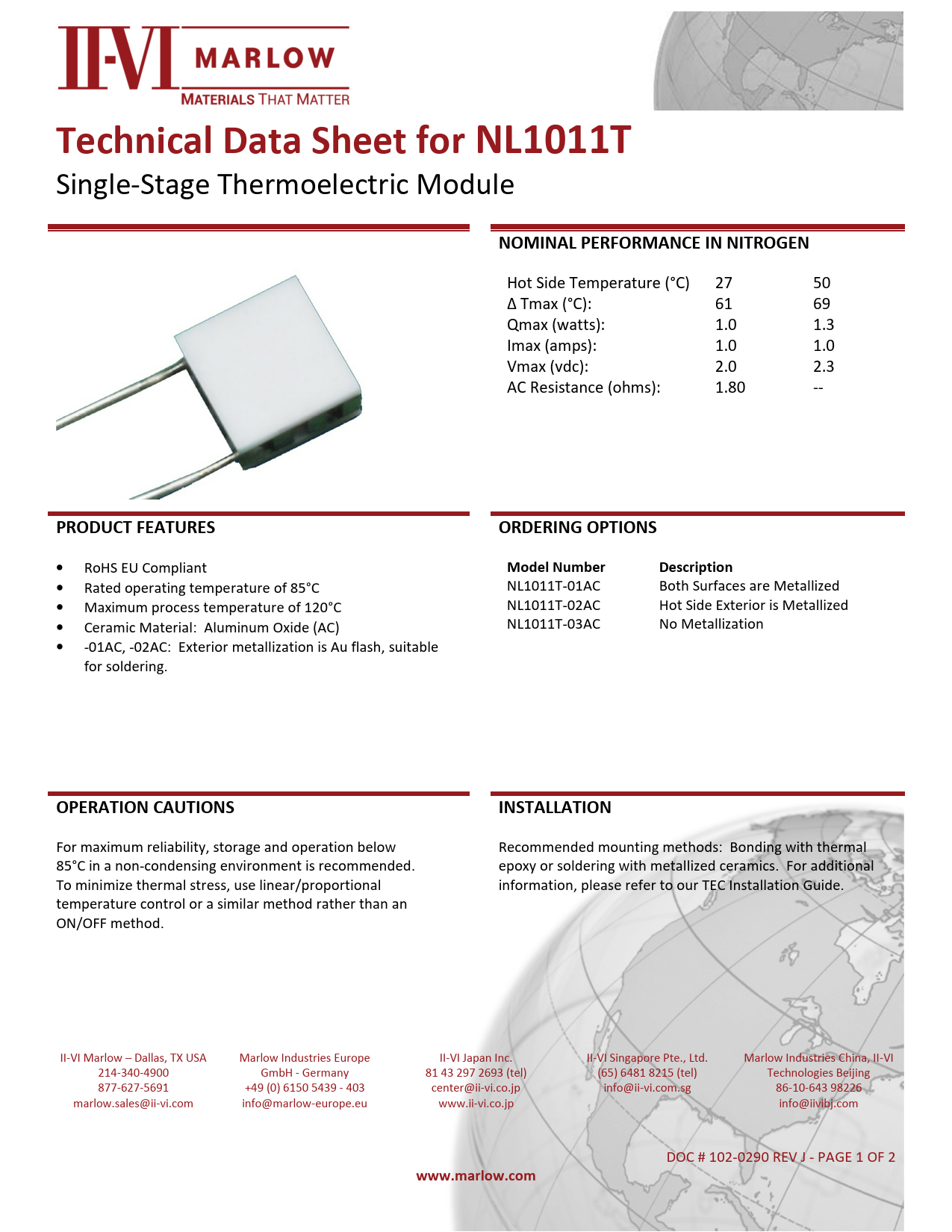

Technical Data Sheet for NL1011T
Single-Stage Thermoelectric Module
NOMINAL PERFORMANCE IN NITROGEN
Hot Side Temperature (°C) 27 50 Δ Tmax (°C): 61 69 Qmax (watts): 1.0 1.3 Imax (amps): 1.0 1.0 Vmax (vdc): 2.0 2.3 AC Resistance (ohms): 1.80 --
PRODUCT FEATURES ORDERING OPTIONS
• RoHS EU Compliant
Model Number Description
• Rated operating temperature of 85°C NL1011T-01AC Both Surfaces are Metallized • Maximum process temperature of 120°C NL1011T-02AC Hot Side Exterior is Metallized • Ceramic Material: Aluminum Oxide (AC) NL1011T-03AC No Metallization • -01AC, -02AC: Exterior metallization is Au flash, suitable for soldering.
OPERATION CAUTIONS INSTALLATION
For maximum reliability, storage and operation below Recommended mounting methods: Bonding with thermal 85°C in a non-condensing environment is recommended. epoxy or soldering with metallized ceramics. For additional To minimize thermal stress, use linear/proportional information, please refer to our TEC Installation Guide. temperature control or a similar method rather than an ON/OFF method. II-VI Marlow – Dallas, TX USA Marlow Industries Europe II-VI Japan Inc. II-VI Singapore Pte., Ltd. Marlow Industries China, II-VI 214-340-4900 GmbH - Germany 81 43 297 2693 (tel) (65) 6481 8215 (tel) Technologies Beijing 877-627-5691 +49 (0) 6150 5439 - 403 center@ii-vi.co.jp info@ii-vi.com.sg 86-10-643 98226 marlow.sales@ii-vi.com info@marlow-europe.eu www.ii-vi.co.jp info@iivibj.com DOC # 102-0290 REV J - PAGE 1 OF 2
www.marlow.com
