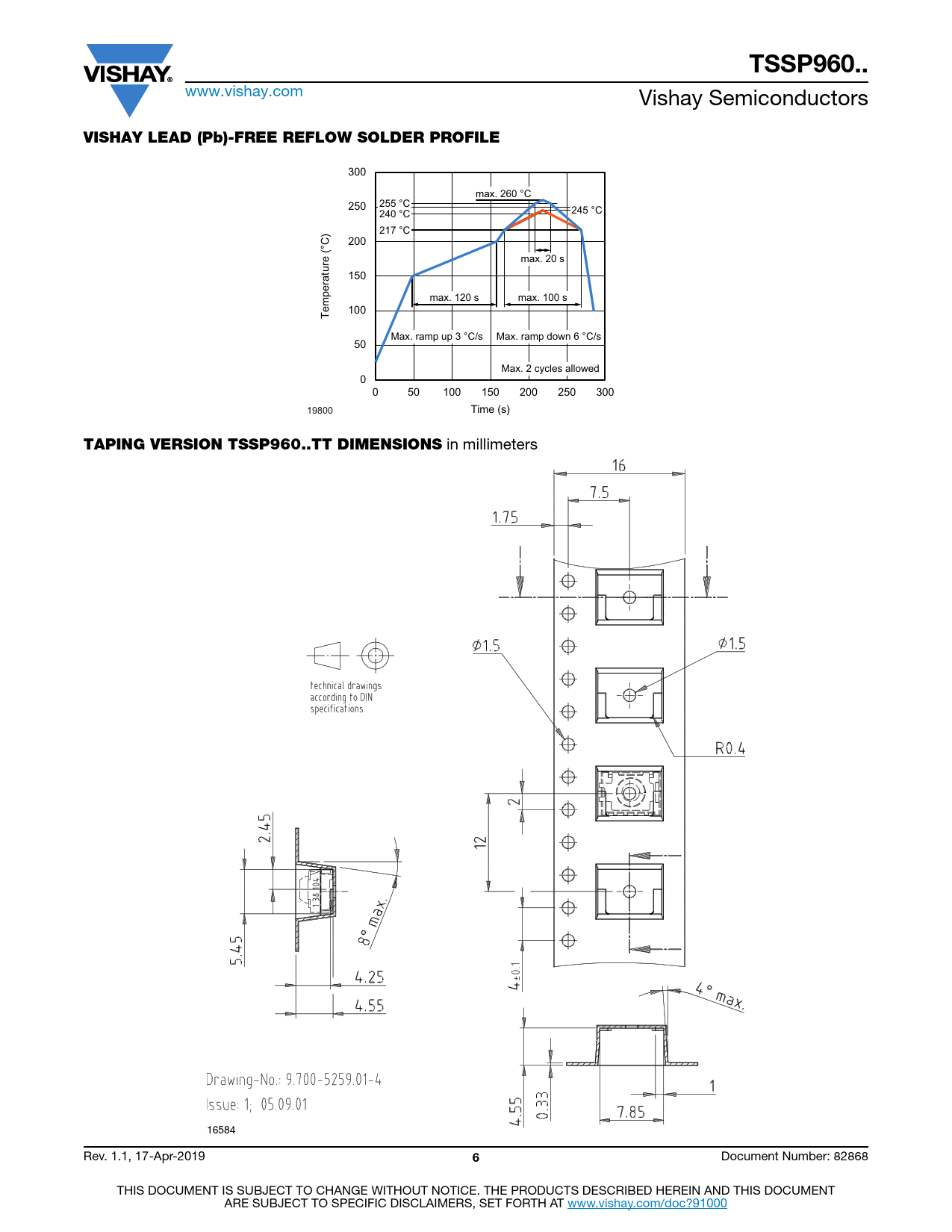

TSSP960.. VISHAY LEAD (Pb)-FREE REFLOW SOLDER PROFILE. TAPING VERSION TSSP960..TT DIMENSIONS
Model Line for this Datasheet
Text Version of Document
TSSP960..
www.vishay.com Vishay Semiconductors
VISHAY LEAD (Pb)-FREE REFLOW SOLDER PROFILE
Axis Title 300 10000 max. 260 °C 250 255 °C 245 °C 240 °C 217 °C 200 1000 max. 20 s ine 150 2nd l max. 120 s max. 100 s 100 100 Temperature (°C) Max. ramp up 3 °C/s Max. ramp down 6 °C/s 50 Max. 2 cycles allowed 0 10 0 50 100 150 200 250 300 19800 Time (s)
TAPING VERSION TSSP960..TT DIMENSIONS
in millimeters 16584 Rev. 1.1, 17-Apr-2019
6
Document Number: 82868 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
