Product Specification GLF74130 (GLF Integrated Power) - 3
| Manufacturer | GLF Integrated Power |
| Description | Ultra-High-Efficiency 4.5A Two-Input Power Mux for IoT Applications |
| Pages / Page | 3 / 3 — GLF74130. 4.5A Power Mux Switch with Auto & Manual Input Selection. … |
| File Format / Size | PDF / 351 Kb |
| Document Language | English |

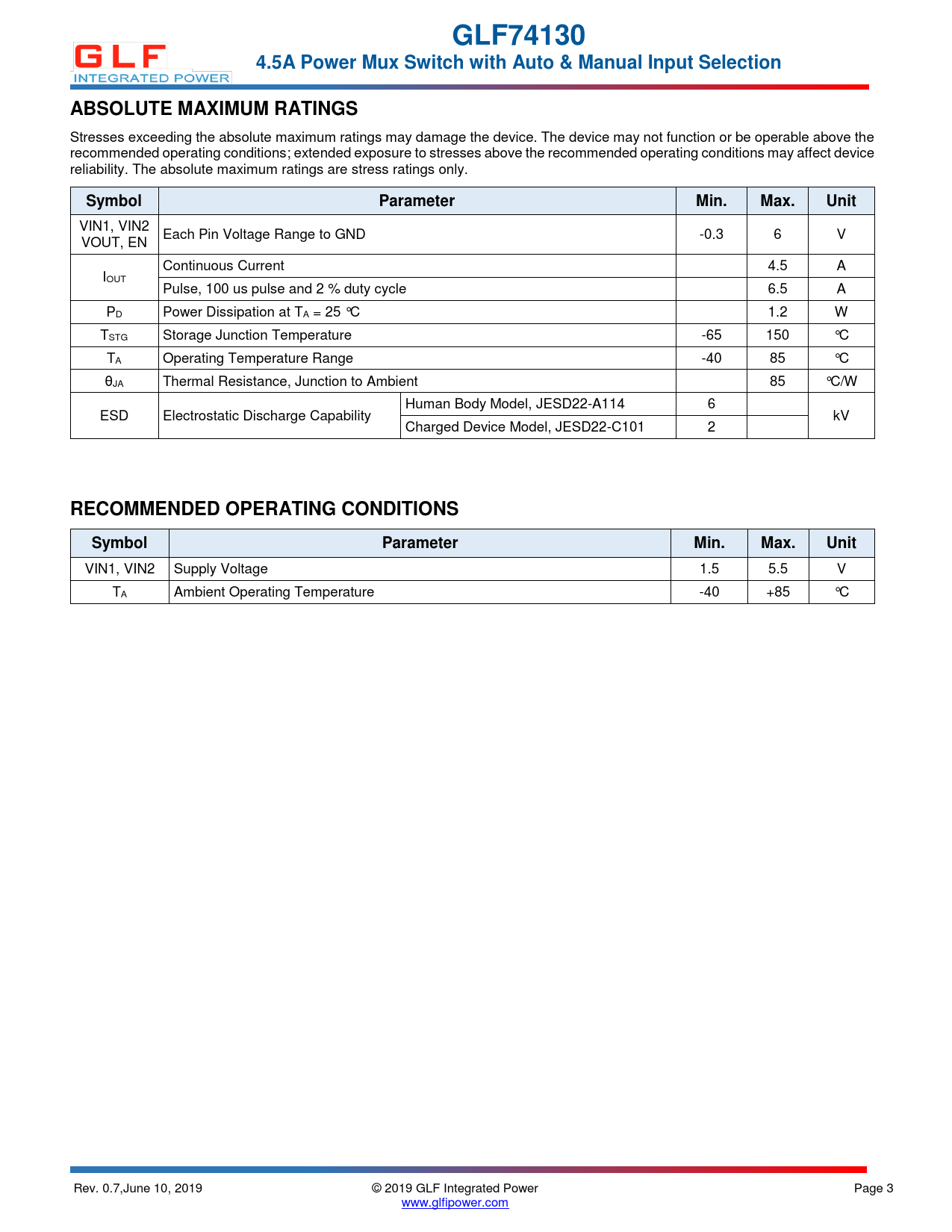

GLF74130. 4.5A Power Mux Switch with Auto & Manual Input Selection. ABSOLUTE MAXIMUM RATINGS. Symbol. Parameter. Min. Max. Unit
Model Line for this Datasheet
Text Version of Document
GLF74130 4.5A Power Mux Switch with Auto & Manual Input Selection ABSOLUTE MAXIMUM RATINGS
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions; extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.
Symbol Parameter Min. Max. Unit
VIN1, VIN2 Each Pin Voltage Range to GND -0.3 6 V VOUT, EN Continuous Current 4.5 A IOUT Pulse, 100 us pulse and 2 % duty cycle 6.5 A PD Power Dissipation at TA = 25 °C 1.2 W TSTG Storage Junction Temperature -65 150 °C TA Operating Temperature Range -40 85 °C θJA Thermal Resistance, Junction to Ambient 85 °C/W Human Body Model, JESD22-A114 6 ESD Electrostatic Discharge Capability kV Charged Device Model, JESD22-C101 2
RECOMMENDED OPERATING CONDITIONS Symbol Parameter Min. Max. Unit
VIN1, VIN2 Supply Voltage 1.5 5.5 V TA Ambient Operating Temperature -40 +85 °C Rev. 0.7,June 10, 2019 © 2019 GLF Integrated Power Page 3 www.glfipower.com
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions; extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.
Symbol Parameter Min. Max. Unit
VIN1, VIN2 Each Pin Voltage Range to GND -0.3 6 V VOUT, EN Continuous Current 4.5 A IOUT Pulse, 100 us pulse and 2 % duty cycle 6.5 A PD Power Dissipation at TA = 25 °C 1.2 W TSTG Storage Junction Temperature -65 150 °C TA Operating Temperature Range -40 85 °C θJA Thermal Resistance, Junction to Ambient 85 °C/W Human Body Model, JESD22-A114 6 ESD Electrostatic Discharge Capability kV Charged Device Model, JESD22-C101 2
RECOMMENDED OPERATING CONDITIONS Symbol Parameter Min. Max. Unit
VIN1, VIN2 Supply Voltage 1.5 5.5 V TA Ambient Operating Temperature -40 +85 °C Rev. 0.7,June 10, 2019 © 2019 GLF Integrated Power Page 3 www.glfipower.com
