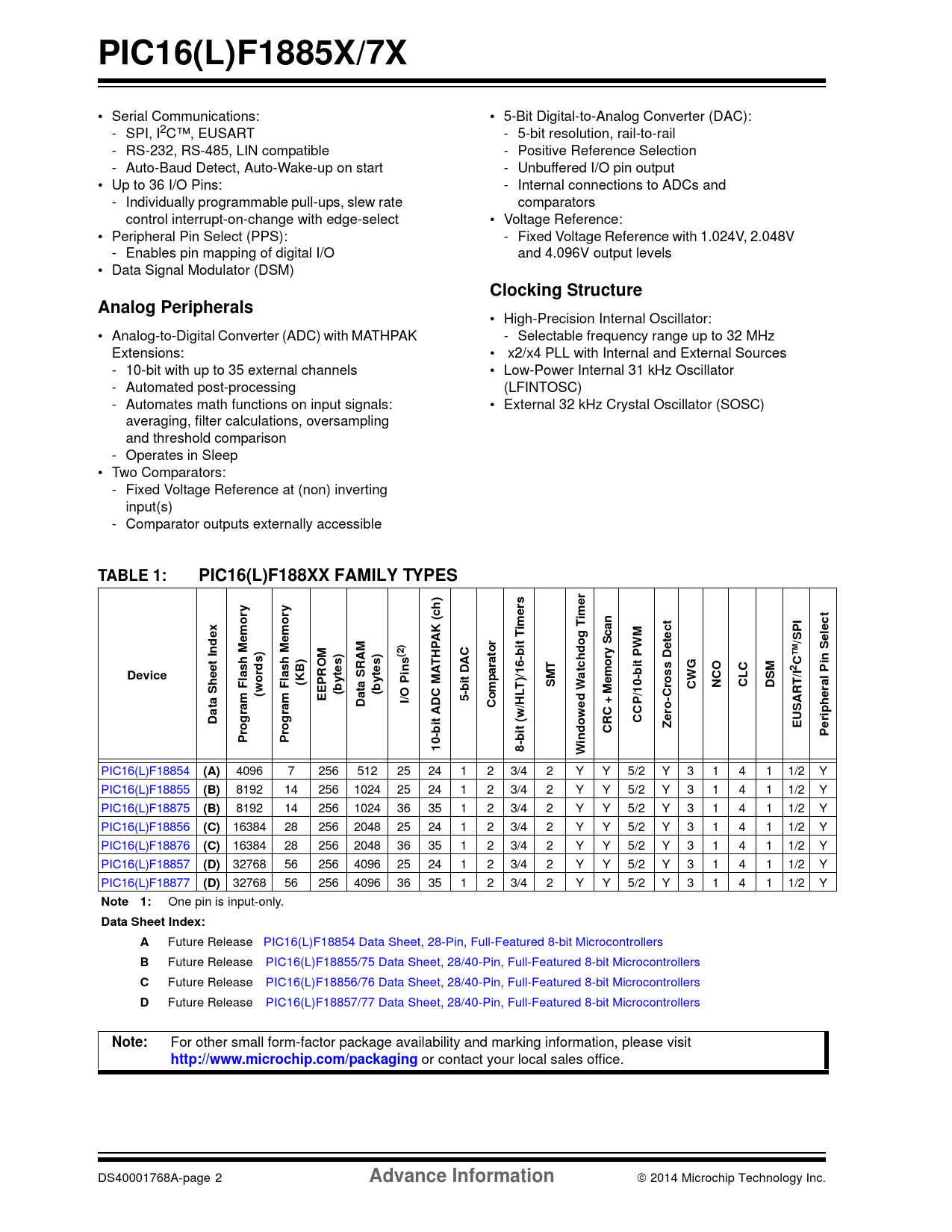

PIC16(L)F1885X/7X. • Serial Communications:. -SPI, I2C™, EUSART. -RS-232, RS-485, LIN compatible
Model Line for this Datasheet
- PIC16F18857-E/ML PIC16F18857-E/MLVAO PIC16F18857-E/SO PIC16F18857-E/SP PIC16F18857-E/SS PIC16F18857-E/SSVAO PIC16F18857-I/ML PIC16F18857-I/SO PIC16F18857-I/SP PIC16F18857-I/SS PIC16F18857-I/SSVAO PIC16F18857T-E/MLVAO PIC16F18857T-E/SS PIC16F18857T-E/SSVAO PIC16F18857T-I/ML PIC16F18857T-I/SO PIC16F18857T-I/SS PIC16F18857T-I/SSC02 PIC16F18857T-I/SSVAO PIC16LF18857-E/ML PIC16LF18857-E/SO PIC16LF18857-E/SP PIC16LF18857-E/SS PIC16LF18857-I/ML PIC16LF18857-I/SO PIC16LF18857-I/SP PIC16LF18857-I/SS PIC16LF18857T-I/ML PIC16LF18857T-I/SO PIC16LF18857T-I/SS
- PIC16F18877-E/ML PIC16F18877-E/MV PIC16F18877-E/MVVAO PIC16F18877-E/P PIC16F18877-E/PT PIC16F18877-I/ML PIC16F18877-I/MV PIC16F18877-I/P PIC16F18877-I/PREL PIC16F18877-I/PT PIC16F18877T-E/MV PIC16F18877T-E/MVVAO PIC16F18877T-I/ML PIC16F18877T-I/MV PIC16F18877T-I/PT PIC16LF18877-E/ML PIC16LF18877-E/MV PIC16LF18877-E/P PIC16LF18877-E/PT PIC16LF18877-I/ML PIC16LF18877-I/MV PIC16LF18877-I/MVC04 PIC16LF18877-I/P PIC16LF18877-I/PT PIC16LF18877T-I/MV PIC16LF18877T-I/MVC04 PIC16LF18877T-I/PT PIC16LF18877T-I/PTC01 PIC16LF18877T-I/PTRA3
Text Version of Document
PIC16(L)F1885X/7X
• Serial Communications:
-SPI, I2C™, EUSART
-RS-232, RS-485, LIN compatible
-Auto-Baud Detect, Auto-Wake-up on start
• Up to 36 I/O Pins:
-Individually programmable pull-ups, slew rate
control interrupt-on-change with edge-select
• Peripheral Pin Select (PPS):
-Enables pin mapping of digital I/O
• Data Signal Modulator (DSM) • 5-Bit Digital-to-Analog Converter (DAC):
-5-bit resolution, rail-to-rail
-Positive Reference Selection
-Unbuffered I/O pin output
-Internal connections to ADCs and
comparators
• Voltage Reference:
-Fixed Voltage Reference with 1.024V, 2.048V
and 4.096V output levels Clocking Structure
Analog Peripherals • High-Precision Internal Oscillator:
-Selectable frequency range up to 32 MHz
• x2/x4 PLL with Internal and External Sources
• Low-Power Internal 31 kHz Oscillator
(LFINTOSC)
• External 32 kHz Crystal Oscillator (SOSC) • Analog-to-Digital Converter (ADC) with MATHPAK
Extensions:
-10-bit with up to 35 external channels
-Automated post-processing
-Automates math functions on input signals:
averaging, filter calculations, oversampling
and threshold comparison
-Operates in Sleep
• Two Comparators:
-Fixed Voltage Reference at (non) inverting
input(s)
-Comparator outputs externally accessible PIC16(L)F188XX FAMILY TYPES Device Data Sheet Index Program Flash Memory
(words) Program Flash Memory
(KB) EEPROM
(bytes) Data SRAM
(bytes) I/O Pins(2) 10-bit ADC MATHPAK (ch) 5-bit DAC Comparator 8-bit (w/HLT)/16-bit Timers SMT Windowed Watchdog Timer CRC + Memory Scan CCP/10-bit PWM Zero-Cross Detect CWG NCO CLC DSM EUSART/I2C™/SPI Peripheral Pin Select TABLE 1: PIC16(L)F18854 (A) 4096 7 256 512 25 24 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y PIC16(L)F18855 (B) 8192 14 256 1024 25 24 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y PIC16(L)F18875 (B) 8192 14 256 1024 36 35 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y PIC16(L)F18856 (C) 16384 28 256 2048 25 24 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y PIC16(L)F18876 (C) 16384 28 256 2048 36 35 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y PIC16(L)F18857 (D) 32768 56 256 4096 25 24 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y PIC16(L)F18877 (D) 32768 56 256 4096 36 35 1 2 3/4 2 Y Y 5/2 Y 3 1 4 1 1/2 Y Note 1: One pin is input-only. Data Sheet Index:
A Future Release PIC16(L)F18854 Data Sheet, 28-Pin, Full-Featured 8-bit Microcontrollers B Future Release PIC16(L)F18855/75 Data Sheet, 28/40-Pin, Full-Featured 8-bit Microcontrollers C Future Release PIC16(L)F18856/76 Data Sheet, 28/40-Pin, Full-Featured 8-bit Microcontrollers D Future Release PIC16(L)F18857/77 Data Sheet, 28/40-Pin, Full-Featured 8-bit Microcontrollers Note: For other small form-factor package availability and marking information, please visit
http://www.microchip.com/packaging or contact your local sales office. DS40001768A-page 2 Advance Information 2014 Microchip Technology Inc.
