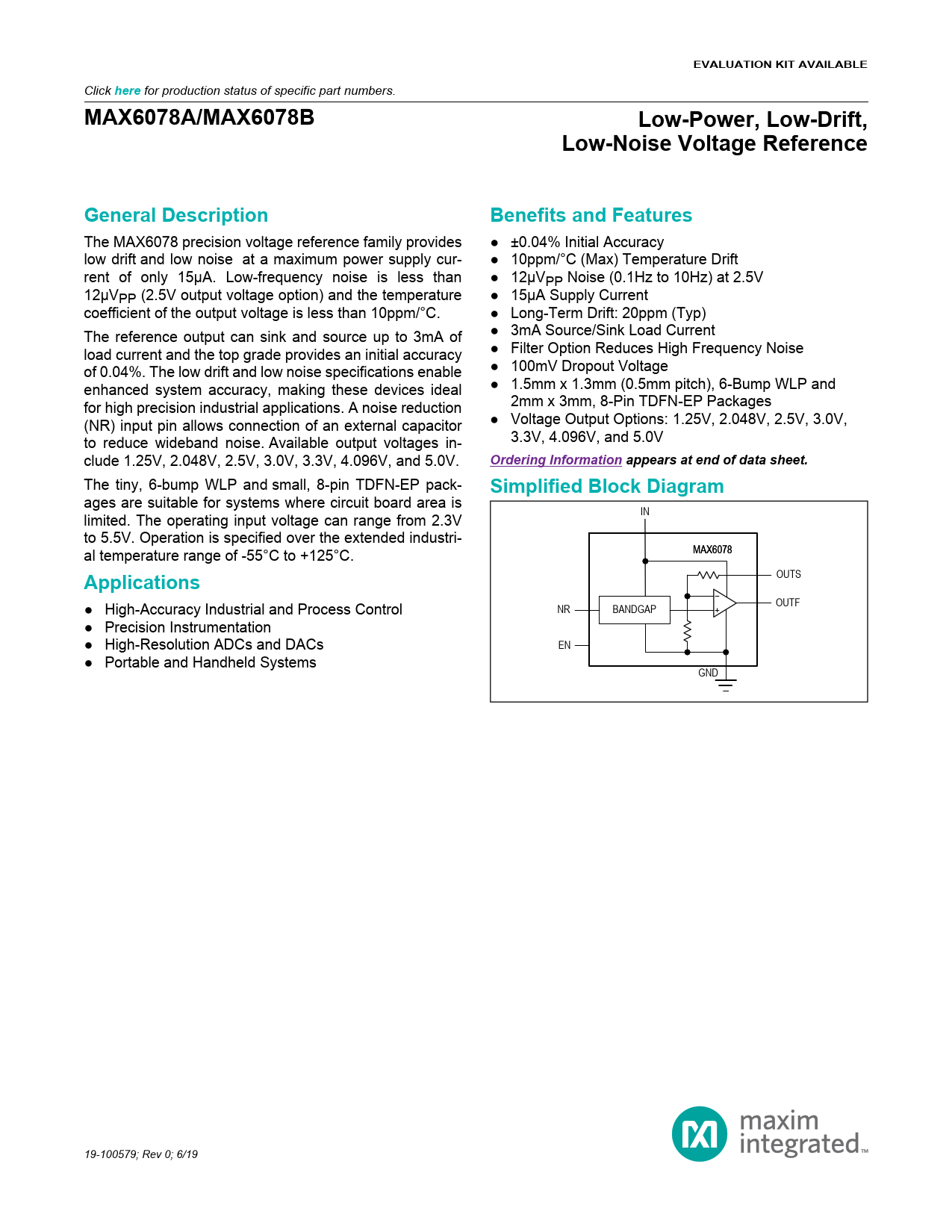

EVALUATION KIT AVAILABLE. here. MAX6078A/MAX6078B. Low-Power, Low-Drift,. Low-Noise Voltage Reference. General Description
Model Line for this Datasheet
Text Version of Document
link to page 12
EVALUATION KIT AVAILABLE
Click
here
for production status of specific part numbers.
MAX6078A/MAX6078B Low-Power, Low-Drift, Low-Noise Voltage Reference General Description Benefits and Features
The MAX6078 precision voltage reference family provides ● ±0.04% Initial Accuracy low drift and low noise at a maximum power supply cur- ● 10ppm/°C (Max) Temperature Drift rent of only 15µA. Low-frequency noise is less than ● 12µVPP Noise (0.1Hz to 10Hz) at 2.5V 12µVPP (2.5V output voltage option) and the temperature ● 15µA Supply Current coefficient of the output voltage is less than 10ppm/°C. ● Long-Term Drift: 20ppm (Typ) The reference output can sink and source up to 3mA of ● 3mA Source/Sink Load Current load current and the top grade provides an initial accuracy ● Filter Option Reduces High Frequency Noise of 0.04%. The low drift and low noise specifications enable ● 100mV Dropout Voltage enhanced system accuracy, making these devices ideal ● 1.5mm x 1.3mm (0.5mm pitch), 6-Bump WLP and for high precision industrial applications. A noise reduction 2mm x 3mm, 8-Pin TDFN-EP Packages (NR) input pin allows connection of an external capacitor ● Voltage Output Options: 1.25V, 2.048V, 2.5V, 3.0V, to reduce wideband noise. Available output voltages in- 3.3V, 4.096V, and 5.0V clude 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V.
Ordering Information appears at end of data sheet.
The tiny, 6-bump WLP and small, 8-pin TDFN-EP pack-
Simplified Block Diagram
ages are suitable for systems where circuit board area is IN limited. The operating input voltage can range from 2.3V to 5.5V. Operation is specified over the extended industri- al temperature range of -55°C to +125°C. MAX6078
Applications
OUTS ● High-Accuracy Industrial and Process Control OUTF NR BANDGAP ● Precision Instrumentation ● High-Resolution ADCs and DACs EN ● Portable and Handheld Systems GND 19-100579; Rev 0; 6/19 Document Outline General Description Applications Benefits and Features Simplified Block Diagram Absolute Maximum Ratings Package Information 8 TDFN 8 WLP Electrical Characteristics – 2.5V Typical Operating Characteristics Pin Configurations 6 WLP 8 TDFN-EP Pin Description Functional Diagram Typical Operating Circuit Detailed Description Wideband Noise Reduction (NR) Output Bypassing Turn-On Time Output Force and Sense Shutdown Thermal Hysteresis Applications Information Precision Current Source Ordering Information Revision History
