Datasheet VSMY5850X01 (Vishay) - 4
| Manufacturer | Vishay |
| Description | High Speed Infrared Emitting Diodes, 850 nm, Surface Emitter Technology |
| Pages / Page | 6 / 4 — VSMY5850X01. PACKAGE DIMENSIONS |
| File Format / Size | PDF / 127 Kb |
| Document Language | English |
VSMY5850X01. PACKAGE DIMENSIONS
Model Line for this Datasheet
Text Version of Document
VSMY5850X01
www.vishay.com Vishay Semiconductors
PACKAGE DIMENSIONS

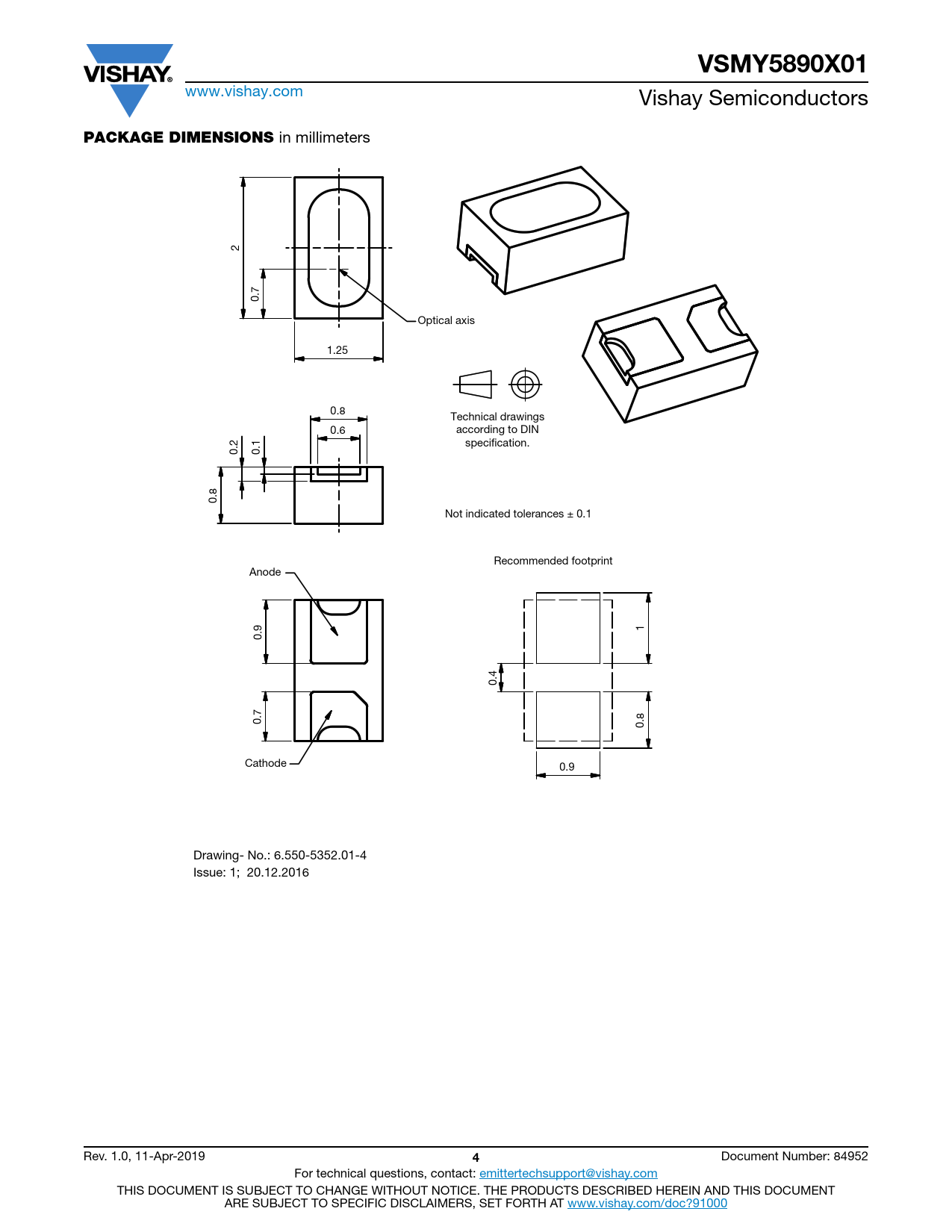

in millimeters 2 0.7 Optical axis 1.25 0.8 Technical drawings 0.6 according to DIN specification. 0.2 0.1 0.8 Not indicated tolerances ± 0.1 Recommended footprint Anode 1 0.9 0.4 0.7 0.8 Cathode 0.9 Drawing- No.: 6.550-5352.01-4 Issue: 1; 20.12.2016 Rev. 1.0, 11-Apr-2019
