Datasheet BTA24, BTB24, BTA25 BTA26, BTB26, T25 (STMicroelectronics) - 2

link to page 2 link to page 2

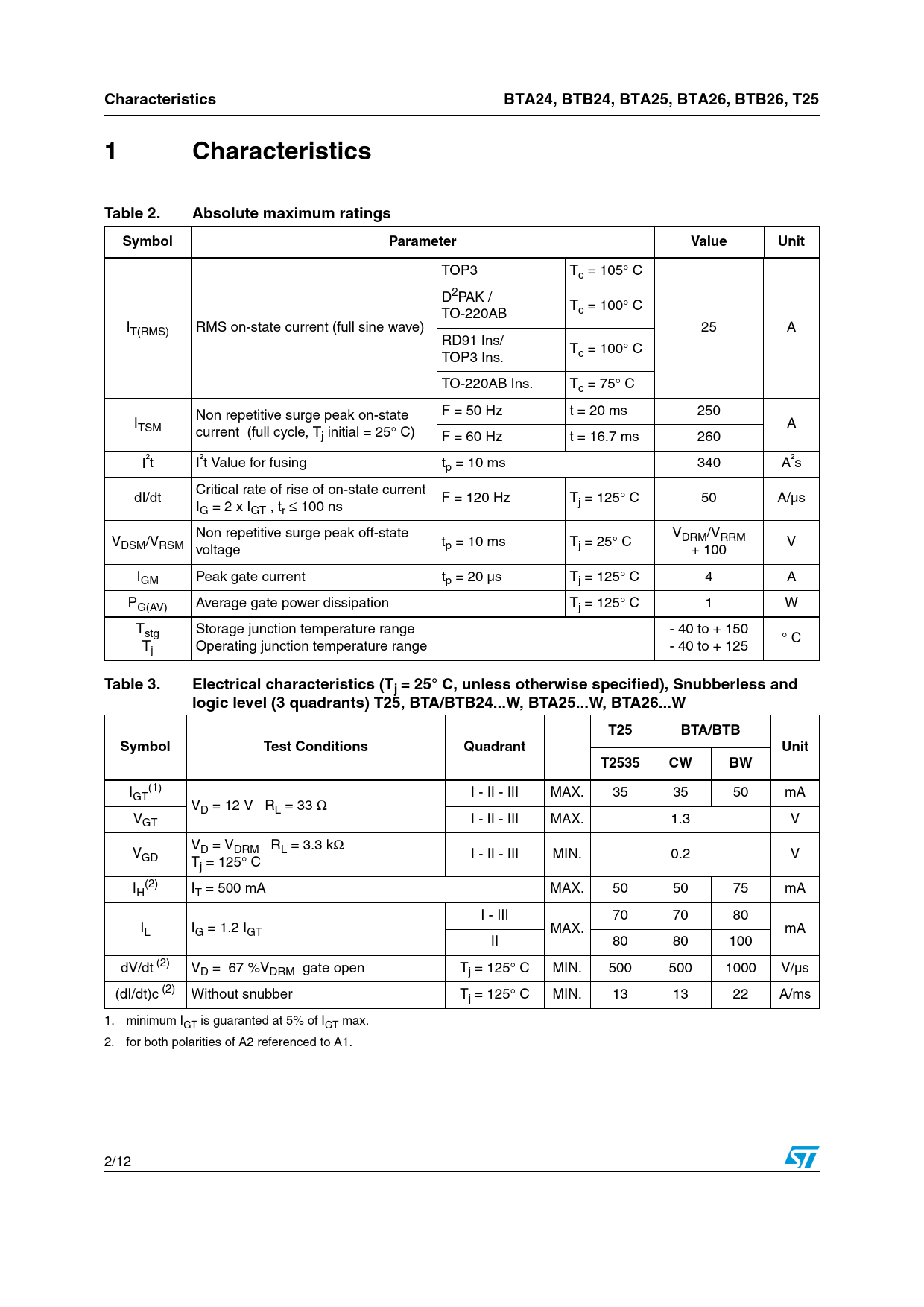

Characteristics BTA24, BTB24, BTA25, BTA26, BTB26, T25 1 Characteristics Table 2. Absolute maximum ratings Symbol Parameter Value Unit
TOP3 Tc = 105° C D2PAK / T TO-220AB c = 100° C IT(RMS) RMS on-state current (full sine wave) 25 A RD91 Ins/ T TOP3 Ins. c = 100° C TO-220AB Ins. Tc = 75° C Non repetitive surge peak on-state F = 50 Hz t = 20 ms 250 ITSM A current (full cycle, Tj initial = 25° C) F = 60 Hz t = 16.7 ms 260 I²t I²t Value for fusing tp = 10 ms 340 A²s Critical rate of rise of on-state current dI/dt F = 120 Hz T I j = 125° C 50 A/µs G = 2 x IGT , tr ≤ 100 ns Non repetitive surge peak off-state V V DRM/VRRM DSM/VRSM t V voltage p = 10 ms Tj = 25° C + 100 IGM Peak gate current tp = 20 µs Tj = 125° C 4 A PG(AV) Average gate power dissipation Tj = 125° C 1 W Tstg Storage junction temperature range - 40 to + 150 ° C Tj Operating junction temperature range - 40 to + 125
Table 3. Electrical characteristics (Tj = 25° C, unless otherwise specified), Snubberless and logic level (3 quadrants) T25, BTA/BTB24...W, BTA25...W, BTA26...W T25 BTA/BTB Symbol Test Conditions Quadrant Unit T2535 CW BW
