Data Brief AK8464 (Asahi Kasei Microdevices) - 2
| Manufacturer | Asahi Kasei Microdevices |
| Description | 3ch input 10bit 35MSPS/ch AFE for MFP or CIS module with CCDI/F, TG, LVDS, LDO, Synth_PLL, and SSCG_PLL |
| Pages / Page | 13 / 2 — Product Brief |
| File Format / Size | PDF / 341 Kb |
| Document Language | English |
Product Brief
Model Line for this Datasheet
Text Version of Document
Product Brief

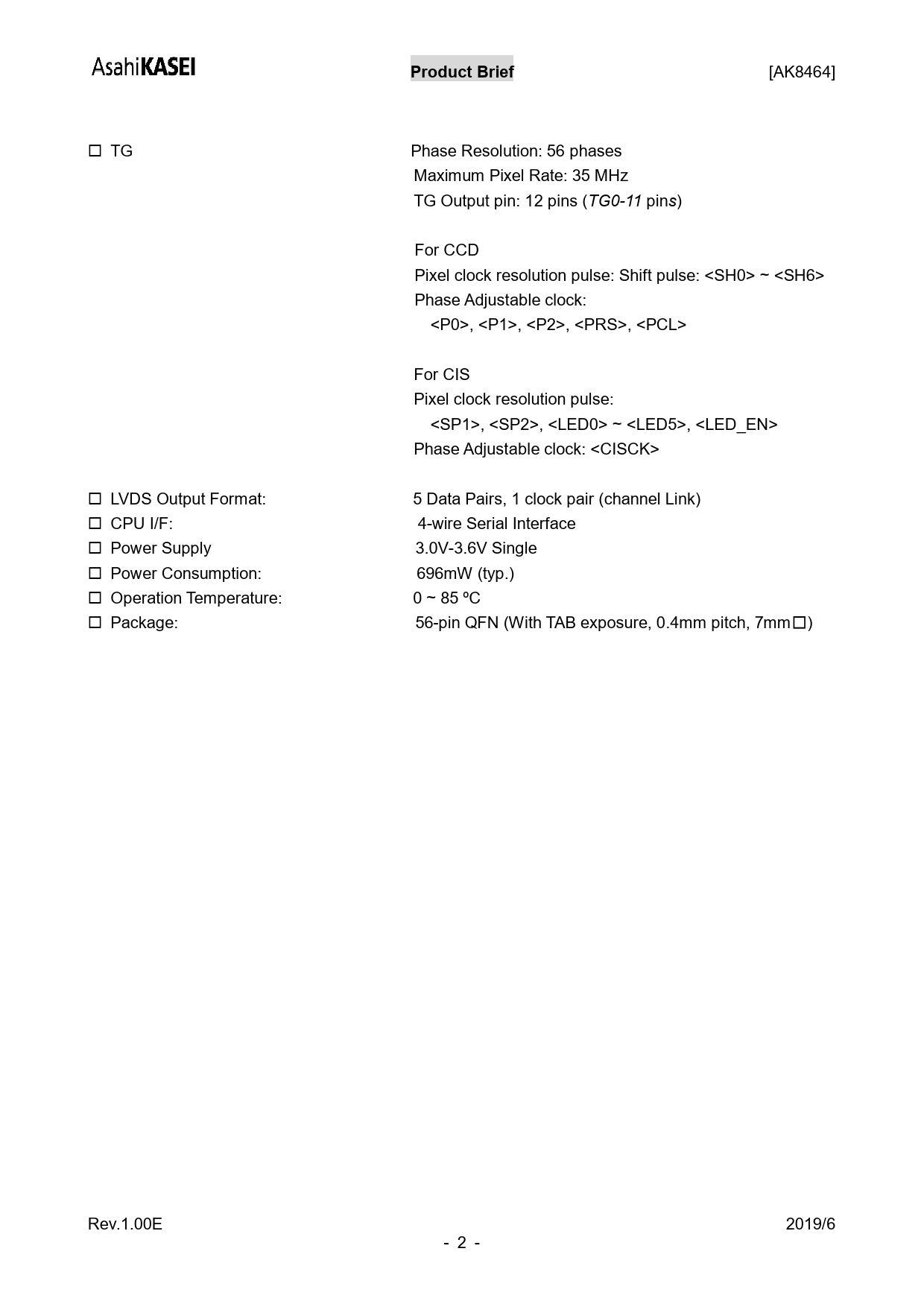

[AK8464] TG Phase Resolution: 56 phases Maximum Pixel Rate: 35 MHz TG Output pin: 12 pins (TG0-11 pins) For CCD Pixel clock resolution pulse: Shift pulse: <SH0> ~ <SH6> Phase Adjustable clock: <P0>, <P1>, <P2>, <PRS>, <PCL> For CIS Pixel clock resolution pulse: <SP1>, <SP2>, <LED0> ~ <LED5>, <LED_EN> Phase Adjustable clock: <CISCK> LVDS Output Format: 5 Data Pairs, 1 clock pair (channel Link) CPU I/F: 4-wire Serial Interface Power Supply 3.0V-3.6V Single Power Consumption: 696mW (typ.) Operation Temperature: 0 ~ 85 ºC Package: 56-pin QFN (With TAB exposure, 0.4mm pitch, 7mm□) Rev.1.00E 2019/6 - 2 -
