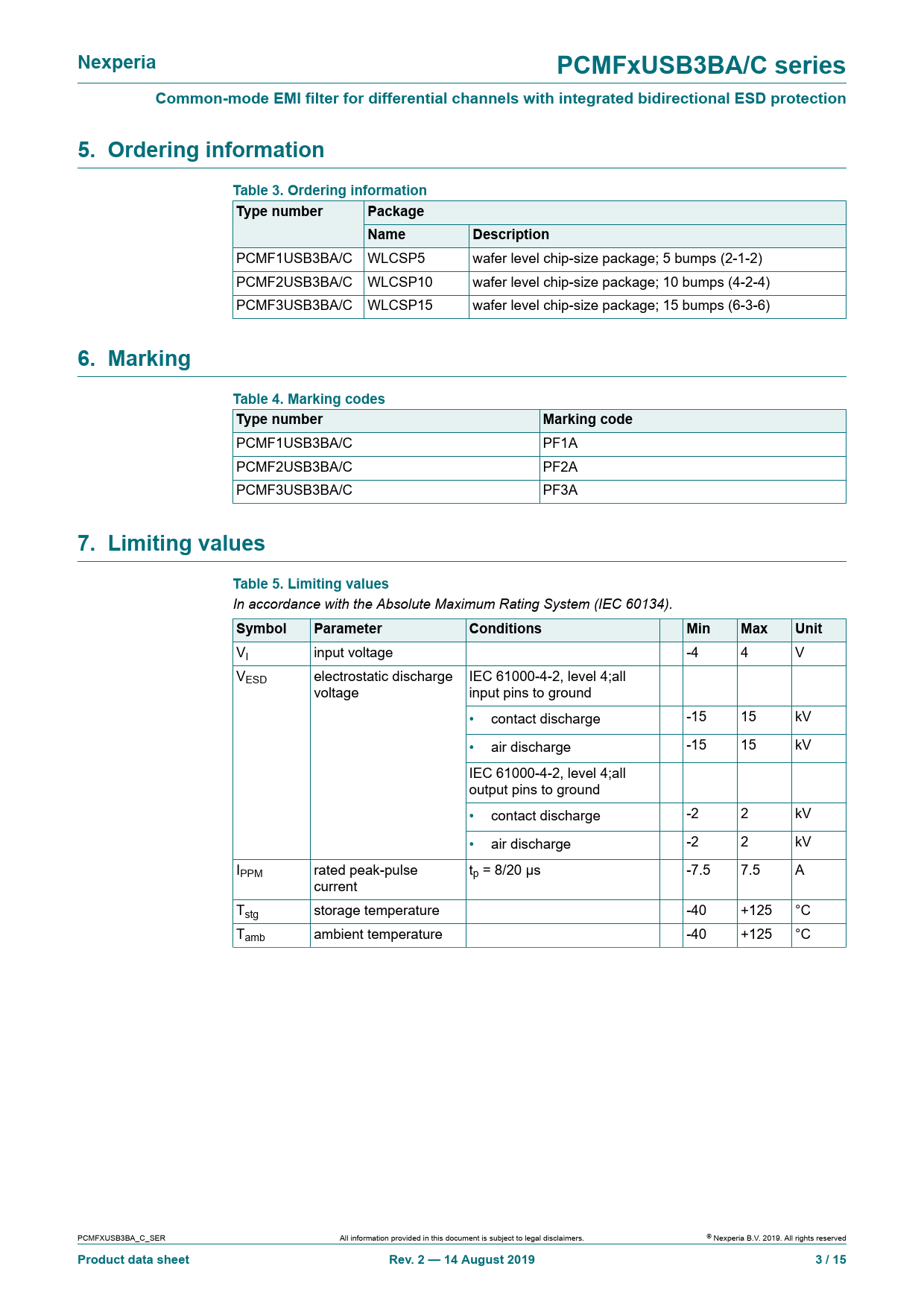

Nexperia PCMFxUSB3BA/C series Common-mode EMI filter for differential channels with integrated bidirectional ESD protection 5. Ordering information Table 3. Ordering information Type number Package Name Description
PCMF1USB3BA/C WLCSP5 wafer level chip-size package; 5 bumps (2-1-2) PCMF2USB3BA/C WLCSP10 wafer level chip-size package; 10 bumps (4-2-4) PCMF3USB3BA/C WLCSP15 wafer level chip-size package; 15 bumps (6-3-6)
6. Marking Table 4. Marking codes Type number Marking code
PCMF1USB3BA/C PF1A PCMF2USB3BA/C PF2A PCMF3USB3BA/C PF3A
7. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VI input voltage -4 4 V VESD electrostatic discharge IEC 61000-4-2, level 4;all voltage input pins to ground • contact discharge -15 15 kV • air discharge -15 15 kV IEC 61000-4-2, level 4;all output pins to ground • contact discharge -2 2 kV • air discharge -2 2 kV IPPM rated peak-pulse tp = 8/20 μs -7.5 7.5 A current Tstg storage temperature -40 +125 °C Tamb ambient temperature -40 +125 °C PCMFXUSB3BA_C_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet Rev. 2 — 14 August 2019 3 / 15
