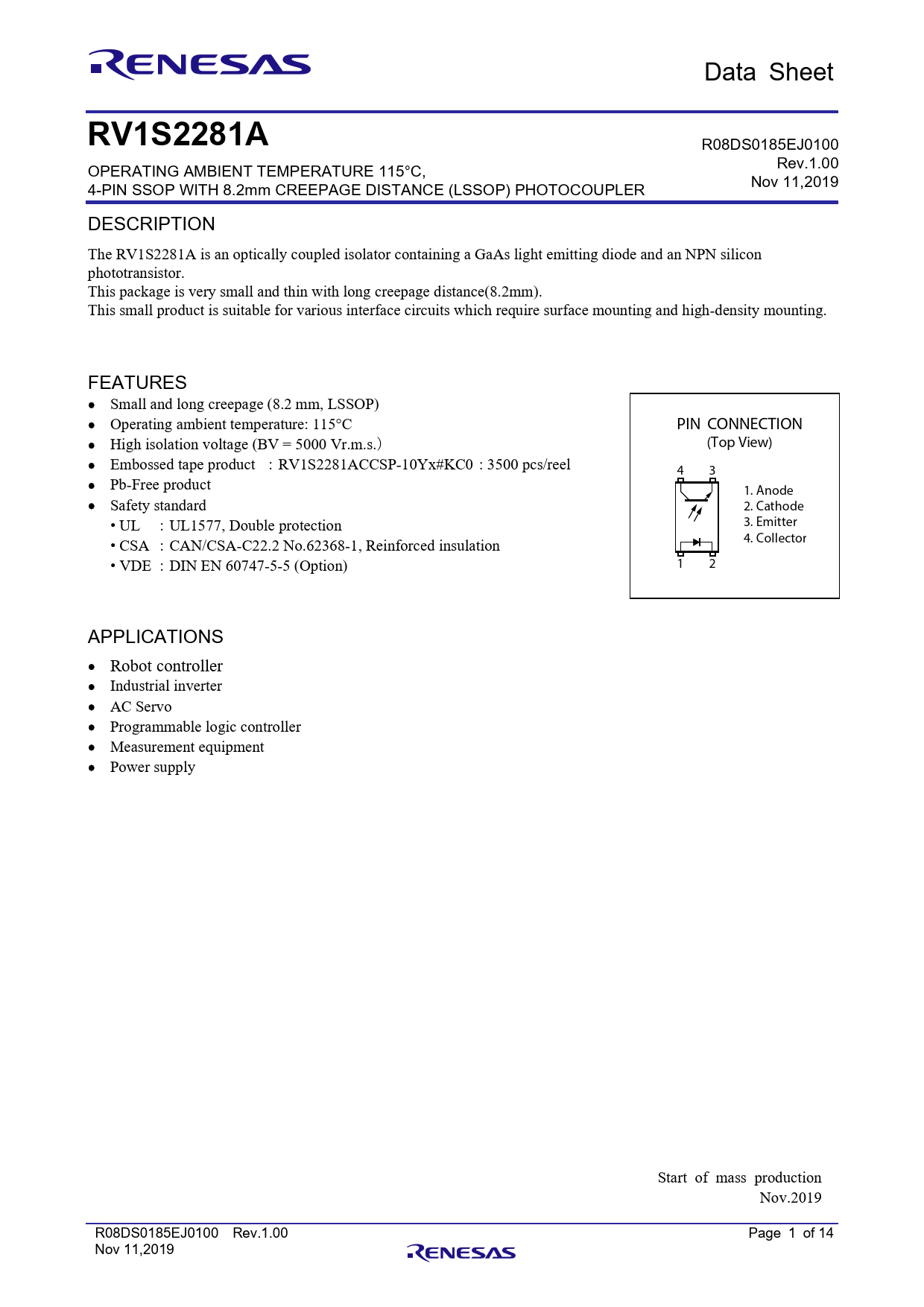

Data Sheet RV1S2281A R08DS0185EJ0100 OPERATING AMBIENT TEMPERATURE 115°C, Rev.1.00 4-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSOP) PHOTOCOUPLER Nov 11,2019 DESCRIPTION The RV1S2281A is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. This package is very small and thin with long creepage distance(8.2mm). This small product is suitable for various interface circuits which require surface mounting and high-density mounting. FEATURES Small and long creepage (8.2 mm, LSSOP) Operating ambient temperature: 115°C PIN CONNECTION High isolation voltage (BV = 5000 Vr.m.s.） (Top View) Embossed tape product ：RV1S2281ACCSP-10Yx#KC0 : 3500 pcs/reel 4 3 Pb-Free product 1. Anode Safety standard 2. Cathode • UL ：UL1577, Double protection 3. Emitter • CSA ：CAN/CSA-C22.2 No.62368-1, Reinforced insulation 4. Collector • VDE ：DIN EN 60747-5-5 (Option) 1 2 APPLICATIONS Robot controller Industrial inverter AC Servo Programmable logic controller Measurement equipment Power supply Start of mass production Nov.2019 R08DS0185EJ0100 Rev.1.00 Page 1 of 14 Nov 11,2019
