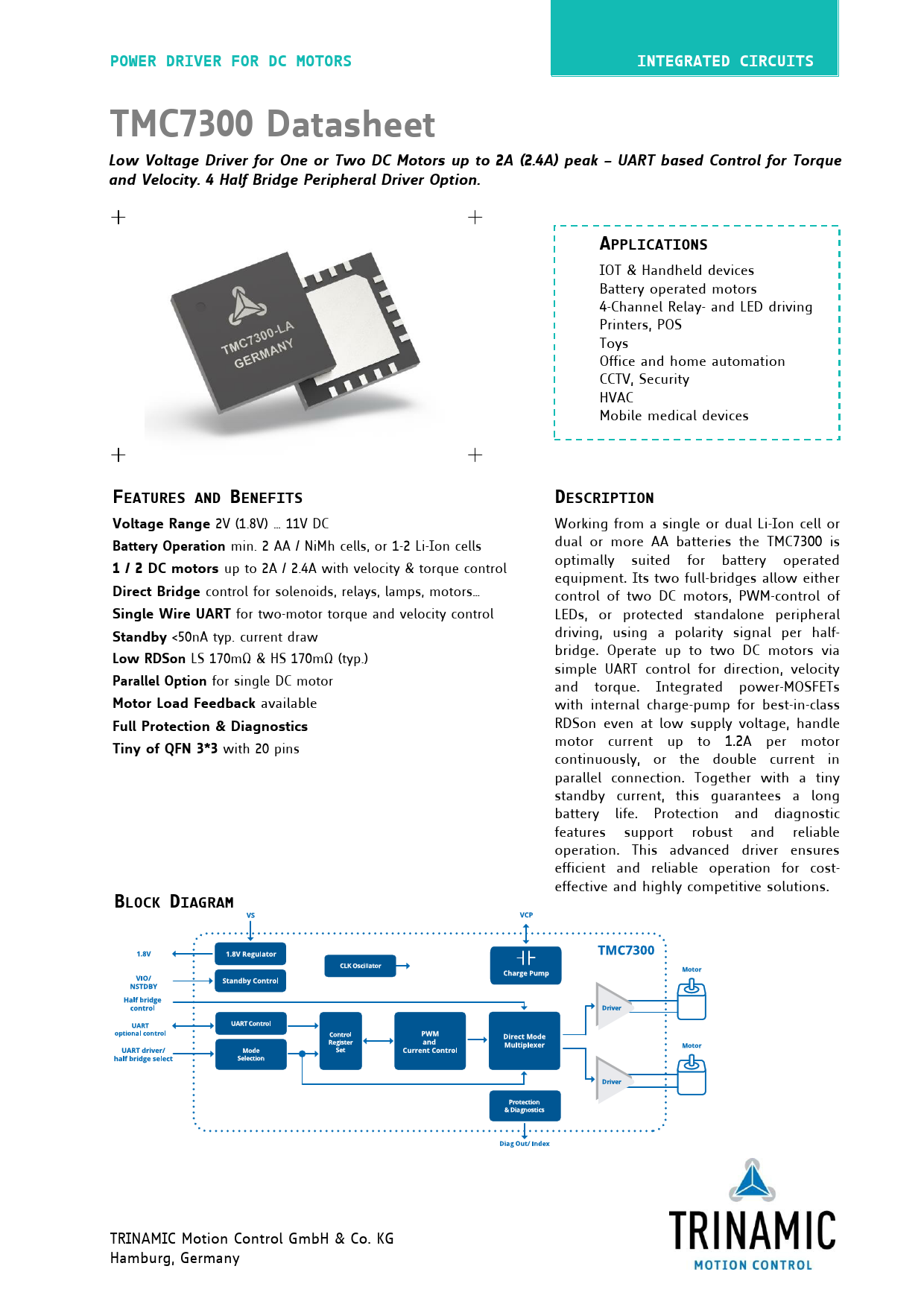

POWER DRIVER FOR DC MOTORS. INTEGRATED CIRCUITS. TMC7300 Datasheet
Model Line for this Datasheet
Text Version of Document
POWER DRIVER FOR DC MOTORS INTEGRATED CIRCUITS TMC7300 Datasheet Low Voltage Driver for One or Two DC Motors up to 2A (2.4A) peak – UART based Control for T orque and Velocity. 4 Half Bridge Peripheral Driver Option. APPLICATIONS
IOT & Handheld devices Battery operated motors 4-Channel Relay- and LED driving Printers, POS Toys Office and home automation CCTV, Security HVAC Mobile medical devices
FEATURES AND BENEFITS DESCRIPTION Voltage Range
2V (1.8V) … 11V DC Working from a single or dual Li-Ion cell or
Battery Operation
min. 2 AA / NiMh cells, or 1-2 Li-Ion cells dual or more AA batteries the TMC7300 is optimally suited for battery operated
1 / 2 DC motors
up to 2A / 2.4A with velocity & torque control equipment. Its two full-bridges allow either
Direct Bridge
control for solenoids, relays, lamps, motors… control of two DC motors, PWM-control of
Single Wire UART
for two-motor torque and velocity control LEDs, or protected standalone peripheral
Standby
<50nA typ. current draw driving, using a polarity signal per half- bridge. Operate up to two DC motors via
Low RDSon
LS 170mΩ & HS 170mΩ (typ.) simple UART control for direction, velocity
Parallel Option
for single DC motor and torque. Integrated power-MOSFETs
Motor Load Feedback
available with internal charge-pump for best-in-class
Full Protection & Diagnostics
RDSon even at low supply voltage, handle
Tiny of QFN 3*3
motor current up to 1.2A per motor with 20 pins continuously, or the double current in parallel connection. Together with a tiny standby current, this guarantees a long battery life. Protection and diagnostic features support robust and reliable operation. This advanced driver ensures efficient and reliable operation for cost- effective and highly competitive solutions.
BLOCK DIAGRAM
