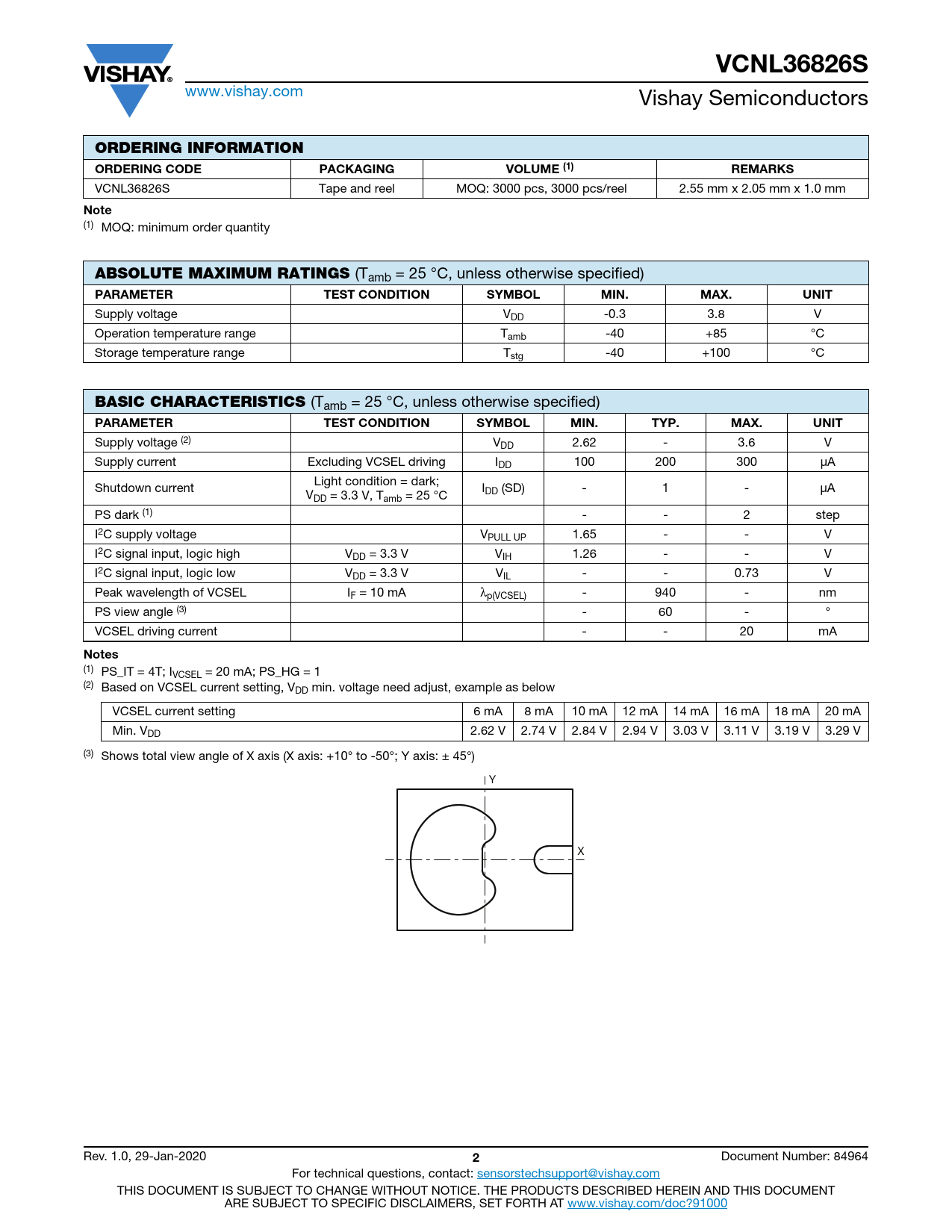

VCNL36826S
www.vishay.com Vishay Semiconductors
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
VCNL36826S Tape and reel MOQ: 3000 pcs, 3000 pcs/reel 2.55 mm x 2.05 mm x 1.0 mm
Note
(1) MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage VDD -0.3 3.8 V Operation temperature range Tamb -40 +85 °C Storage temperature range Tstg -40 +100 °C
BASIC CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Supply voltage (2) VDD 2.62 - 3.6 V Supply current Excluding VCSEL driving IDD 100 200 300 μA Light condition = dark; Shutdown current I V DD (SD) - 1 - μA DD = 3.3 V, Tamb = 25 °C PS dark (1) - - 2 step I2C supply voltage VPULL UP 1.65 - - V I2C signal input, logic high VDD = 3.3 V VIH 1.26 - - V I2C signal input, logic low VDD = 3.3 V VIL - - 0.73 V Peak wavelength of VCSEL IF = 10 mA λp(VCSEL) - 940 - nm PS view angle (3) - 60 - ° VCSEL driving current - - 20 mA
Notes
(1) PS_IT = 4T; IVCSEL = 20 mA; PS_HG = 1 (2) Based on VCSEL current setting, VDD min. voltage need adjust, example as below VCSEL current setting 6 mA 8 mA 10 mA 12 mA 14 mA 16 mA 18 mA 20 mA Min. VDD 2.62 V 2.74 V 2.84 V 2.94 V 3.03 V 3.11 V 3.19 V 3.29 V (3) Shows total view angle of X axis (X axis: +10° to -50°; Y axis: ± 45°) Y X Rev. 1.0, 29-Jan-2020
