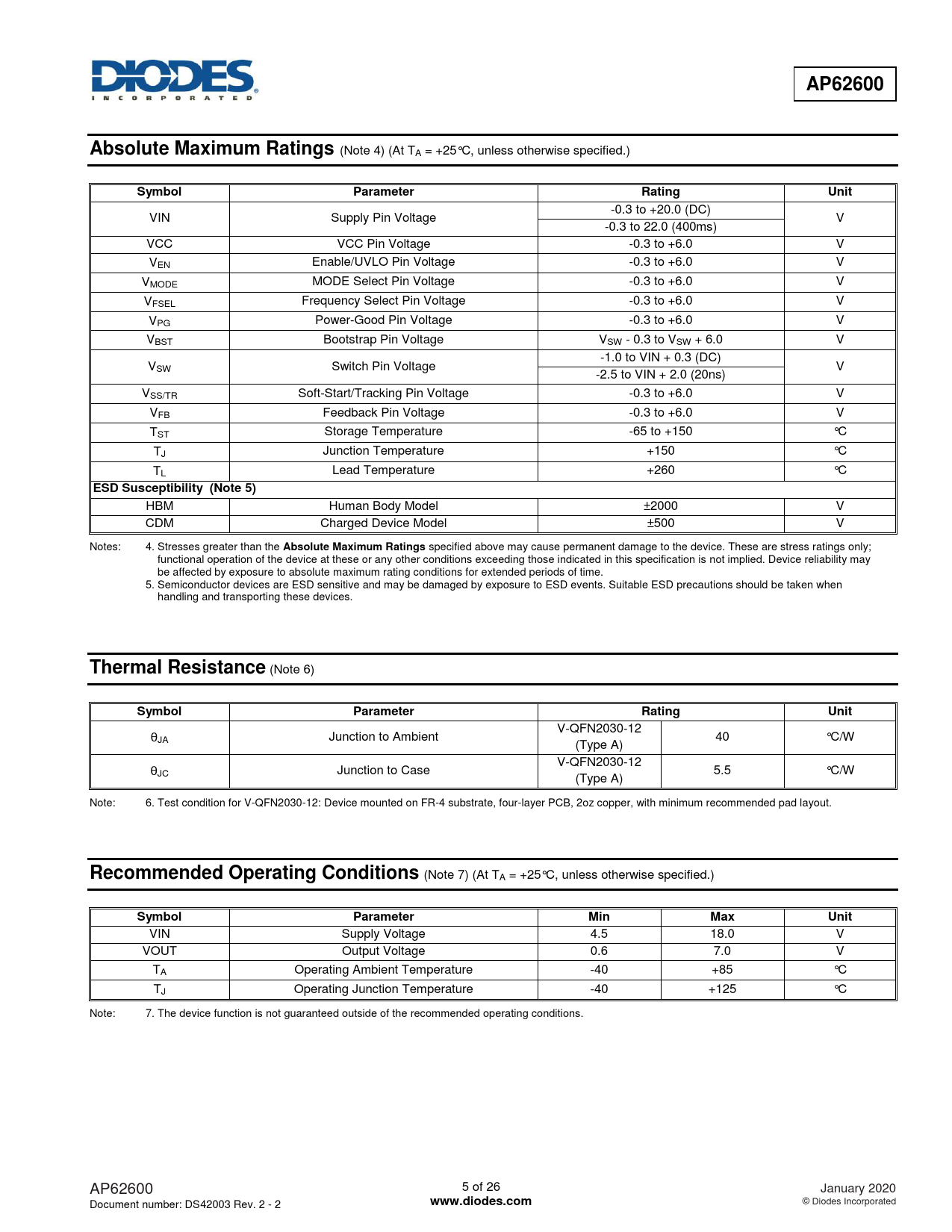

AP62600 Absolute Maximum Ratings
(Note 4) (At TA = +25°C, unless otherwise specified.)
Symbol Parameter Rating Unit
-0.3 to +20.0 (DC) VIN Supply Pin Voltage V -0.3 to 22.0 (400ms) VCC VCC Pin Voltage -0.3 to +6.0 V VEN Enable/UVLO Pin Voltage -0.3 to +6.0 V VMODE MODE Select Pin Voltage -0.3 to +6.0 V VFSEL Frequency Select Pin Voltage -0.3 to +6.0 V VPG Power-Good Pin Voltage -0.3 to +6.0 V VBST Bootstrap Pin Voltage VSW - 0.3 to VSW + 6.0 V -1.0 to VIN + 0.3 (DC) VSW Switch Pin Voltage V -2.5 to VIN + 2.0 (20ns) VSS/TR Soft-Start/Tracking Pin Voltage -0.3 to +6.0 V VFB Feedback Pin Voltage -0.3 to +6.0 V TST Storage Temperature -65 to +150 °C TJ Junction Temperature +150 °C TL Lead Temperature +260 °C
ESD Susceptibility (Note 5)
HBM Human Body Model ±2000 V CDM Charged Device Model ±500 V Notes: 4. Stresses greater than the
Absolute Maximum Ratings
specified above may cause permanent damage to the device. These are stress ratings only; functional operation of the device at these or any other conditions exceeding those indicated in this specification is not implied. Device reliability may be affected by exposure to absolute maximum rating conditions for extended periods of time. 5. Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling and transporting these devices.
Thermal Resistance
(Note 6)
Symbol Parameter Rating Unit
V-QFN2030-12 θJA Junction to Ambient 40 °C/W (Type A) V-QFN2030-12 θJC Junction to Case 5.5 °C/W (Type A) Note: 6. Test condition for V-QFN2030-12: Device mounted on FR-4 substrate, four-layer PCB, 2oz copper, with minimum recommended pad layout.
Recommended Operating Conditions
(Note 7) (At TA = +25°C, unless otherwise specified.)
Symbol Parameter Min Max Unit
VIN Supply Voltage 4.5 18.0 V VOUT Output Voltage 0.6 7.0 V TA Operating Ambient Temperature -40 +85 °C TJ Operating Junction Temperature -40 +125 °C Note: 7. The device function is not guaranteed outside of the recommended operating conditions. AP62600 5 of 26 January 2020 Document number: DS42003 Rev. 2 - 2
