| Description | 4.5V To 18V Input, 6A Synchronous Buck Converter |
| Pages / Page | 26 / 8 — AP62600. Typical Performance Characteristics. VEN (5V/div). VOUT … |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |

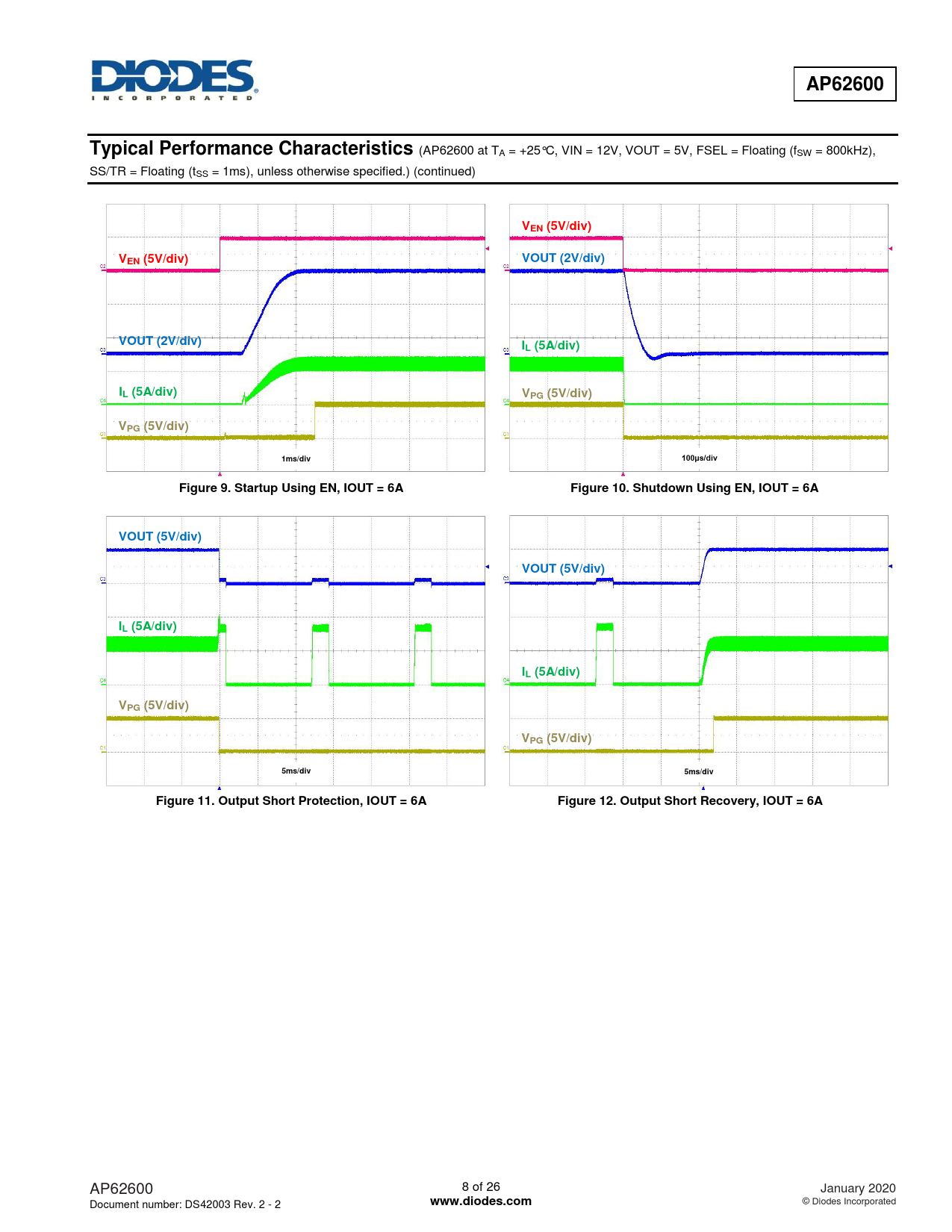

AP62600. Typical Performance Characteristics. VEN (5V/div). VOUT (2V/div). IL (5A/div). VPG (5V/div). 1ms/div. 100μs/div
Model Line for this Datasheet
Text Version of Document
AP62600 Typical Performance Characteristics
(AP62600 at TA = +25°C, VIN = 12V, VOUT = 5V, FSEL = Floating (fSW = 800kHz), SS/TR = Floating (tSS = 1ms), unless otherwise specified.) (continued)
VEN (5V/div) VEN (5V/div) VOUT (2V/div) VOUT (2V/div) IL (5A/div) IL (5A/div) VPG (5V/div) VPG (5V/div) 1ms/div 100μs/div Figure 9. Startup Using EN, IOUT = 6A Figure 10. Shutdown Using EN, IOUT = 6A VOUT (5V/div) VOUT (5V/div) IL (5A/div) IL (5A/div) VPG (5V/div) VPG (5V/div) 5ms/div 5ms/div Figure 11. Output Short Protection, IOUT = 6A Figure 12. Output Short Recovery, IOUT = 6A
