Datasheet AD1938 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 4 ADC/8 DAC with PLL, 192 kHz, 24-Bit CODEC |
| Pages / Page | 32 / 6 — AD1938. Data Sheet. DIGITAL FILTERS Table 6. Parameter. Mode. Factor. … |
| Revision | E |
| File Format / Size | PDF / 477 Kb |
| Document Language | English |

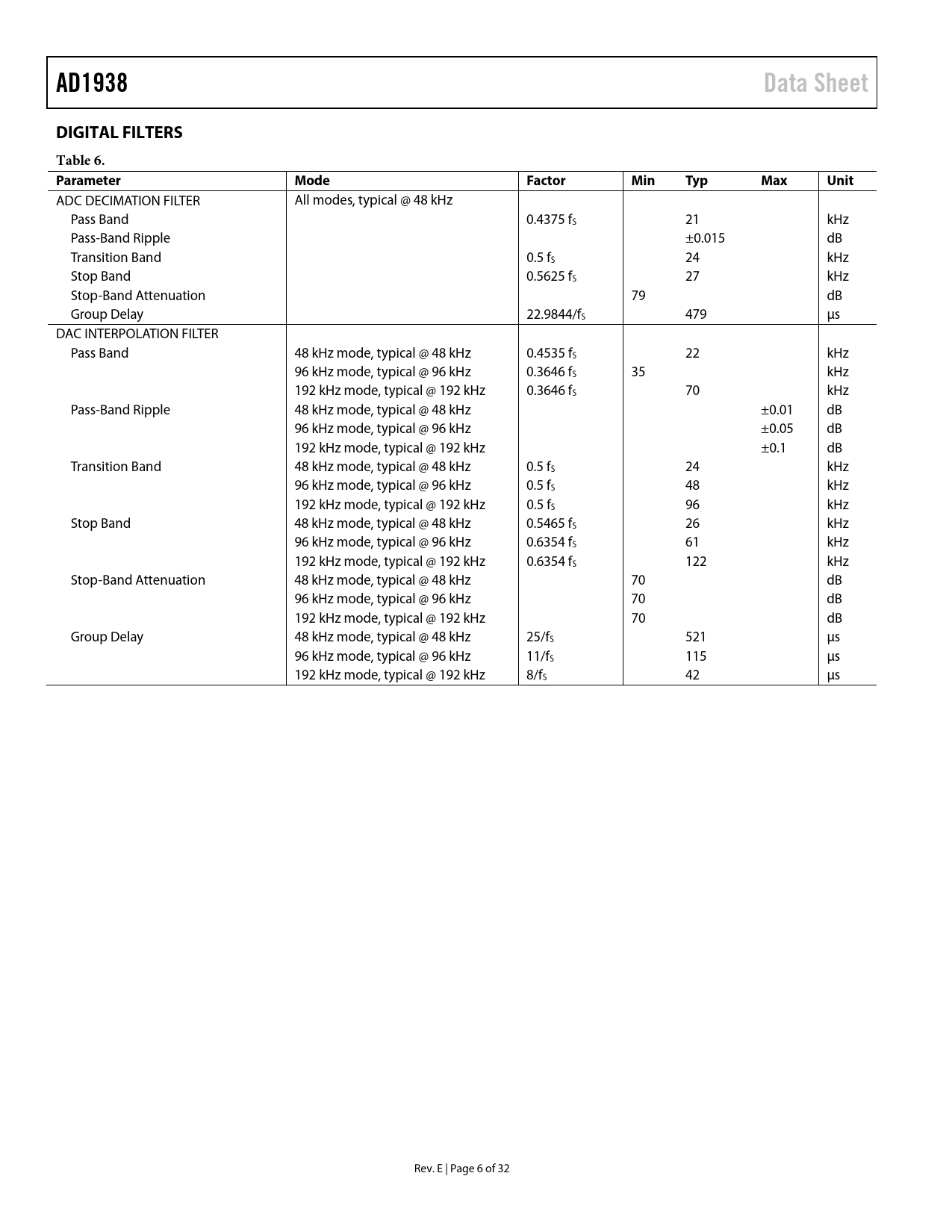

AD1938. Data Sheet. DIGITAL FILTERS Table 6. Parameter. Mode. Factor. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
AD1938 Data Sheet DIGITAL FILTERS Table 6. Parameter Mode Factor Min Typ Max Unit
ADC DECIMATION FILTER All modes, typical @ 48 kHz Pass Band 0.4375 fS 21 kHz Pass-Band Ripple ±0.015 dB Transition Band 0.5 fS 24 kHz Stop Band 0.5625 fS 27 kHz Stop-Band Attenuation 79 dB Group Delay 22.9844/fS 479 µs DAC INTERPOLATION FILTER Pass Band 48 kHz mode, typical @ 48 kHz 0.4535 fS 22 kHz 96 kHz mode, typical @ 96 kHz 0.3646 fS 35 kHz 192 kHz mode, typical @ 192 kHz 0.3646 fS 70 kHz Pass-Band Ripple 48 kHz mode, typical @ 48 kHz ±0.01 dB 96 kHz mode, typical @ 96 kHz ±0.05 dB 192 kHz mode, typical @ 192 kHz ±0.1 dB Transition Band 48 kHz mode, typical @ 48 kHz 0.5 fS 24 kHz 96 kHz mode, typical @ 96 kHz 0.5 fS 48 kHz 192 kHz mode, typical @ 192 kHz 0.5 fS 96 kHz Stop Band 48 kHz mode, typical @ 48 kHz 0.5465 fS 26 kHz 96 kHz mode, typical @ 96 kHz 0.6354 fS 61 kHz 192 kHz mode, typical @ 192 kHz 0.6354 fS 122 kHz Stop-Band Attenuation 48 kHz mode, typical @ 48 kHz 70 dB 96 kHz mode, typical @ 96 kHz 70 dB 192 kHz mode, typical @ 192 kHz 70 dB Group Delay 48 kHz mode, typical @ 48 kHz 25/fS 521 µs 96 kHz mode, typical @ 96 kHz 11/fS 115 µs 192 kHz mode, typical @ 192 kHz 8/fS 42 µs Rev. E | Page 6 of 32 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Test Conditions Analog Performance Specifications Crystal Oscillator Specifications Digital Input/Output Specifications Power Supply Specifications Digital Filters Timing Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Analog-to-Digital Converters (ADCs) Digital-to-Analog Converters (DACs) Clock Signals Reset and Power-Down Serial Control Port Power Supply and Voltage Reference Serial Data Ports—Data Format Time-Division Multiplexed (TDM) Modes Daisy-Chain Mode Control Registers Definitions PLL and Clock Control Registers DAC Control Registers ADC Control Registers Additional Modes Applications Circuits Outline Dimensions Ordering Guide Automotive Products
ADC DECIMATION FILTER All modes, typical @ 48 kHz Pass Band 0.4375 fS 21 kHz Pass-Band Ripple ±0.015 dB Transition Band 0.5 fS 24 kHz Stop Band 0.5625 fS 27 kHz Stop-Band Attenuation 79 dB Group Delay 22.9844/fS 479 µs DAC INTERPOLATION FILTER Pass Band 48 kHz mode, typical @ 48 kHz 0.4535 fS 22 kHz 96 kHz mode, typical @ 96 kHz 0.3646 fS 35 kHz 192 kHz mode, typical @ 192 kHz 0.3646 fS 70 kHz Pass-Band Ripple 48 kHz mode, typical @ 48 kHz ±0.01 dB 96 kHz mode, typical @ 96 kHz ±0.05 dB 192 kHz mode, typical @ 192 kHz ±0.1 dB Transition Band 48 kHz mode, typical @ 48 kHz 0.5 fS 24 kHz 96 kHz mode, typical @ 96 kHz 0.5 fS 48 kHz 192 kHz mode, typical @ 192 kHz 0.5 fS 96 kHz Stop Band 48 kHz mode, typical @ 48 kHz 0.5465 fS 26 kHz 96 kHz mode, typical @ 96 kHz 0.6354 fS 61 kHz 192 kHz mode, typical @ 192 kHz 0.6354 fS 122 kHz Stop-Band Attenuation 48 kHz mode, typical @ 48 kHz 70 dB 96 kHz mode, typical @ 96 kHz 70 dB 192 kHz mode, typical @ 192 kHz 70 dB Group Delay 48 kHz mode, typical @ 48 kHz 25/fS 521 µs 96 kHz mode, typical @ 96 kHz 11/fS 115 µs 192 kHz mode, typical @ 192 kHz 8/fS 42 µs Rev. E | Page 6 of 32 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Test Conditions Analog Performance Specifications Crystal Oscillator Specifications Digital Input/Output Specifications Power Supply Specifications Digital Filters Timing Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Analog-to-Digital Converters (ADCs) Digital-to-Analog Converters (DACs) Clock Signals Reset and Power-Down Serial Control Port Power Supply and Voltage Reference Serial Data Ports—Data Format Time-Division Multiplexed (TDM) Modes Daisy-Chain Mode Control Registers Definitions PLL and Clock Control Registers DAC Control Registers ADC Control Registers Additional Modes Applications Circuits Outline Dimensions Ordering Guide Automotive Products
