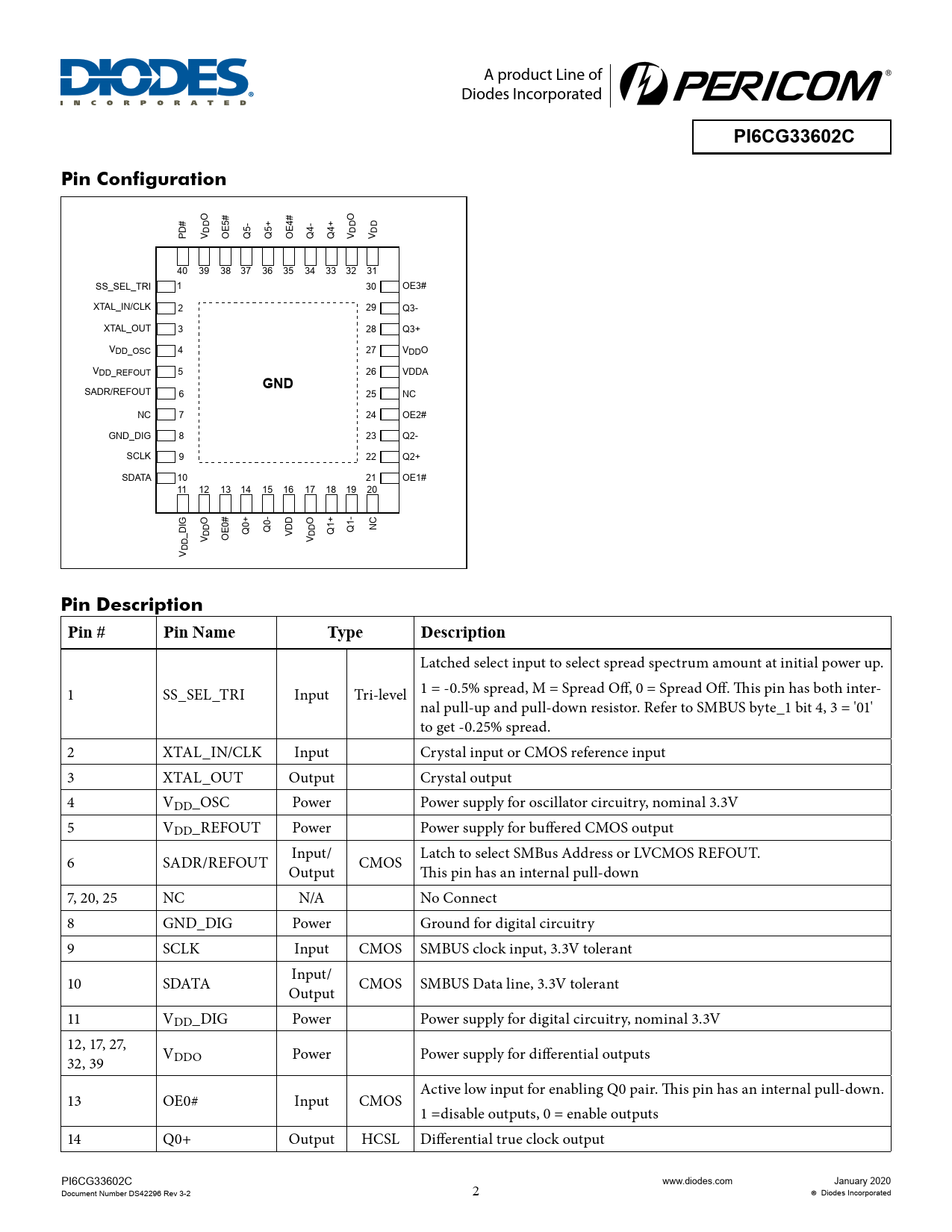

PI6CG33602C Pin Configuration
O O PD# V DD OE5# Q5- Q5+ OE4# Q4- Q4+ V DD V DD 40 39 38 37 36 35 34 33 32 31 SS_SEL_TRI 1 30 OE3# XTAL_IN/CLK 2 29 Q3- XTAL_OUT 3 28 Q3+ VDD_OSC 4 27 VDDO VDD_REFOUT 5 26 VDDA
GND
SADR/REFOUT 6 25 NC NC 7 24 OE2# GND_DIG 8 23 Q2- SCLK 9 22 Q2+ SDATA 10 21 OE1# 11 12 13 14 15 16 17 18 19 20 O O Q0+ Q0- Q1+ NC _DIG V DD OE0# VDD Q1- V DD V DD
Pin Description Pin # Pin Name Type Description
Latched select input to select spread spectrum amount at initial power up. 1 SS_SEL_TRI Input Tri-level 1 = -0.5% spread, M = Spread Off, 0 = Spread Off. This pin has both inter- nal pull-up and pull-down resistor. Refer to SMBUS byte_1 bit 4, 3 = '01' to get -0.25% spread. 2 XTAL_IN/CLK Input Crystal input or CMOS reference input 3 XTAL_OUT Output Crystal output 4 VDD_OSC Power Power supply for oscillator circuitry, nominal 3.3V 5 VDD_REFOUT Power Power supply for buffered CMOS output 6 SADR/REFOUT Input/ Output CMOS Latch to select SMBus Address or LVCMOS REFOUT. This pin has an internal pull-down 7, 20, 25 NC N/A No Connect 8 GND_DIG Power Ground for digital circuitry 9 SCLK Input CMOS SMBUS clock input, 3.3V tolerant 10 SDATA Input/ Output CMOS SMBUS Data line, 3.3V tolerant 11 VDD_DIG Power Power supply for digital circuitry, nominal 3.3V 12, 17, 27, 32, 39 VDDO Power Power supply for differential outputs Active low input for enabling Q0 pair. This pin has an internal pull-down. 13 OE0# Input CMOS 1 =disable outputs, 0 = enable outputs 14 Q0+ Output HCSL Differential true clock output PI6CG33602C www.diodes.com January 2020 Document Number DS42296 Rev 3-2 2 Diodes Incorporated
