TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C, operating per Table 1,unless otherwise. noted. Efficiency, VOUT = 1V
Model Line for this Datasheet
Text Version of Document
LTM8024

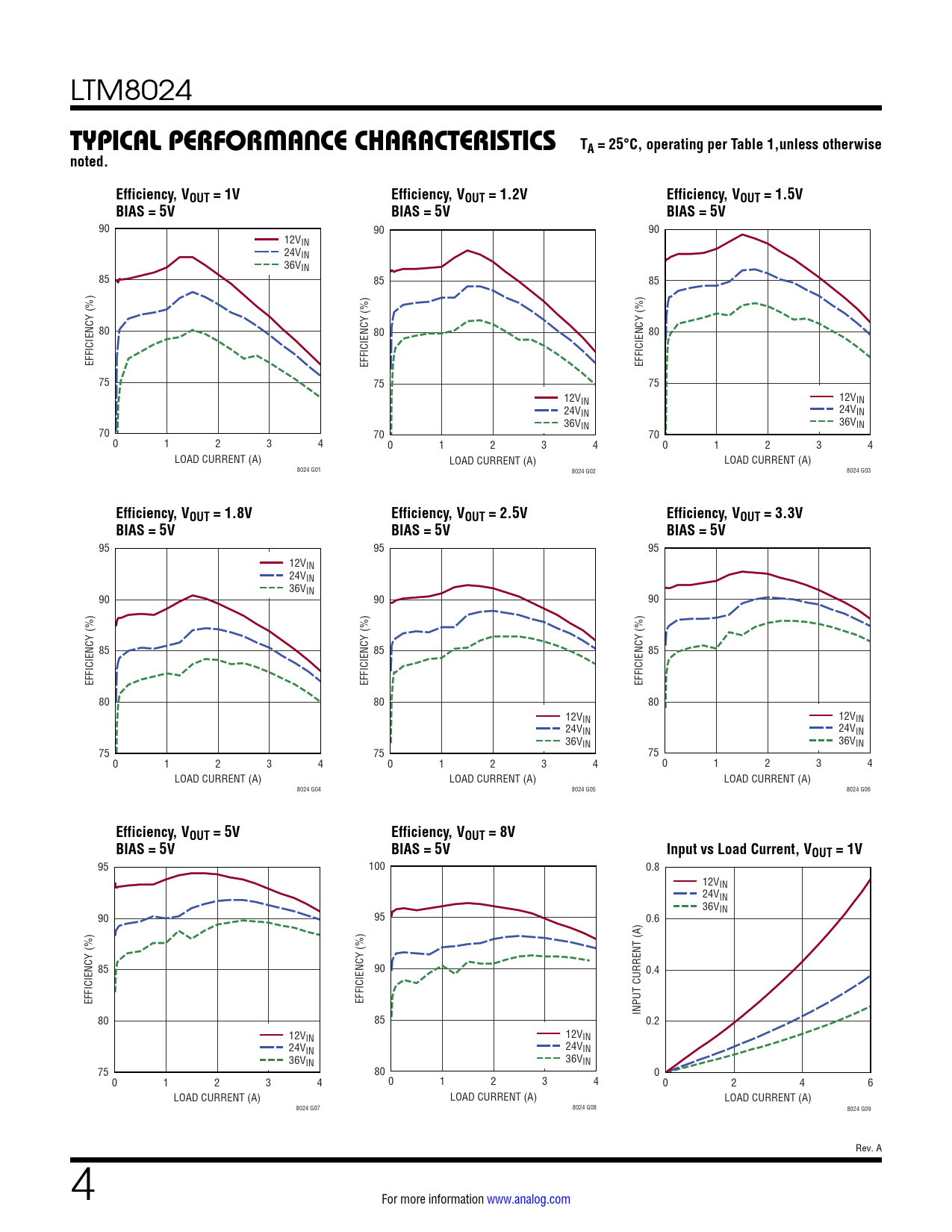

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, operating per Table 1,unless otherwise noted. Efficiency, VOUT = 1V Efficiency, VOUT = 1.2V Efficiency, VOUT = 1.5V BIAS = 5V BIAS = 5V BIAS = 5V
90 90 90 12VIN 24VIN 36VIN 85 85 85 80 80 80 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 75 75 75 12VIN 12VIN 24VIN 24VIN 36VIN 36VIN 70 70 70 0 1 2 3 4 0 1 2 3 4 0 1 2 3 4 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8024 G01 8024 G02 8024 G03
Efficiency, VOUT = 1.8V Efficiency, VOUT = 2.5V Efficiency, VOUT = 3.3V BIAS = 5V BIAS = 5V BIAS = 5V
95 95 95 12VIN 24VIN 36VIN 90 90 90 85 85 85 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 80 80 80 12VIN 12VIN 24VIN 24VIN 36VIN 36VIN 75 75 75 0 1 2 3 4 0 1 2 3 4 0 1 2 3 4 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8024 G04 8024 G05 8024 G06
Efficiency, VOUT = 5V Efficiency, VOUT = 8V BIAS = 5V BIAS = 5V Input vs Load Current, VOUT = 1V
95 100 0.8 12VIN 24VIN 36VIN 90 95 0.6 85 90 0.4 EFFICIENCY (%) EFFICIENCY (%) INPUT CURRENT (A) 80 85 0.2 12VIN 12VIN 24VIN 24VIN 36VIN 36VIN 75 80 0 0 1 2 3 4 0 1 2 3 4 0 2 4 6 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8024 G07 8024 G08 8024 G09 Rev. A 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package PHOTOGRAPH Revision History Typical Application Related Parts
