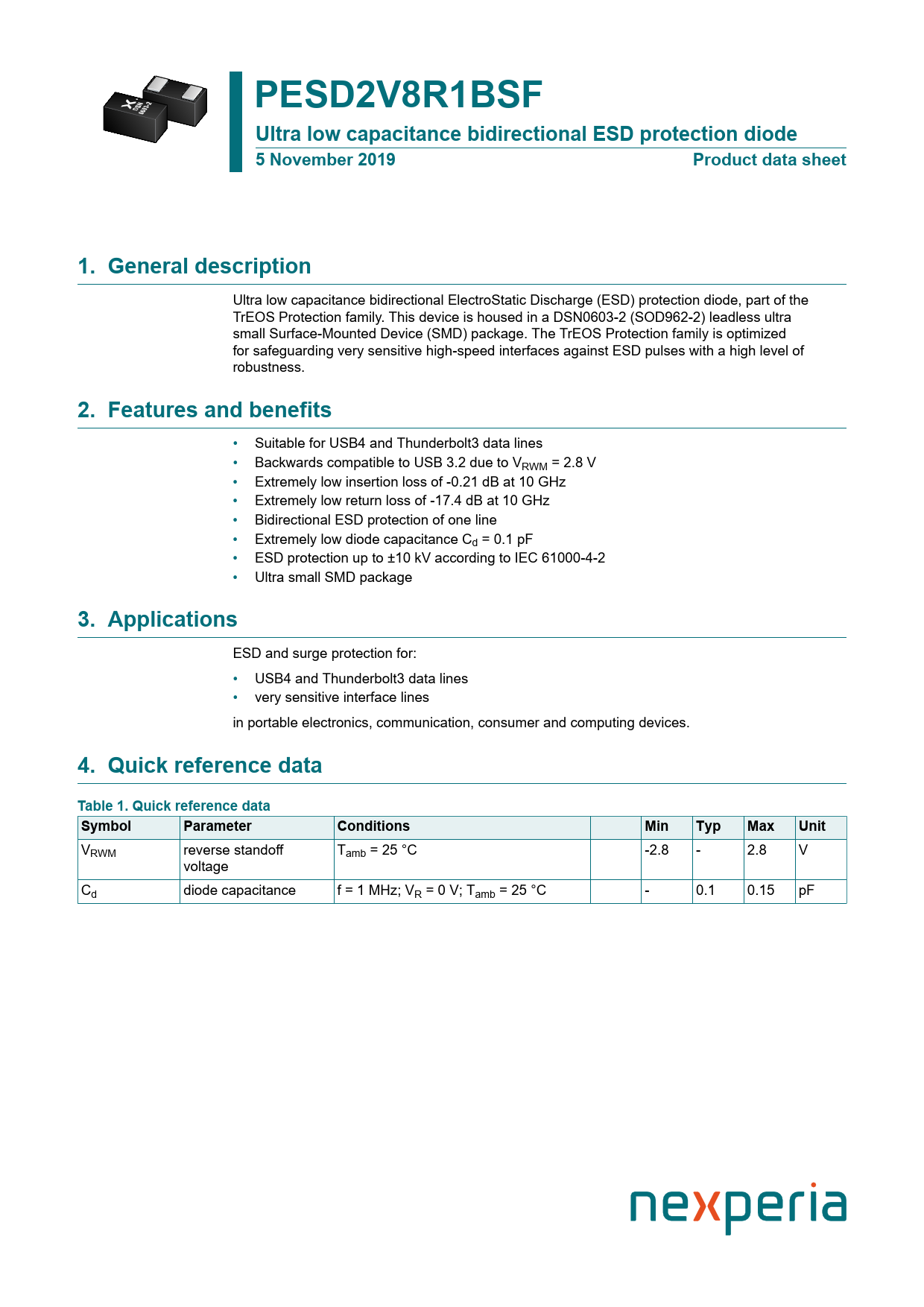

PESD2V8R1BSF. Ultra low capacitance bidirectional ESD protection diode. 5 November 2019. Product data sheet
Model Line for this Datasheet
Text Version of Document
PESD2V8R1BSF Ultra low capacitance bidirectional ESD protection diode 5 November 2019 Product data sheet 1. General description
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a DSN0603-2 (SOD962-2) leadless ultra small Surface-Mounted Device (SMD) package. The TrEOS Protection family is optimized for safeguarding very sensitive high-speed interfaces against ESD pulses with a high level of robustness.
2. Features and benefits
• Suitable for USB4 and Thunderbolt3 data lines • Backwards compatible to USB 3.2 due to VRWM = 2.8 V • Extremely low insertion loss of -0.21 dB at 10 GHz • Extremely low return loss of -17.4 dB at 10 GHz • Bidirectional ESD protection of one line • Extremely low diode capacitance Cd = 0.1 pF • ESD protection up to ±10 kV according to IEC 61000-4-2 • Ultra small SMD package
3. Applications
ESD and surge protection for: • USB4 and Thunderbolt3 data lines • very sensitive interface lines in portable electronics, communication, consumer and computing devices.
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VRWM reverse standoff Tamb = 25 °C -2.8 - 2.8 V voltage Cd diode capacitance f = 1 MHz; VR = 0 V; Tamb = 25 °C - 0.1 0.15 pF Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Characteristics 10. Application information 11. Package outline 12. Soldering 13. Revision history 14. Legal information Contents
