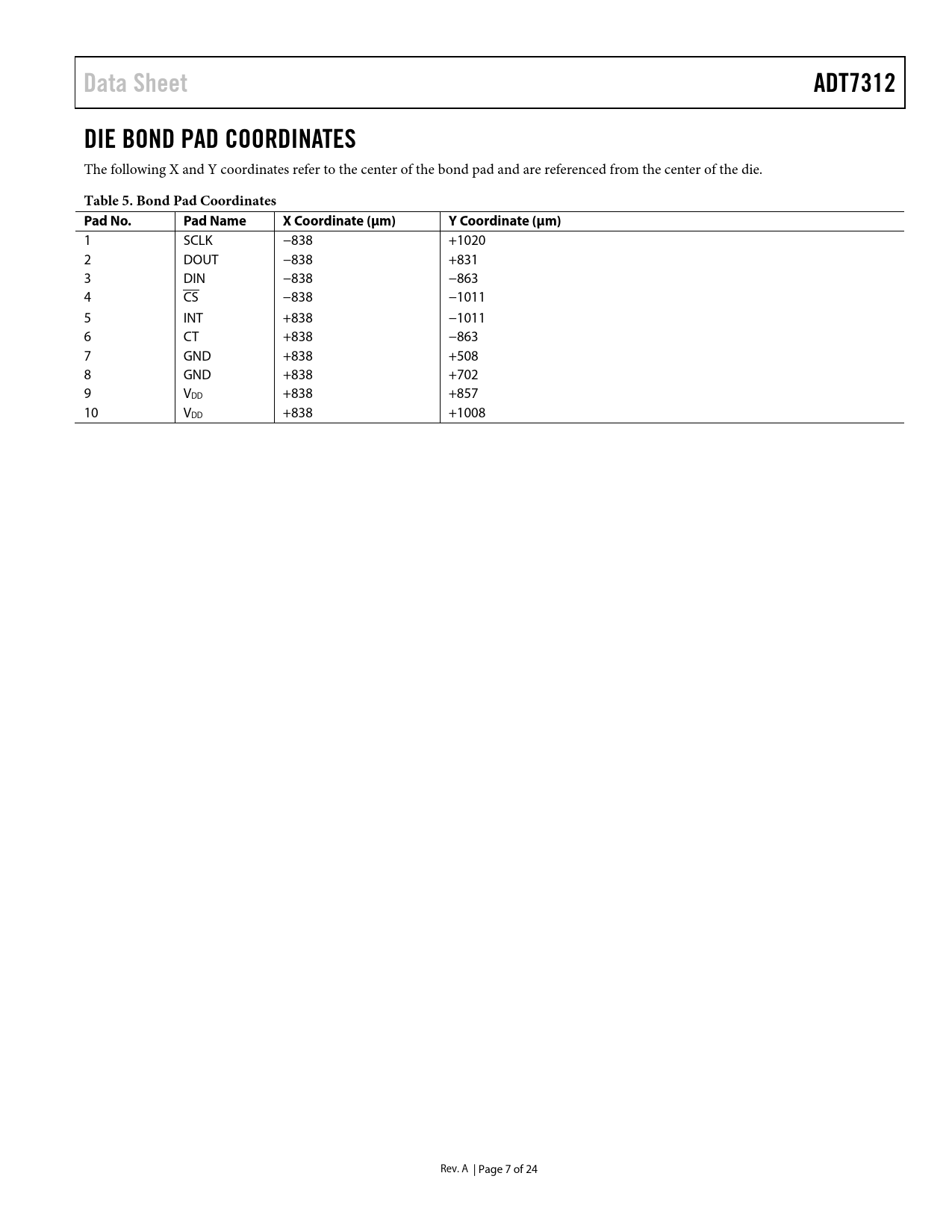

Data Sheet. ADT7312. DIE BOND PAD COORDINATES. Table 5. Bond Pad Coordinates Pad No. Pad Name. X Coordinate (µm). Y Coordinate (µm)
Model Line for this Datasheet
Text Version of Document
Data Sheet ADT7312 DIE BOND PAD COORDINATES
The following X and Y coordinates refer to the center of the bond pad and are referenced from the center of the die.
Table 5. Bond Pad Coordinates Pad No. Pad Name X Coordinate (µm) Y Coordinate (µm)
