Datasheet ADT7302 (Analog Devices) - 6

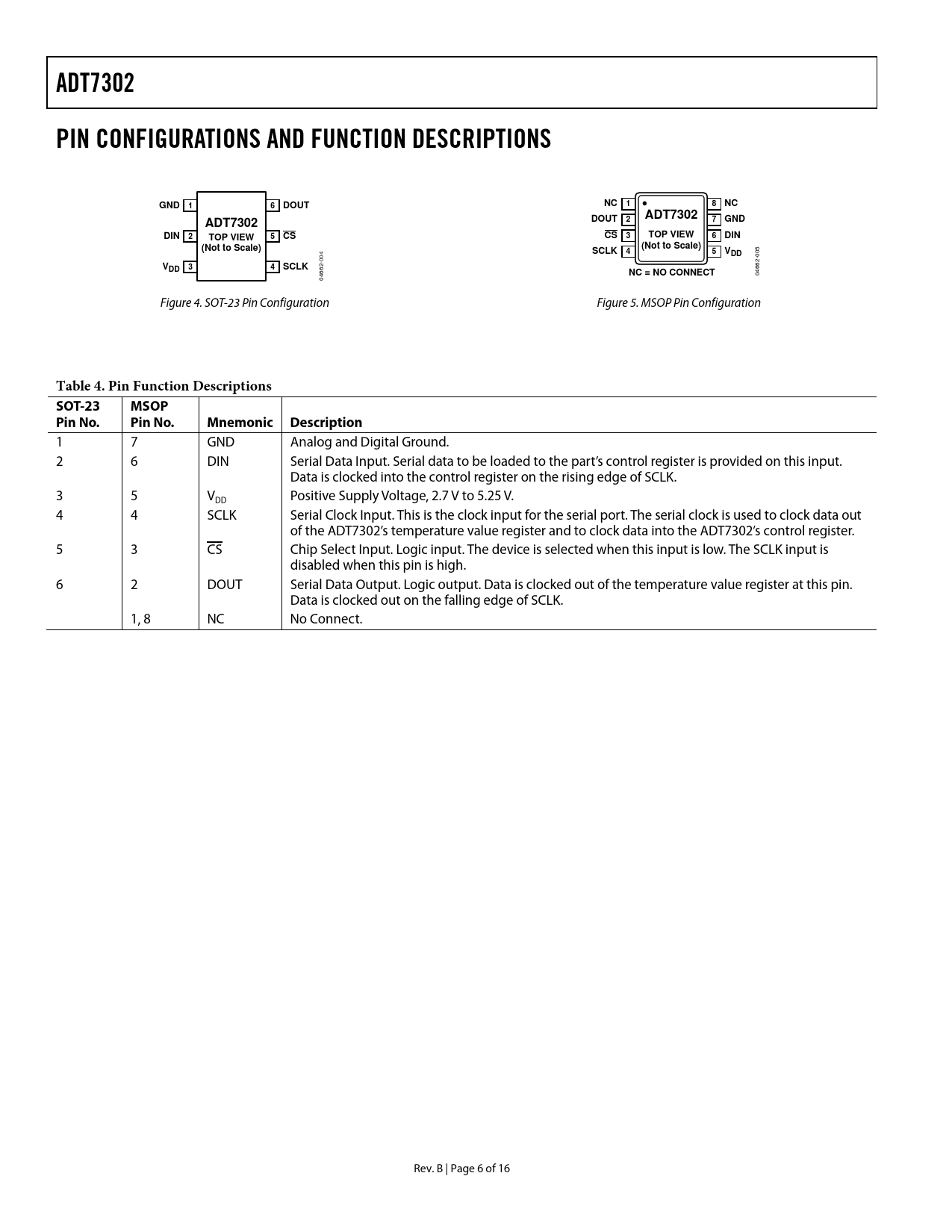

ADT7302 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS GND 1 6 DOUT NC 1 8 NC ADT7302 ADT7302 DOUT 2 7 GND DIN 2 5 TOP VIEW CS CS 3 TOP VIEW 6 DIN (Not to Scale) (Not to Scale) SCLK 4 5 VDD
-005 -004
VDD 3 4 SCLK NC = NO CONNECT
04662 04662 Figure 4. SOT-23 Pin Configuration Figure 5. MSOP Pin Configuration
Table 4. Pin Function Descriptions SOT-23 MSOP Pin No. Pin No. Mnemonic Description
1 7 GND Analog and Digital Ground. 2 6 DIN Serial Data Input. Serial data to be loaded to the part’s control register is provided on this input. Data is clocked into the control register on the rising edge of SCLK. 3 5 V Positive Supply Voltage, 2.7 V to 5.25 V. DD 4 4 SCLK Serial Clock Input. This is the clock input for the serial port. The serial clock is used to clock data out of the ADT7302’s temperature value register and to clock data into the ADT7302’s control register. 5 3 CS Chip Select Input. Logic input. The device is selected when this input is low. The SCLK input is disabled when this pin is high. 6 2 DOUT Serial Data Output. Logic output. Data is clocked out of the temperature value register at this pin. Data is clocked out on the falling edge of SCLK. 1, 8 NC No Connect. Rev. B | Page 6 of 16 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Timing Characteristics Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Converter Details Temperature Value Register Temperature Conversion Equations Serial Interface Read Operation Write Operation Applications Information Microprocessor Interfacing ADT7302 to MC68HC11 Interface ADT7302 to 8051 Interface ADT7302 to PIC16C6x/7x and PIC16F873 Interface ADT7302 to ADSP-21xx Interface Mounting the ADT7302 Supply Decoupling Outline Dimensions Ordering Guide
