Datasheet LT3755, LT3755-1, LT3755-2 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 40VIN, 75VOUT LED Controllers |
| Pages / Page | 28 / 5 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| Revision | E |
| File Format / Size | PDF / 509 Kb |
| Document Language | English |

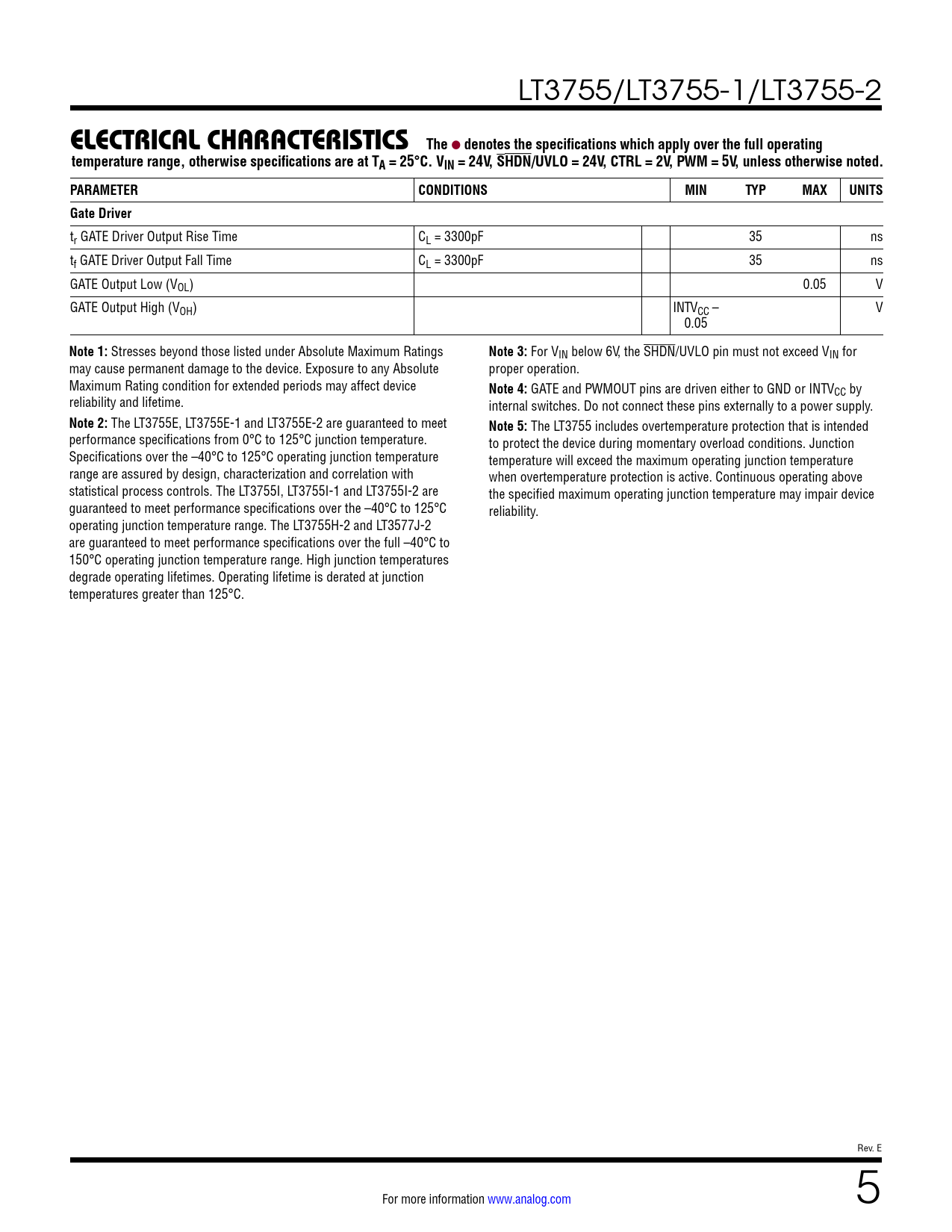

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT3755EMSE#PBF LT3755EMSE#TRPBF LT3755EMSE#WPBF LT3755EMSE#WTRPBF LT3755EMSE-1#PBF LT3755EMSE-1#TRPBF LT3755EMSE-1#WPBF LT3755EMSE-1#WTRPBF LT3755EMSE-2#PBF LT3755EMSE-2#TRPBF LT3755EMSE-2#WPBF LT3755EMSE-2#WTRPBF LT3755EUD#PBF LT3755EUD#TRPBF LT3755EUD-1#PBF LT3755EUD-1#TRPBF LT3755EUD-2#PBF LT3755EUD-2#TRPBF LT3755HMSE-2#PBF LT3755HMSE-2#TRPBF LT3755HMSE-2#WPBF LT3755HMSE-2#WTRPBF LT3755IMSE#PBF LT3755IMSE#TRPBF LT3755IMSE#WPBF LT3755IMSE#WTRPBF LT3755IMSE-1#PBF LT3755IMSE-1#TRMPBF LT3755IMSE-1#TRPBF LT3755IMSE-1#WPBF LT3755IMSE-1#WTRPBF LT3755IMSE-2#PBF LT3755IMSE-2#TRPBF LT3755IMSE-2#WPBF LT3755IMSE-2#WTRPBF LT3755IUD#PBF LT3755IUD#TRPBF LT3755IUD-1#PBF LT3755IUD-1#TRPBF LT3755IUD-2#PBF LT3755IUD-2#TRPBF LT3755JMSE-2#PBF LT3755JMSE-2#TRPBF LT3755JMSE-2#WPBF LT3755JMSE-2#WTRPBF
Text Version of Document
LT3755/LT3755-1/LT3755-2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 24V, SHDN/UVLO = 24V, CTRL = 2V, PWM = 5V, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS Gate Driver
tr GATE Driver Output Rise Time CL = 3300pF 35 ns tf GATE Driver Output Fall Time CL = 3300pF 35 ns GATE Output Low (VOL) 0.05 V GATE Output High (VOH) INTVCC – V 0.05
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
For VIN below 6V, the SHDN/UVLO pin must not exceed VIN for may cause permanent damage to the device. Exposure to any Absolute proper operation. Maximum Rating condition for extended periods may affect device
Note 4:
GATE and PWMOUT pins are driven either to GND or INTVCC by reliability and lifetime. internal switches. Do not connect these pins externally to a power supply.
Note 2:
The LT3755E, LT3755E-1 and LT3755E-2 are guaranteed to meet
Note 5:
The LT3755 includes overtemperature protection that is intended performance specifications from 0°C to 125°C junction temperature. to protect the device during momentary overload conditions. Junction Specifications over the –40°C to 125°C operating junction temperature temperature will exceed the maximum operating junction temperature range are assured by design, characterization and correlation with when overtemperature protection is active. Continuous operating above statistical process controls. The LT3755I, LT3755I-1 and LT3755I-2 are the specified maximum operating junction temperature may impair device guaranteed to meet performance specifications over the –40°C to 125°C reliability. operating junction temperature range. The LT3755H-2 and LT3577J-2 are guaranteed to meet performance specifications over the full –40°C to 150°C operating junction temperature range. High junction temperatures degrade operating lifetimes. Operating lifetime is derated at junction temperatures greater than 125°C. Rev. E For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
