Datasheet TM1637 (Titan Micro Electronics) - 7
| Manufacturer | Titan Micro Electronics |
| Description | LED Drive Control Special Circuit |
| Pages / Page | 12 / 7 — LED Drive Control Special Circuit. Flow chart of program design using … |
| File Format / Size | PDF / 705 Kb |
| Document Language | English |
LED Drive Control Special Circuit. Flow chart of program design using fixed address
Model Line for this Datasheet
Text Version of Document
LED Drive Control Special Circuit
TM1637
2
、

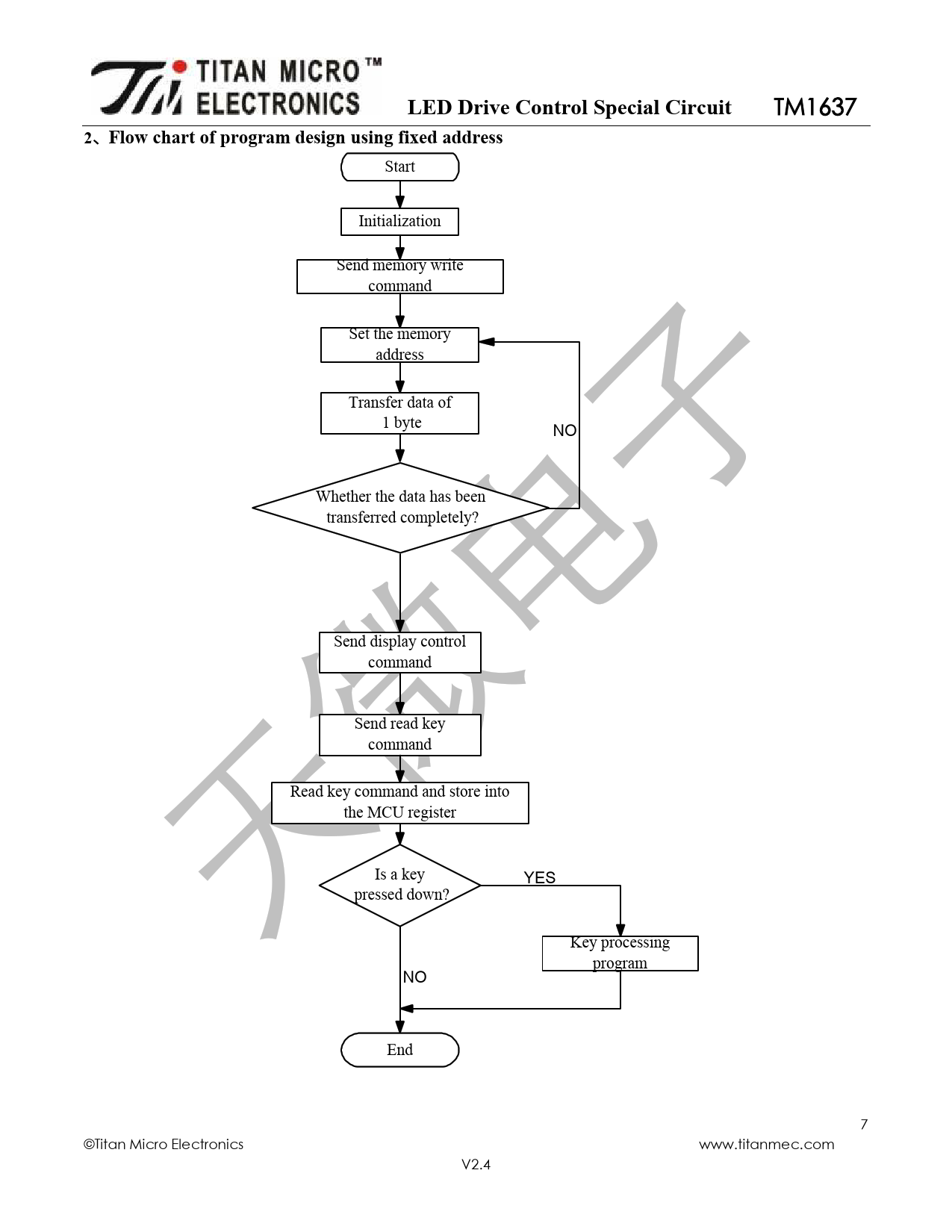

Flow chart of program design using fixed address
Start Initialization Send memory write command Set the memory address Transfer data of 1 byte NO Whether the data has been transferred completely? Send display control command Send read key command Read key command and store into the MCU register Is a key YES pressed down? Key processing program NO End 7 ©Titan Micro Electronics www.titanmec.com V2.4
