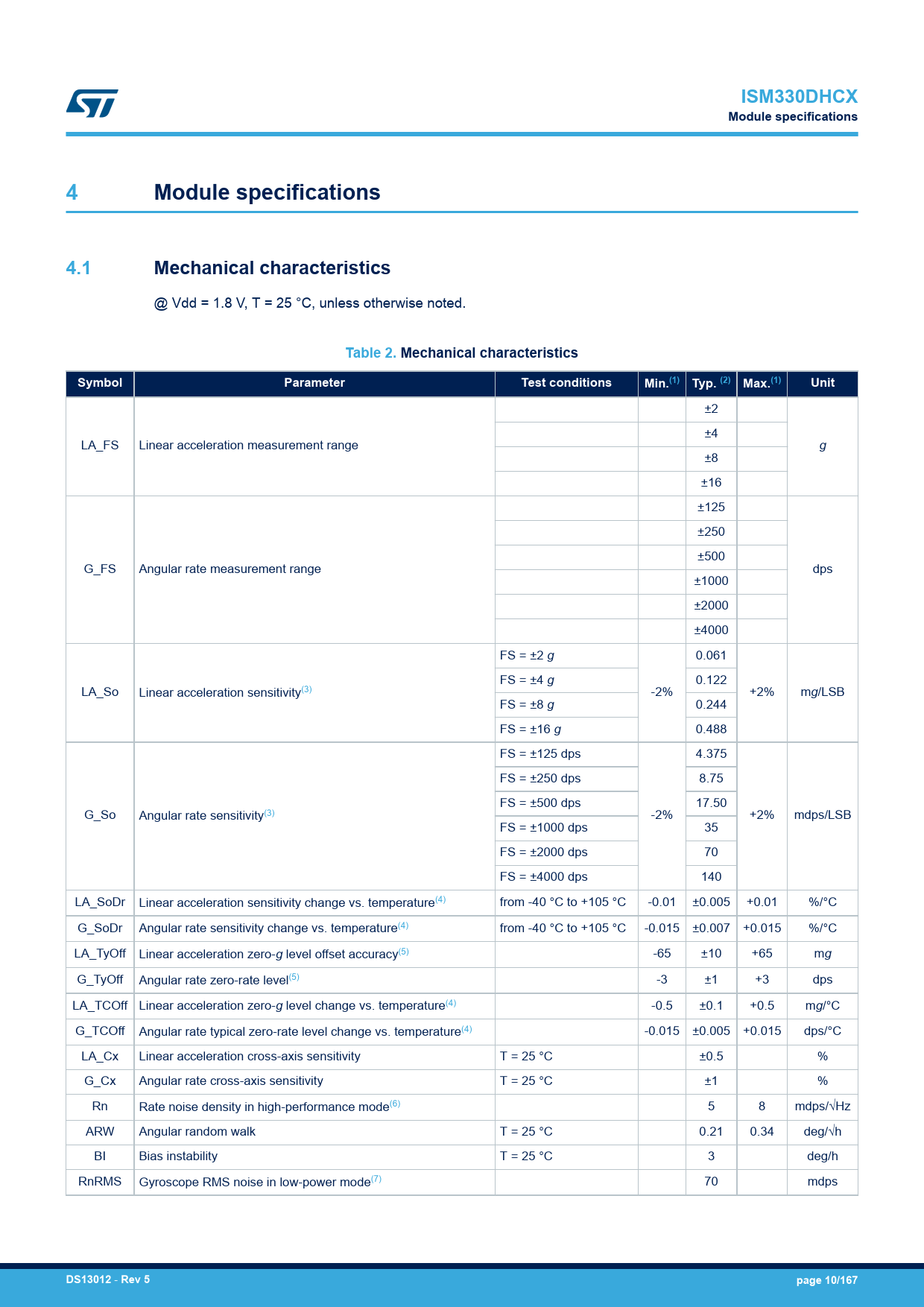

ISM330DHCX. Module specifications. 4.1. Mechanical characteristics. Table 2. Mechanical characteristics. Symbol. Parameter
Model Line for this Datasheet
Text Version of Document
link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11
ISM330DHCX Module specifications 4 Module specifications 4.1 Mechanical characteristics
@ Vdd = 1.8 V, T = 25 °C, unless otherwise noted.
Table 2. Mechanical characteristics Symbol Parameter Test conditions Min.(1) Typ. (2) Max.(1) Unit
±2 ±4 LA_FS Linear acceleration measurement range g ±8 ±16 ±125 ±250 ±500 G_FS Angular rate measurement range dps ±1000 ±2000 ±4000 FS = ±2 g 0.061 FS = ±4 g 0.122 LA_So Linear acceleration sensitivity(3) -2% +2% mg/LSB FS = ±8 g 0.244 FS = ±16 g 0.488 FS = ±125 dps 4.375 FS = ±250 dps 8.75 FS = ±500 dps 17.50 G_So Angular rate sensitivity(3) -2% +2% mdps/LSB FS = ±1000 dps 35 FS = ±2000 dps 70 FS = ±4000 dps 140 LA_SoDr Linear acceleration sensitivity change vs. temperature(4) from -40 °C to +105 °C -0.01 ±0.005 +0.01 %/°C G_SoDr Angular rate sensitivity change vs. temperature(4) from -40 °C to +105 °C -0.015 ±0.007 +0.015 %/°C LA_TyOff Linear acceleration zero-g level offset accuracy(5) -65 ±10 +65 mg G_TyOff Angular rate zero-rate level(5) -3 ±1 +3 dps LA_TCOff Linear acceleration zero-g level change vs. temperature(4) -0.5 ±0.1 +0.5 mg/°C G_TCOff Angular rate typical zero-rate level change vs. temperature(4) -0.015 ±0.005 +0.015 dps/°C LA_Cx Linear acceleration cross-axis sensitivity T = 25 °C ±0.5 % G_Cx Angular rate cross-axis sensitivity T = 25 °C ±1 % Rn Rate noise density in high-performance mode(6) 5 8 mdps/√Hz ARW Angular random walk T = 25 °C 0.21 0.34 deg/√h BI Bias instability T = 25 °C 3 deg/h RnRMS Gyroscope RMS noise in low-power mode(7) 70 mdps
