MAX30101 High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Wearable Health

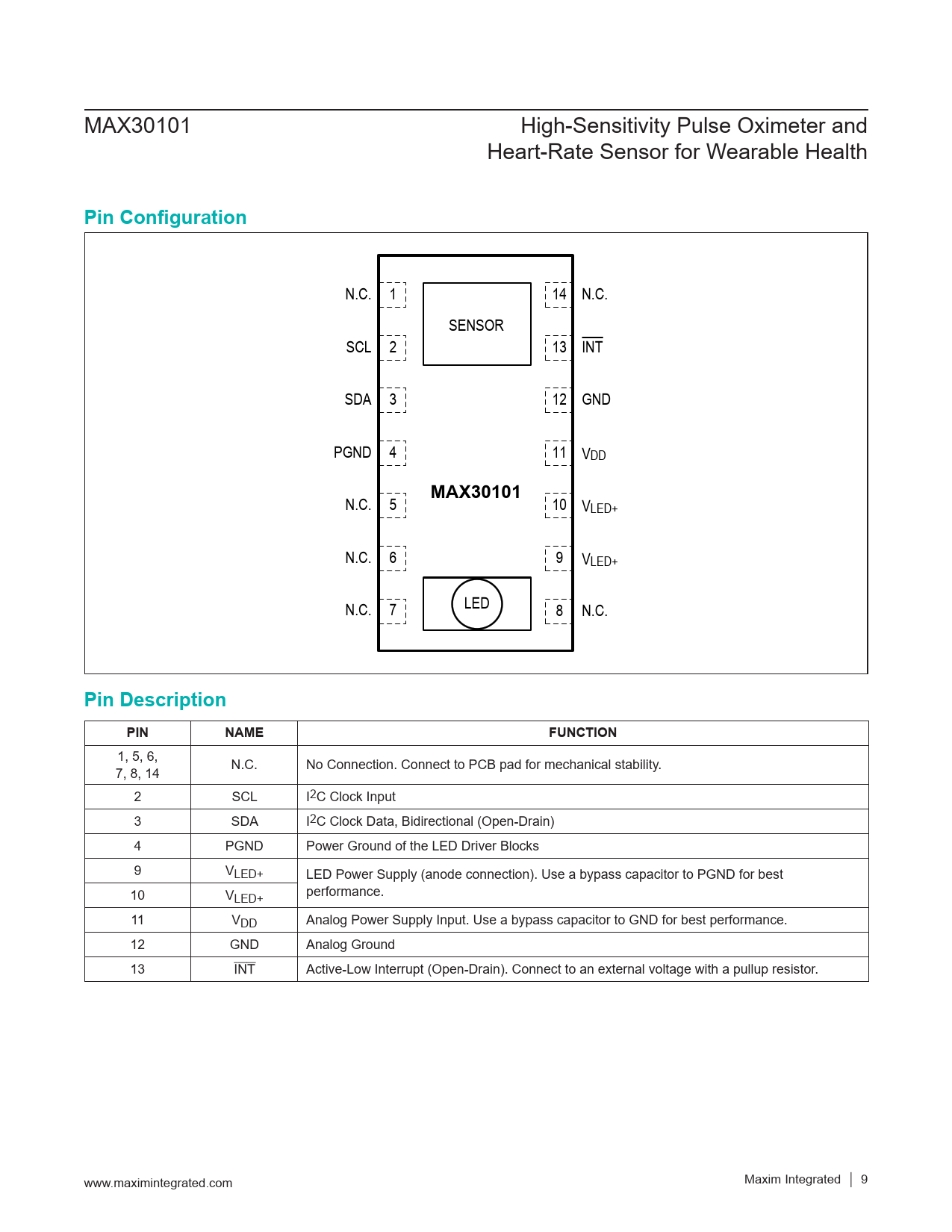

Pin Configuration
N.C. 1 14 N.C. SENSOR SCL 2 13 INT SDA 3 12 GND PGND 4 11 VDD
MAX30101
N.C. 5 10 VLED+ N.C. 6 9 VLED+ N.C. 7 LED 8 N.C.
Pin Description PIN NAME FUNCTION
1, 5, 6, 7, 8, 14 N.C. No Connection. Connect to PCB pad for mechanical stability. 2 SCL I2C Clock Input 3 SDA I2C Clock Data, Bidirectional (Open-Drain) 4 PGND Power Ground of the LED Driver Blocks 9 VLED+ LED Power Supply (anode connection). Use a bypass capacitor to PGND for best performance. 10 VLED+ 11 VDD Analog Power Supply Input. Use a bypass capacitor to GND for best performance. 12 GND Analog Ground 13 INT Active-Low Interrupt (Open-Drain). Connect to an external voltage with a pullup resistor. www.maximintegrated.com Maxim Integrated │
9
