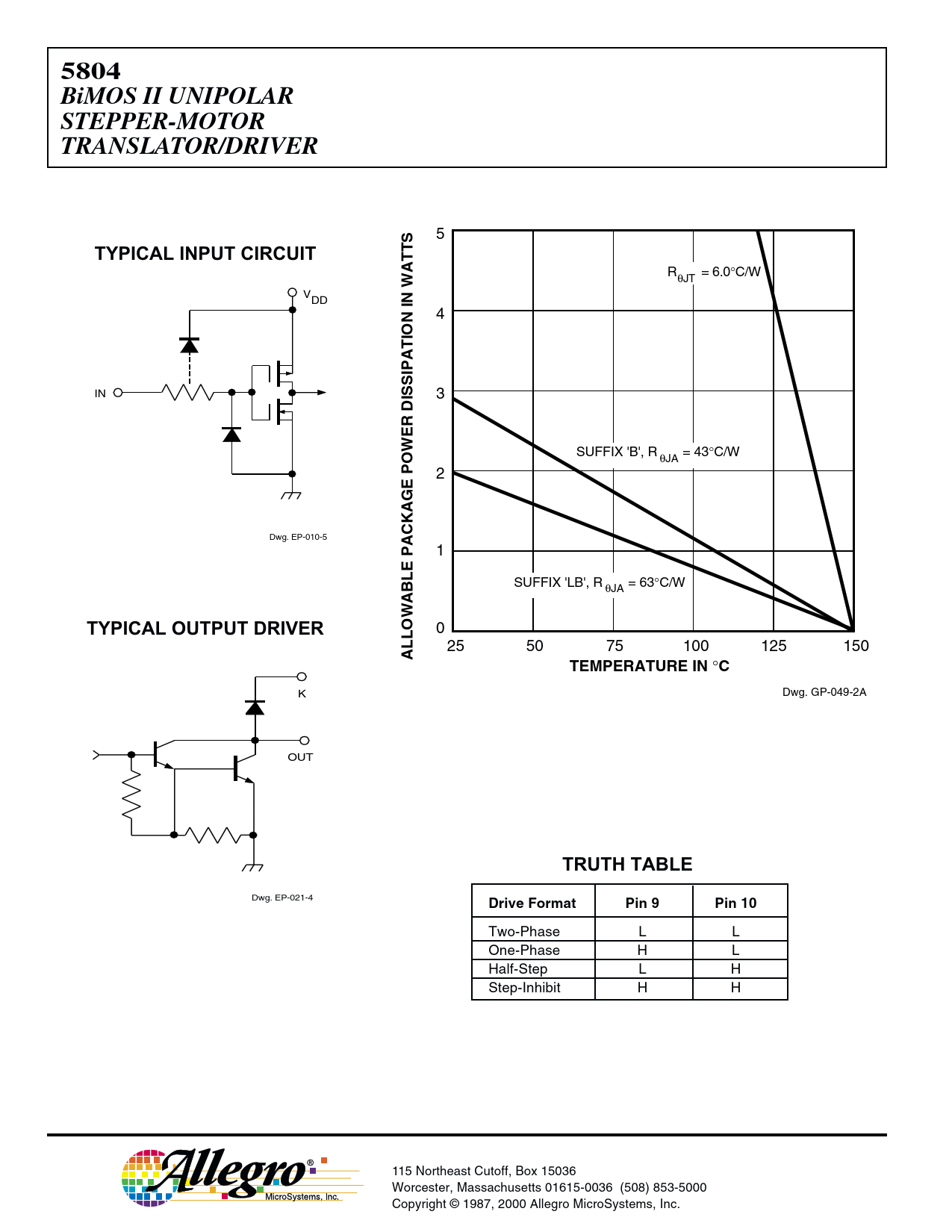

5804 BiMOS II UNIPOLAR STEPPER-MOTOR TRANSLATOR/DRIVER
5
TYPICAL INPUT CIRCUIT
R = 6.0°C/W θJT VDD 4 IN 3 SUFFIX 'B', R = 43°C/W θJA 2 Dwg. EP-010-5 1 SUFFIX 'LB', R = 63°C/W θJA
TYPICAL OUTPUT DRIVER
0 25 50 75 100 125 150
ALLOWABLE PACKAGE POWER DISSIPATION IN WATTS TEMPERATURE IN
°
C
K Dwg. GP-049-2A OUT
TRUTH TABLE
Dwg. EP-021-4
Drive Format Pin 9 Pin 10
Two-Phase L L One-Phase H L Half-Step L H Step-Inhibit H H 115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000 Copyright © 1987, 2000 Allegro MicroSystems, Inc.
