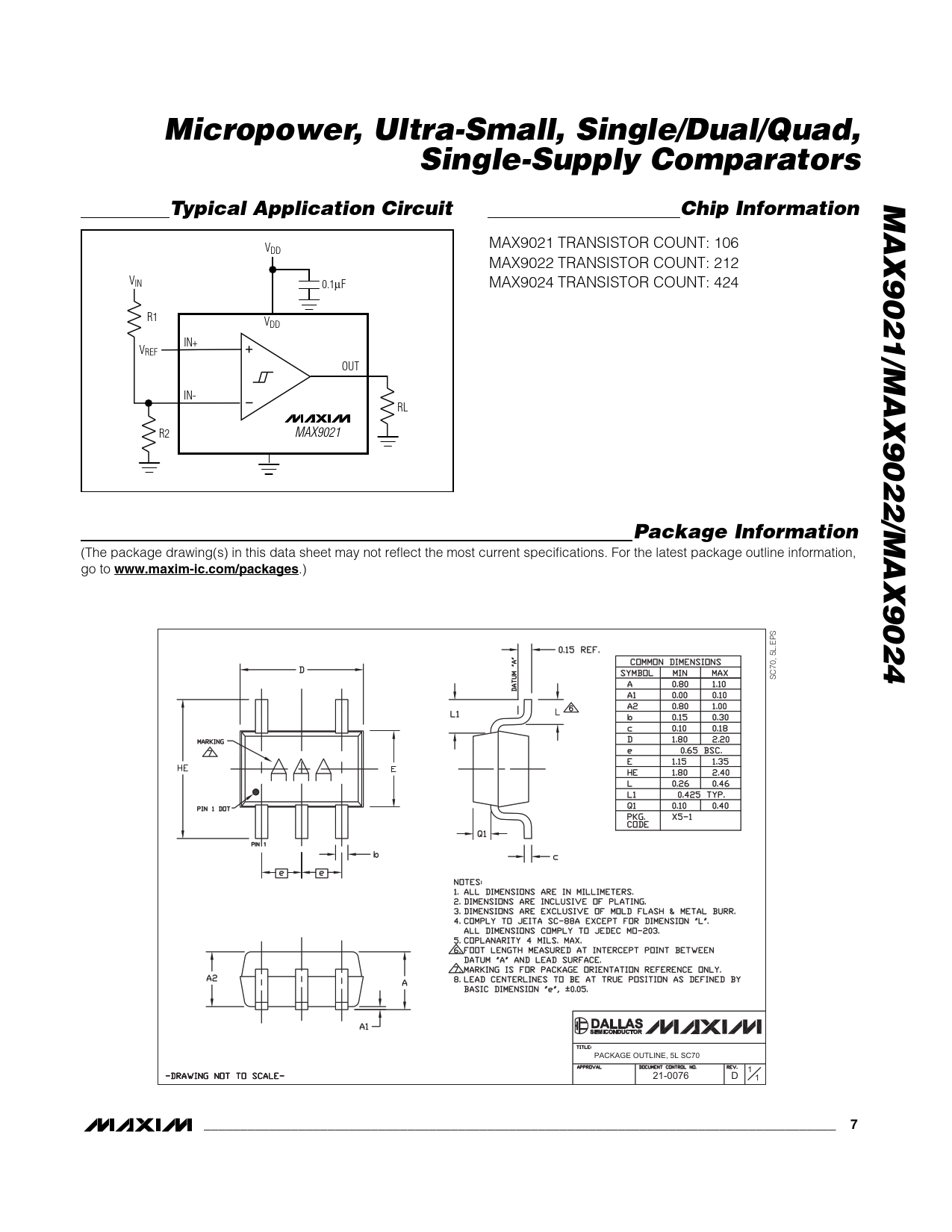

Micropower, Ultra-Small, Single/Dual/Quad,. Single-Supply Comparators. MAX9021/MAX9022/MAX9024. Typical Application Circuit
Model Line for this Datasheet
Text Version of Document
Micropower, Ultra-Small, Single/Dual/Quad, Single-Supply Comparators MAX9021/MAX9022/MAX9024 Typical Application Circuit Chip Information
V MAX9021 TRANSISTOR COUNT: 106 DD MAX9022 TRANSISTOR COUNT: 212 VIN 0.1µF MAX9024 TRANSISTOR COUNT: 424 R1 VDD IN+ VREF OUT IN- RL R2 MAX9021
Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to
www.maxim-ic.com/packages
.) SC70, 5L.EPS PACKAGE OUTLINE, 5L SC70 21-0076 1 D 1
