Datasheet TCO-730Z2 (Toycom)
| Manufacturer | Toycom |
| Description | Voltage Controlled Crystal Oscillator (VCXO) |
| Pages / Page | 1 / 1 — Voltage Controlled Crystal Oscillaor (VCXO). TCO-730Z2. Features. … |
| File Format / Size | PDF / 119 Kb |
| Document Language | English |

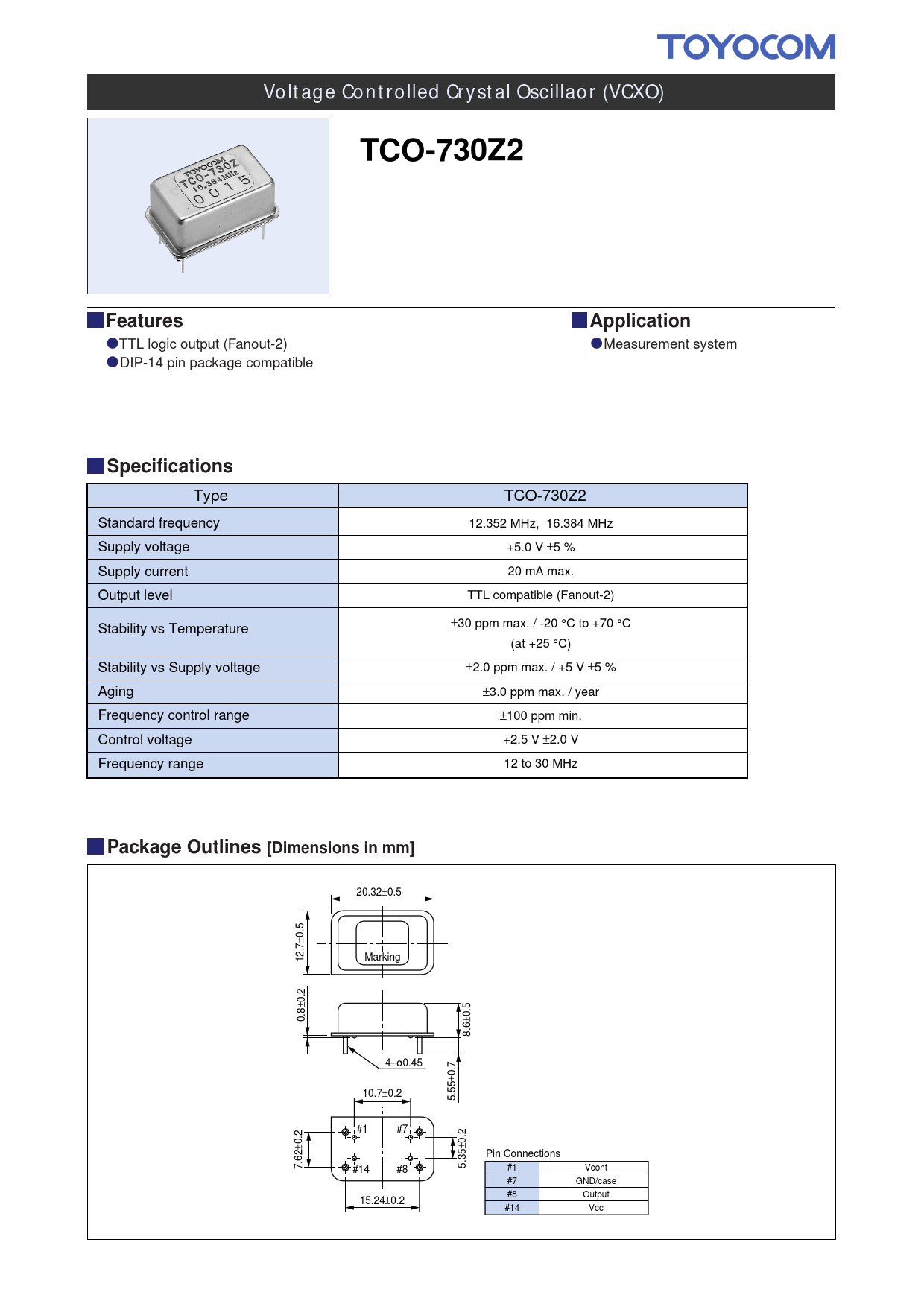

Voltage Controlled Crystal Oscillaor (VCXO). TCO-730Z2. Features. Application. Specifications
Model Line for this Datasheet
Text Version of Document
Voltage Controlled Crystal Oscillaor (VCXO) TCO-730Z2 Features Application
TTL logic output (Fanout-2) Measurement system DIP-14 pin package compatible
Specifications
Type TCO-730Z2 Standard frequency 12.352 MHz, 16.384 MHz Supply voltage +5.0 V ±5 % Supply current 20 mA max. Output level TTL compatible (Fanout-2) ±30 ppm max. / -20 °C to +70 °C Stability vs Temperature (at +25 °C) Stability vs Supply voltage ±2.0 ppm max. / +5 V ±5 % Aging ±3.0 ppm max. / year Frequency control range ±100 ppm min. Control voltage +2.5 V ±2.0 V Frequency range 12 to 30 MHz
Package Outlines [Dimensions in mm]
20.32±0.5 ±0.5 12.7 Marking ±0.2 0.8 ±0.5 8.6 4–ø0.45 ±0.7 10.7±0.2 5.55 #1 #7 ±0.2 ±0.2 Pin Connections 7.62 5.35 #14 #8 #1 Vcont #7 GND/case #8 Output 15.24±0.2 #14 Vcc
TTL logic output (Fanout-2) Measurement system DIP-14 pin package compatible
Specifications
Type TCO-730Z2 Standard frequency 12.352 MHz, 16.384 MHz Supply voltage +5.0 V ±5 % Supply current 20 mA max. Output level TTL compatible (Fanout-2) ±30 ppm max. / -20 °C to +70 °C Stability vs Temperature (at +25 °C) Stability vs Supply voltage ±2.0 ppm max. / +5 V ±5 % Aging ±3.0 ppm max. / year Frequency control range ±100 ppm min. Control voltage +2.5 V ±2.0 V Frequency range 12 to 30 MHz
Package Outlines [Dimensions in mm]
20.32±0.5 ±0.5 12.7 Marking ±0.2 0.8 ±0.5 8.6 4–ø0.45 ±0.7 10.7±0.2 5.55 #1 #7 ±0.2 ±0.2 Pin Connections 7.62 5.35 #14 #8 #1 Vcont #7 GND/case #8 Output 15.24±0.2 #14 Vcc
