Datasheet MMBZxAL (Nexperia) - 6
| Manufacturer | Nexperia |
| Description | Low capacitance unidirectional double ESD protection diode |
| Pages / Page | 17 / 6 — Nexperia. MMBZxAL series. Low capacitance unidirectional double ESD … |
| Revision | 28042020 |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
Nexperia. MMBZxAL series. Low capacitance unidirectional double ESD protection diodes. Fig 1. 10/1000
Model Line for this Datasheet
Text Version of Document
Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes

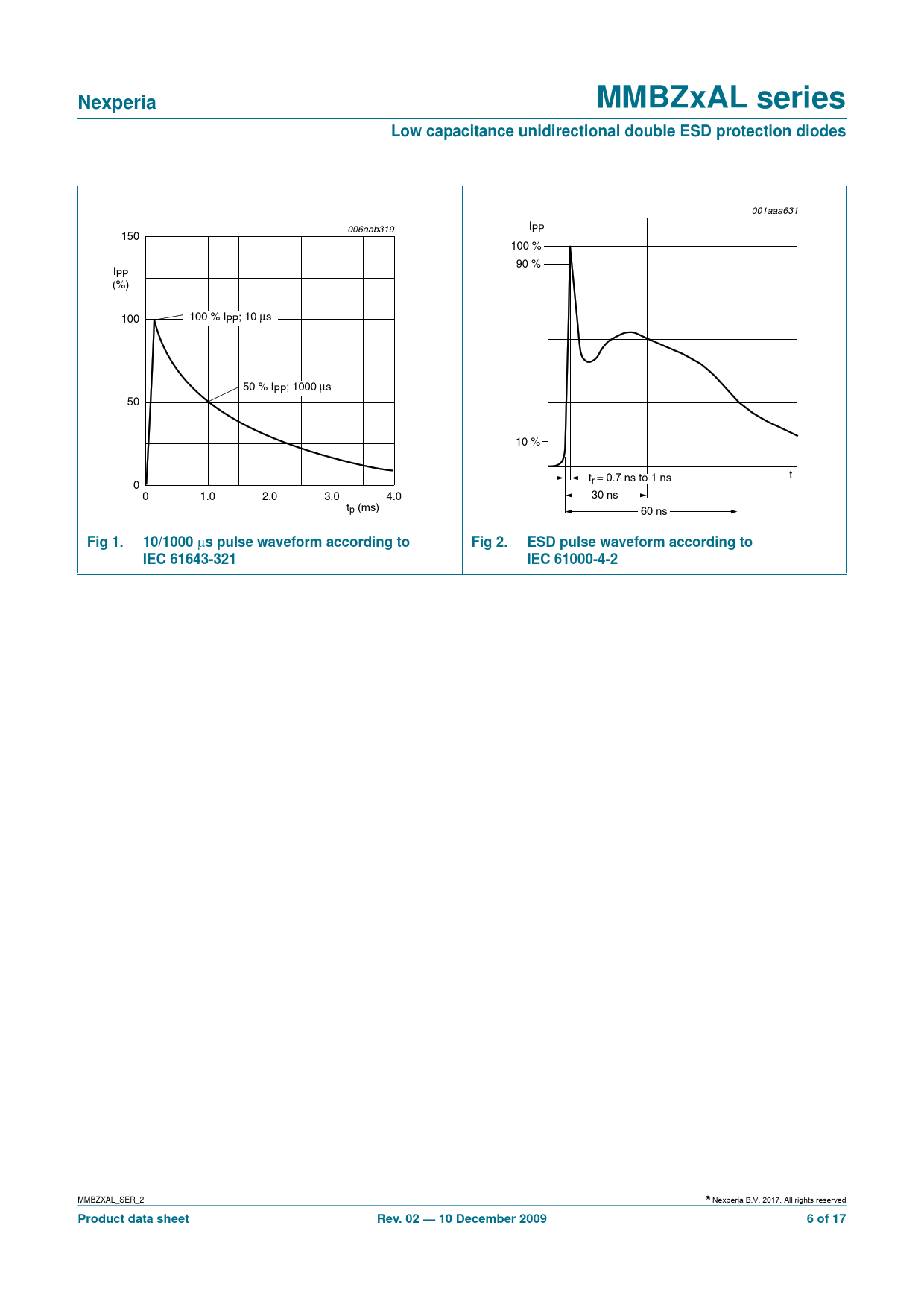

001aaa631 006aab319 IPP 150 100 % 90 % IPP (%) 100 100 % IPP; 10 μs 50 % IPP; 1000 μs 50 10 % t t 0 r = 0.7 ns to 1 ns 0 1.0 2.0 3.0 4.0 30 ns tp (ms) 60 ns
Fig 1. 10/1000
μ
s pulse waveform according to Fig 2. ESD pulse waveform according to IEC 61643-321 IEC 61000-4-2
MMBZXAL_SER_2 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 02 — 10 December 2009 6 of 17
