| Manufacturer | Analog Devices |
| Description | 16 V, 1 MHz, CMOS Rail-to-Rail Input/Output Operational Amplifier |
| Pages / Page | 20 / 5 — ADA4665-2. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 5. … |
| File Format / Size | PDF / 708 Kb |
| Document Language | English |
ADA4665-2. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 5. Parameter Rating. Table 6. Thermal Resistance. Package Type. θJA
Model Line for this Datasheet
Text Version of Document
link to page 5

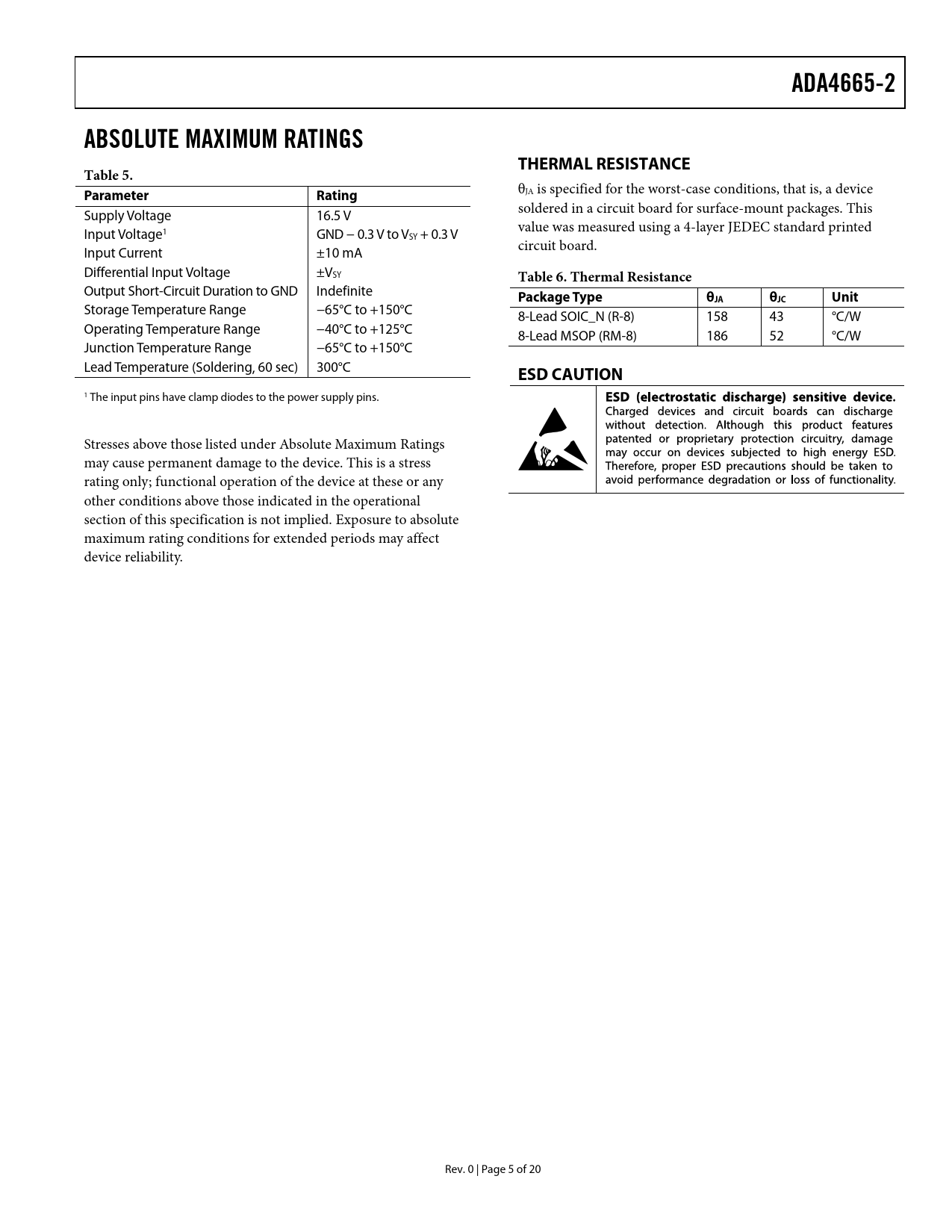

ADA4665-2 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 5.
θ
Parameter Rating
JA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. This Supply Voltage 16.5 V value was measured using a 4-layer JEDEC standard printed Input Voltage1 GND − 0.3 V to VSY + 0.3 V circuit board. Input Current ±10 mA Differential Input Voltage ±VSY
Table 6. Thermal Resistance
Output Short-Circuit Duration to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead SOIC_N (R-8) 158 43 °C/W Operating Temperature Range −40°C to +125°C 8-Lead MSOP (RM-8) 186 52 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C
ESD CAUTION
1 The input pins have clamp diodes to the power supply pins. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 5 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—16 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION RAIL-TO-RAIL INPUT OPERATION CURRENT SHUNT SENSOR ACTIVE FILTERS OUTLINE DIMENSIONS ORDERING GUIDE
