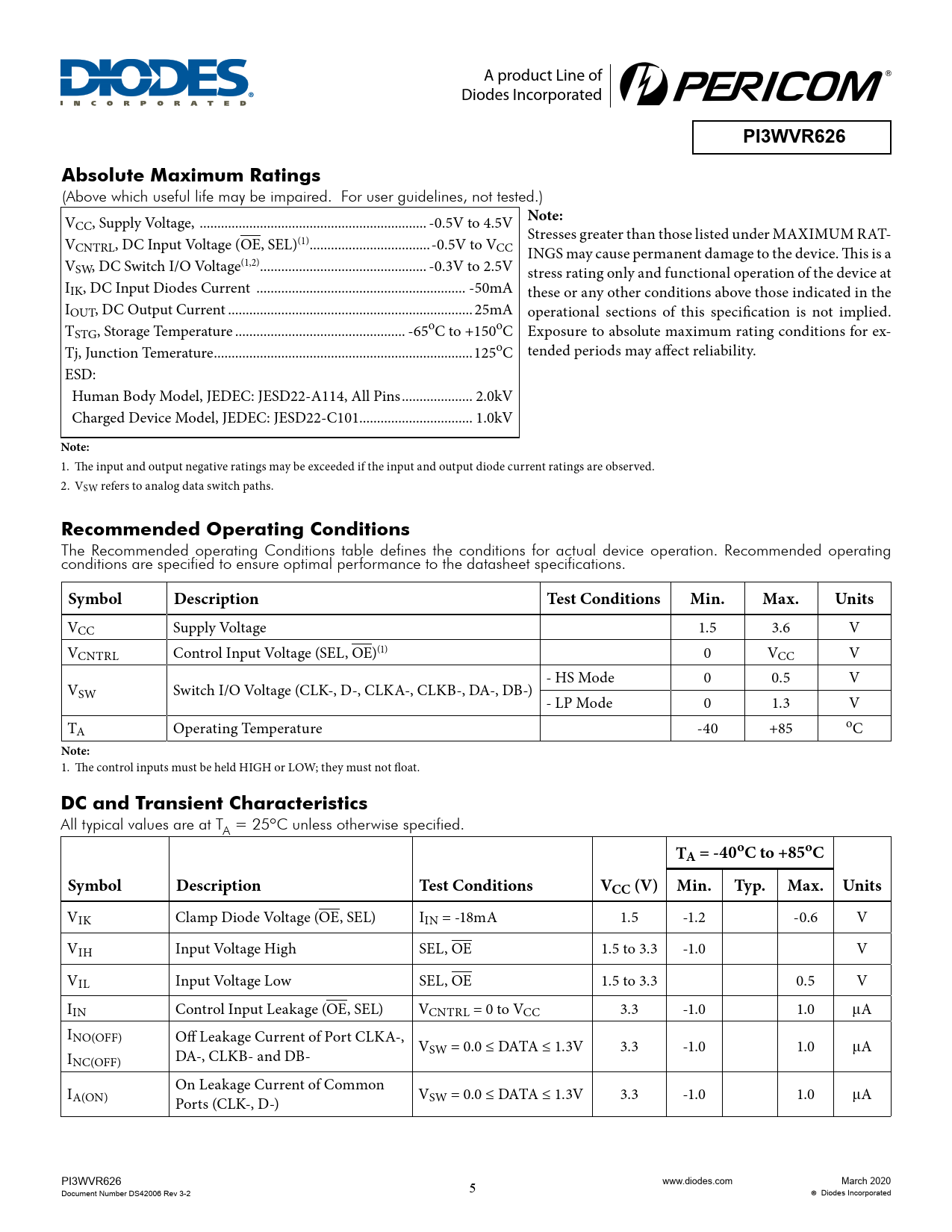

PI3WVR626. Absolute Maximum Ratings. Note:. Recommended Operating Conditions. Symbol. Description. Test Conditions. Min. Max. Units
Model Line for this Datasheet
Text Version of Document
A product Line of Diodes Incorporated
PI3WVR626 Absolute Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) V
Note:
CC, Supply Voltage, .. -0.5V to 4.5V Stresses greater than those listed under MAXIMUM RAT- VCNTRL, DC Input Voltage (OE, SEL)(1) ..-0.5V to VCC INGS may cause permanent damage to the device. This is a VSW, DC Switch I/O Voltage(1,2) ... -0.3V to 2.5V stress rating only and functional operation of the device at IIK, DC Input Diodes Current ... -50mA these or any other conditions above those indicated in the IOUT, DC Output Current ...25mA operational sections of this specification is not implied. TSTG, Storage Temperature .. -65oC to +150oC Exposure to absolute maximum rating conditions for ex- Tj, Junction Temerature ...125oC tended periods may affect reliability. ESD: Human Body Model, JEDEC: JESD22-A114, All Pins .. 2.0kV Charged Device Model, JEDEC: JESD22-C101.. 1.0kV
Note:
1. The input and output negative ratings may be exceeded if the input and output diode current ratings are observed. 2. VSW refers to analog data switch paths.
Recommended Operating Conditions
The Recommended operating Conditions table defines the conditions for actual device operation. Recommended operating conditions are specified to ensure optimal performance to the datasheet specifications.
Symbol Description Test Conditions Min. Max. Units
VCC Supply Voltage 1.5 3.6 V VCNTRL Control Input Voltage (SEL, OE)(1) 0 VCC V - HS Mode 0 0.5 V VSW Switch I/O Voltage (CLK-, D-, CLKA-, CLKB-, DA-, DB-) - LP Mode 0 1.3 V TA Operating Temperature -40 +85 oC
Note:
1. The control inputs must be held HIGH or LOW; they must not float.
DC and Transient Characteristics
All typical values are at TA = 25ºC unless otherwise specified.
TA = -40oC to +85oC Symbol Description Test Conditions VCC (V) Min. Typ. Max. Units
VIK Clamp Diode Voltage (OE, SEL) IIN = -18mA 1.5 -1.2 -0.6 V VIH Input Voltage High SEL, OE 1.5 to 3.3 -1.0 V VIL Input Voltage Low SEL, OE 1.5 to 3.3 0.5 V IIN Control Input Leakage (OE, SEL) VCNTRL = 0 to VCC 3.3 -1.0 1.0 μA INO(OFF) Off Leakage Current of Port CLKA-, INC(OFF) DA-, CLKB- and DB- VSW = 0.0 ≤ DATA ≤ 1.3V 3.3 -1.0 1.0 μA I On Leakage Current of Common A(ON) Ports (CLK-, D-) VSW = 0.0 ≤ DATA ≤ 1.3V 3.3 -1.0 1.0 μA PI3WVR626 Document Number DS42006 Rev 3-2 5 www.diodes.com March 2020 Diodes Incorporated
