Datasheet PI3WVR626 (Diodes) - 8
| Manufacturer | Diodes |
| Description | 2:1 MIPI 2-Data Lane |
| Pages / Page | 12 / 8 — PI3WVR626. High-Speed-Related AC Electrical Characteristics. TA = -40oC … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |
PI3WVR626. High-Speed-Related AC Electrical Characteristics. TA = -40oC to +85oC. Symbol. Description. Test Conditions
Model Line for this Datasheet
Text Version of Document
A product Line of Diodes Incorporated

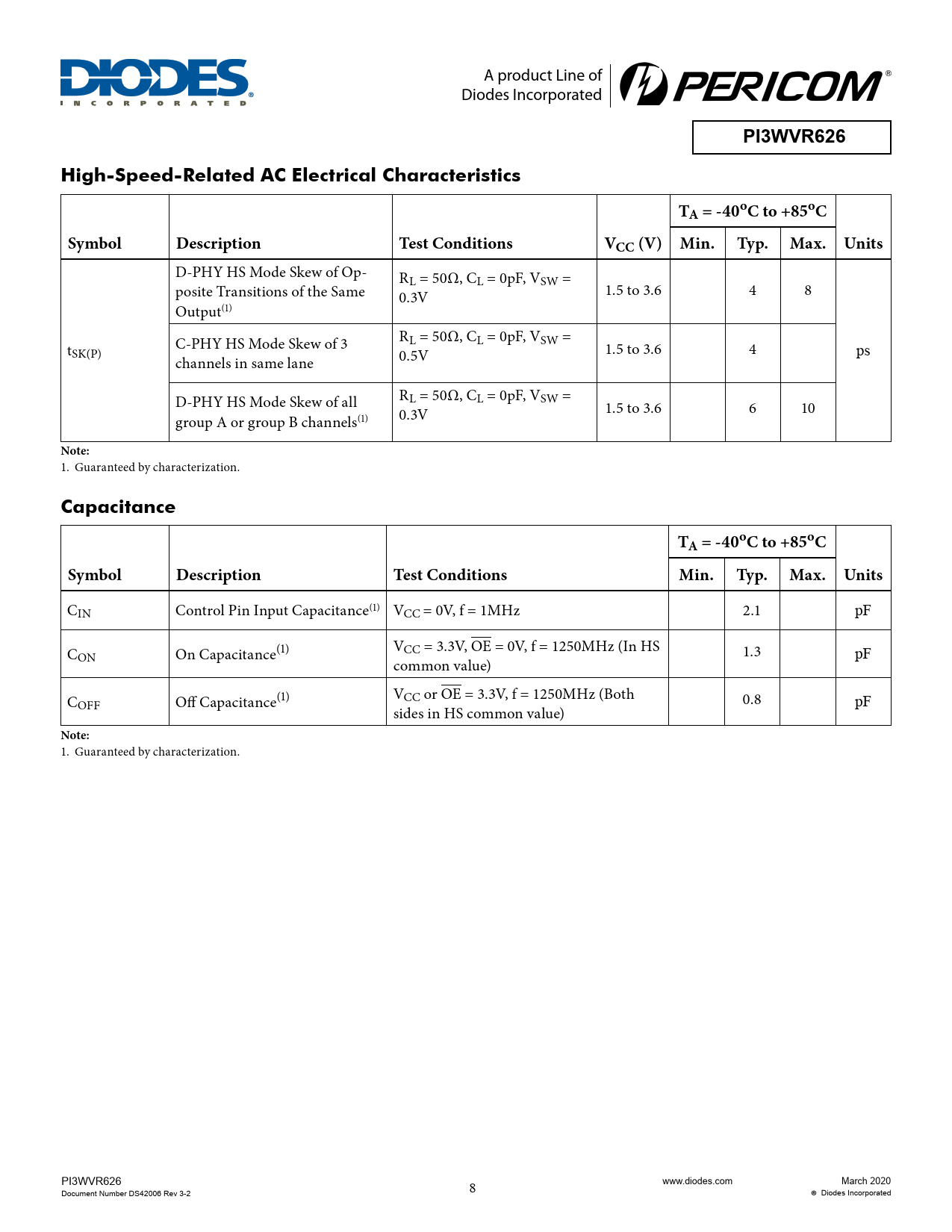

PI3WVR626 High-Speed-Related AC Electrical Characteristics TA = -40oC to +85oC Symbol Description Test Conditions VCC (V) Min. Typ. Max. Units
D-PHY HS Mode Skew of Op- RL = 50Ω, CL = 0pF, VSW = posite Transitions of the Same 0.3V 1.5 to 3.6 4 8 Output(1) RL = 50Ω, CL = 0pF, VSW = t C-PHY HS Mode Skew of 3 SK(P) ps channels in same lane 0.5V 1.5 to 3.6 4 D-PHY HS Mode Skew of all RL = 50Ω, CL = 0pF, VSW = group A or group B channels(1) 0.3V 1.5 to 3.6 6 10
Note:
1. Guaranteed by characterization.
Capacitance TA = -40oC to +85oC Symbol Description Test Conditions Min. Typ. Max. Units
CIN Control Pin Input Capacitance(1) VCC = 0V, f = 1MHz 2.1 pF CON On Capacitance(1) VCC = 3.3V, OE = 0V, f = 1250MHz (In HS 1.3 pF common value) COFF Off Capacitance(1) VCC or OE = 3.3V, f = 1250MHz (Both 0.8 pF sides in HS common value)
Note:
1. Guaranteed by characterization. PI3WVR626 Document Number DS42006 Rev 3-2 8 www.diodes.com March 2020 Diodes Incorporated
PI3WVR626 High-Speed-Related AC Electrical Characteristics TA = -40oC to +85oC Symbol Description Test Conditions VCC (V) Min. Typ. Max. Units
D-PHY HS Mode Skew of Op- RL = 50Ω, CL = 0pF, VSW = posite Transitions of the Same 0.3V 1.5 to 3.6 4 8 Output(1) RL = 50Ω, CL = 0pF, VSW = t C-PHY HS Mode Skew of 3 SK(P) ps channels in same lane 0.5V 1.5 to 3.6 4 D-PHY HS Mode Skew of all RL = 50Ω, CL = 0pF, VSW = group A or group B channels(1) 0.3V 1.5 to 3.6 6 10
Note:
1. Guaranteed by characterization.
Capacitance TA = -40oC to +85oC Symbol Description Test Conditions Min. Typ. Max. Units
CIN Control Pin Input Capacitance(1) VCC = 0V, f = 1MHz 2.1 pF CON On Capacitance(1) VCC = 3.3V, OE = 0V, f = 1250MHz (In HS 1.3 pF common value) COFF Off Capacitance(1) VCC or OE = 3.3V, f = 1250MHz (Both 0.8 pF sides in HS common value)
Note:
1. Guaranteed by characterization. PI3WVR626 Document Number DS42006 Rev 3-2 8 www.diodes.com March 2020 Diodes Incorporated
