Datasheet LT8301 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 42VIN Micropower No-Opto Isolated Flyback Converter with 65V/1.2A Switch |
| Pages / Page | 24 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| Revision | B |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |

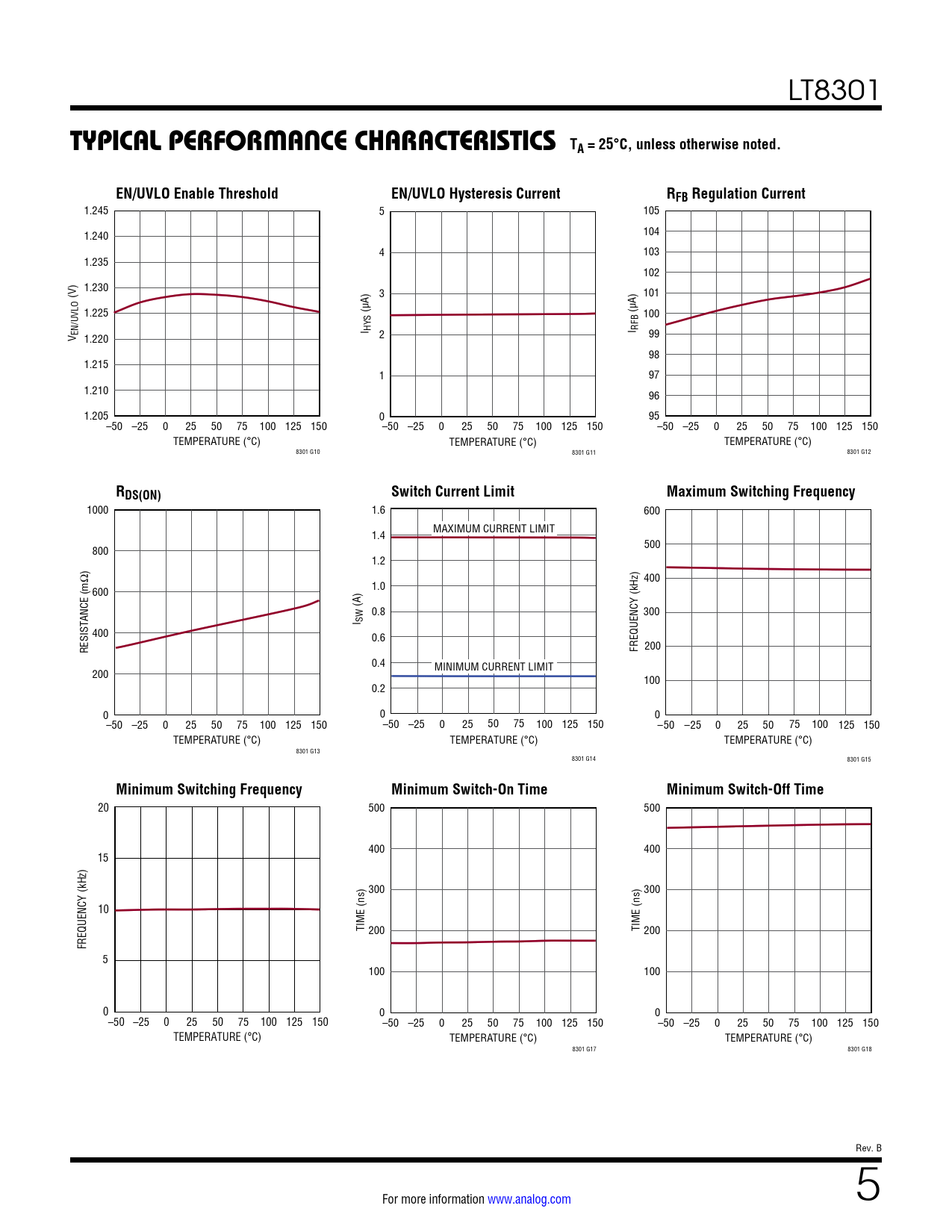

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. EN/UVLO Enable Threshold. EN/UVLO Hysteresis Current
