PIN FUNCTIONS (LTC3722-1/LTC3722-2). OUTC (Pin 19/Pin 19):. GND (Pin 23/Pin 23):. OUTB (Pin 20/Pin 20):. OUTA (Pin 21/Pin 21):
Model Line for this Datasheet
Text Version of Document
LTC3722-1/LTC3722-2

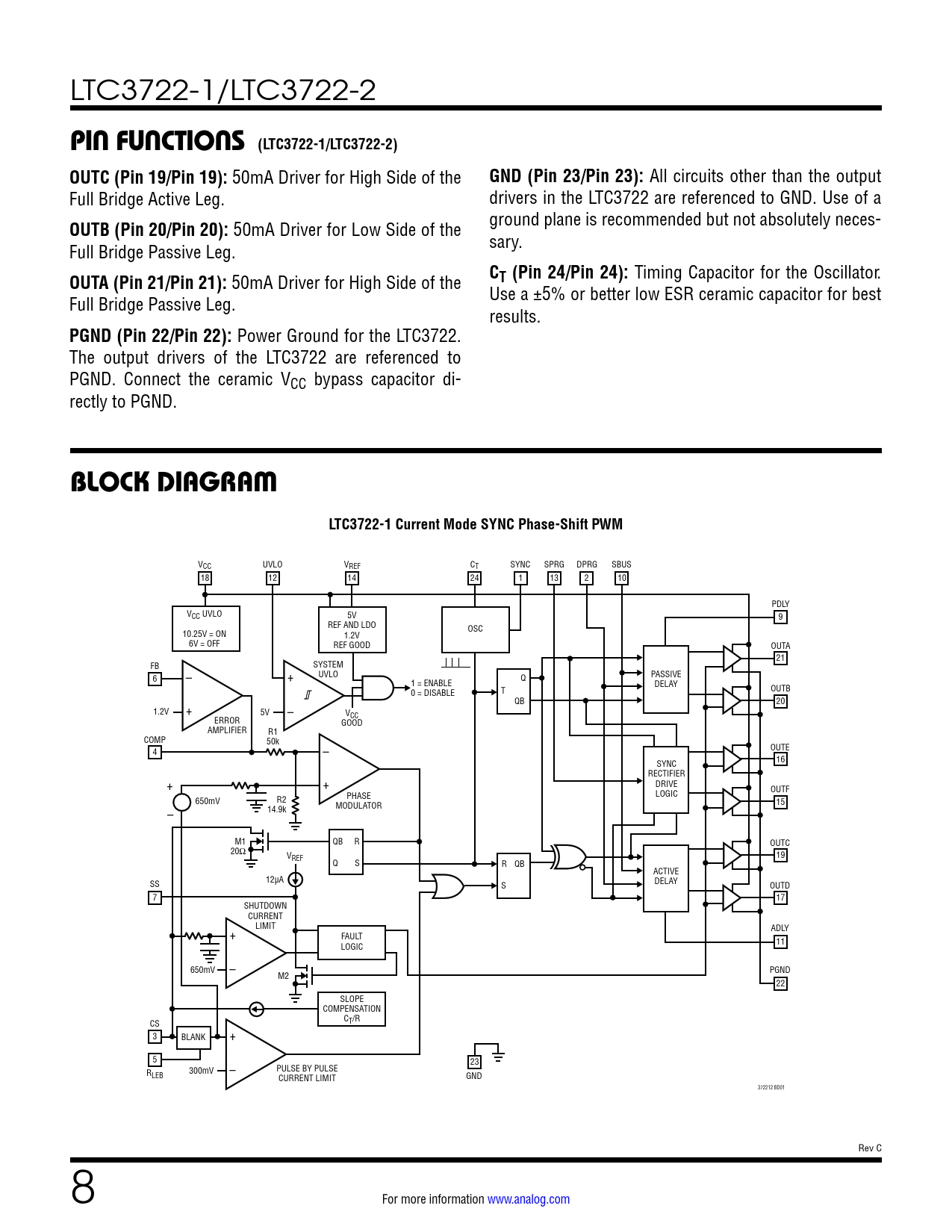

PIN FUNCTIONS (LTC3722-1/LTC3722-2) OUTC (Pin 19/Pin 19):
50mA Driver for High Side of the
GND (Pin 23/Pin 23):
All circuits other than the output Full Bridge Active Leg. drivers in the LTC3722 are referenced to GND. Use of a
OUTB (Pin 20/Pin 20):
50mA Driver for Low Side of the ground plane is recommended but not absolutely neces- Full Bridge Passive Leg. sary.
OUTA (Pin 21/Pin 21):
50mA Driver for High Side of the
CT (Pin 24/Pin 24):
Timing Capacitor for the Oscillator. Full Bridge Passive Leg. Use a ±5% or better low ESR ceramic capacitor for best results.
PGND (Pin 22/Pin 22):
Power Ground for the LTC3722. The output drivers of the LTC3722 are referenced to PGND. Connect the ceramic VCC bypass capacitor di- rectly to PGND.
