| Manufacturer | Alpha & Omega |
| Description | 3A 1.25MHz Synchronous EZBuck Regulator |
| Pages / Page | 15 / 6 — AOZ6763DI. Typical Characteristics. Start-up to Full Load. 50% to 100% … |
| File Format / Size | PDF / 889 Kb |
| Document Language | English |
AOZ6763DI. Typical Characteristics. Start-up to Full Load. 50% to 100% Load Transient. VIN (5V/div). (1V/div). (100mV/div). (2A/div)
Model Line for this Datasheet
Text Version of Document

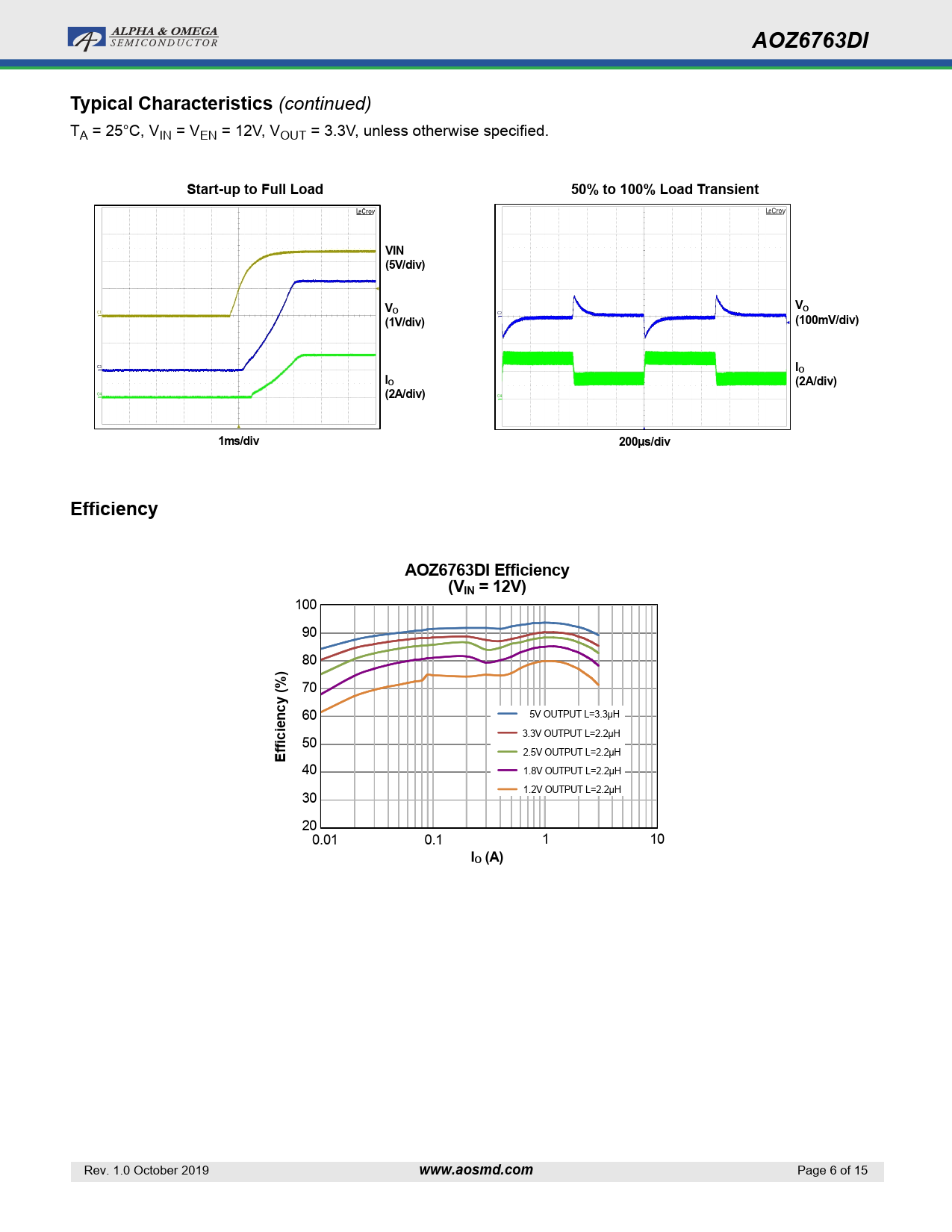

AOZ6763DI Typical Characteristics
(continued) TA = 25°C, VIN = VEN = 12V, VOUT = 3.3V, unless otherwise specified.
Start-up to Full Load 50% to 100% Load Transient VIN (5V/div) V V O O (1V/div) (100mV/div) IO IO (2A/div) (2A/div) 1ms/div 200µs/div Efficiency AOZ6763DI Efficiency (VIN = 12V)
100 90 80
(%)
70
cy
60 5V OUTPUT L=3.3µH
ien
3.3V OUTPUT L=2.2µH 50
Effic
2.5V OUTPUT L=2.2µH 40 1.8V OUTPUT L=2.2µH 1.2V OUTPUT L=2.2µH 30 200.01 0.1 1 10
IO (A)
Rev. 1.0 October 2019
www.aosmd.com
Page 6 of 15
(continued) TA = 25°C, VIN = VEN = 12V, VOUT = 3.3V, unless otherwise specified.
Start-up to Full Load 50% to 100% Load Transient VIN (5V/div) V V O O (1V/div) (100mV/div) IO IO (2A/div) (2A/div) 1ms/div 200µs/div Efficiency AOZ6763DI Efficiency (VIN = 12V)
100 90 80
(%)
70
cy
60 5V OUTPUT L=3.3µH
ien
3.3V OUTPUT L=2.2µH 50
Effic
2.5V OUTPUT L=2.2µH 40 1.8V OUTPUT L=2.2µH 1.2V OUTPUT L=2.2µH 30 200.01 0.1 1 10
IO (A)
Rev. 1.0 October 2019
www.aosmd.com
Page 6 of 15
