Preliminary Datasheet INLC10AQ (Inova Semiconductors) - 8
| Manufacturer | Inova Semiconductors |
| Description | Smart LED Driver & Controller |
| Pages / Page | 32 / 8 — Preliminary. Datasheet. 3.2.1 Interface Characteristics. 3.2.1.1 Serial … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
Preliminary. Datasheet. 3.2.1 Interface Characteristics. 3.2.1.1 Serial Interface. Parameter. Description. Min. Typ. Max. Units
Model Line for this Datasheet
Text Version of Document

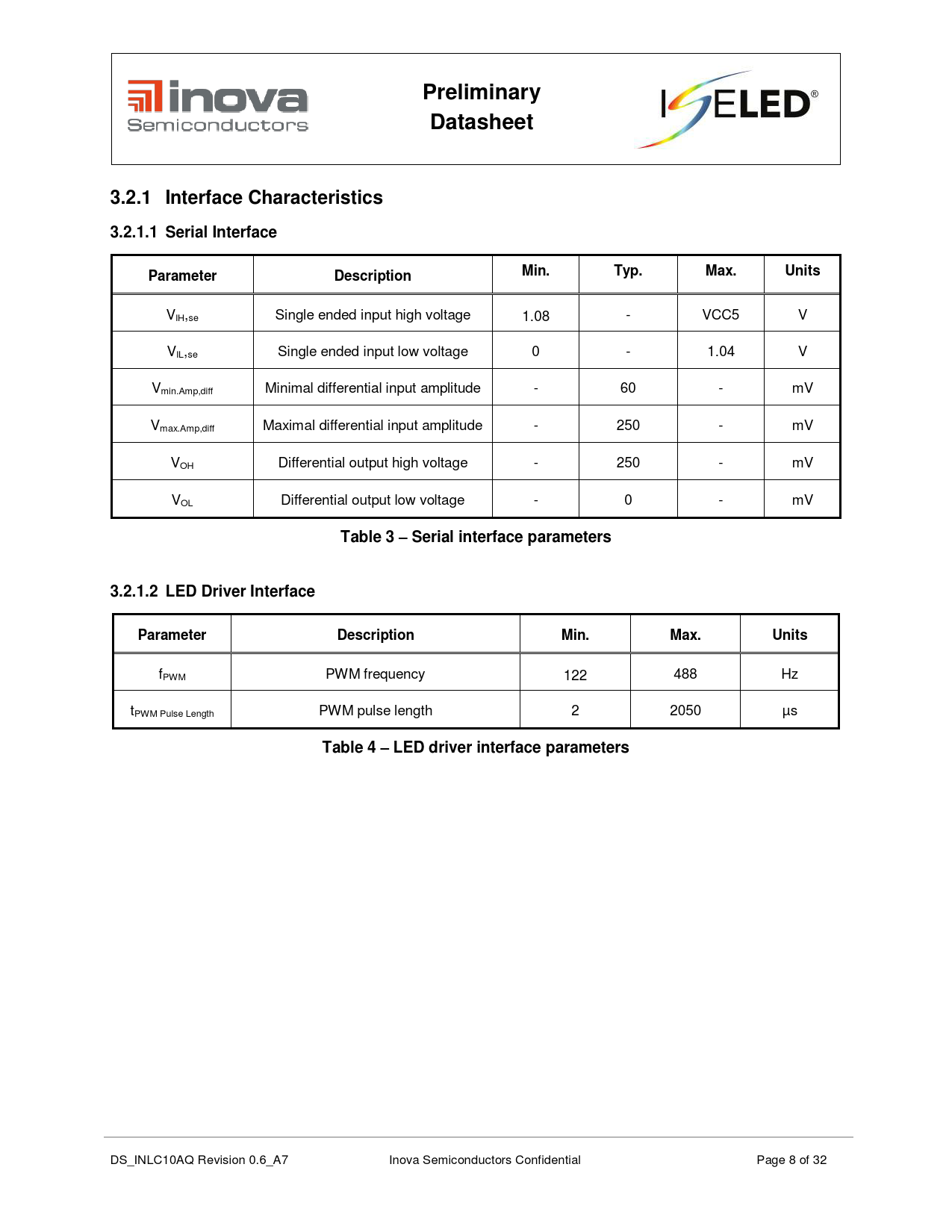

Preliminary Datasheet 3.2.1 Interface Characteristics 3.2.1.1 Serial Interface Parameter Description Min. Typ. Max. Units
VIH,se Single ended input high voltage 1.08 - VCC5 V VIL,se Single ended input low voltage 0 - 1.04 V Vmin.Amp,diff Minimal differential input amplitude - 60 - mV Vmax.Amp,diff Maximal differential input amplitude - 250 - mV VOH Differential output high voltage - 250 - mV VOL Differential output low voltage - 0 - mV
Table 3 – Serial interface parameters 3.2.1.2 LED Driver Interface Parameter Description Min. Max. Units
fPWM PWM frequency 122 488 Hz tPWM Pulse Length PWM pulse length 2 2050 µs
Table 4 – LED driver interface parameters
DS_INLC10AQ Revision 0.6_A7 Inova Semiconductors Confidential Page 8 of 32
