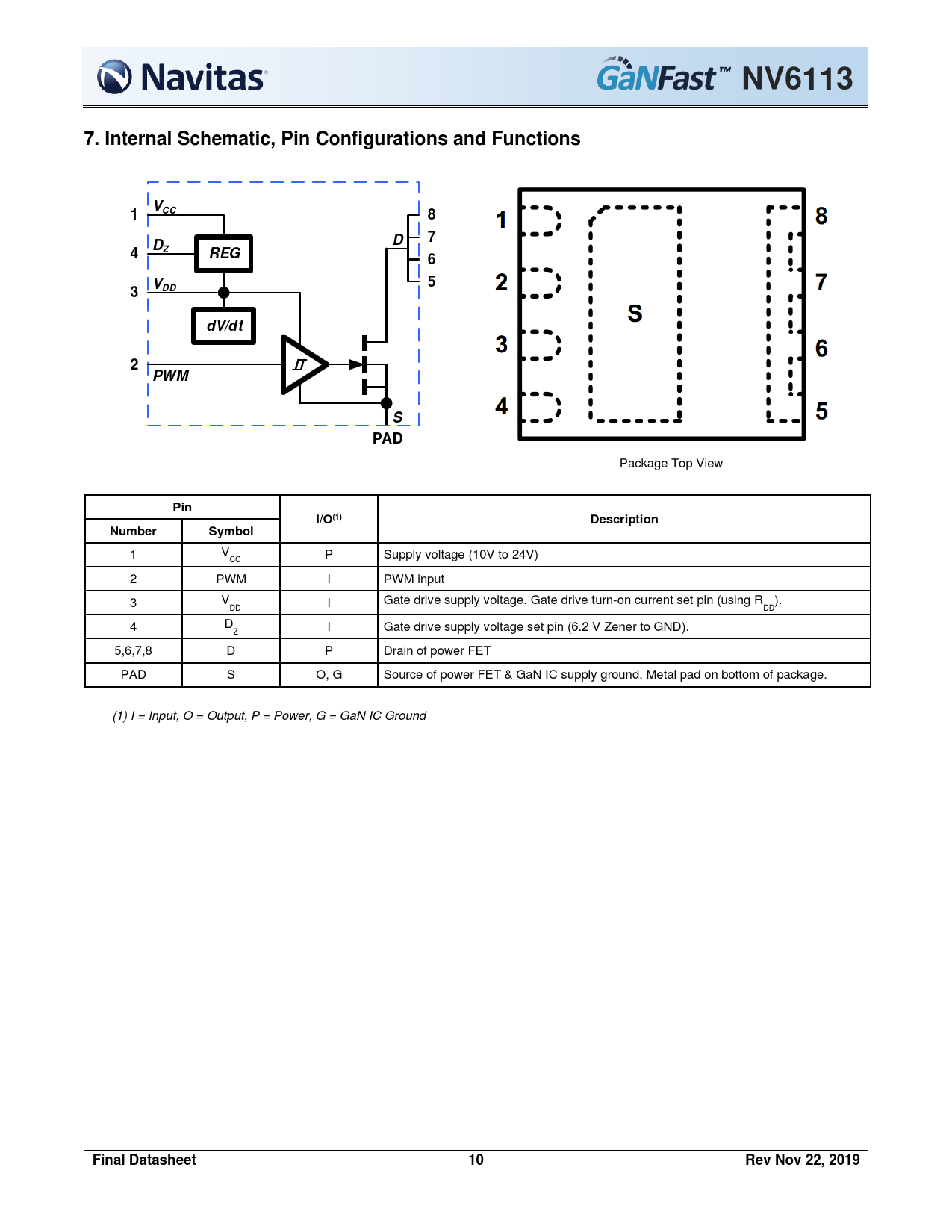

NV6113. 7. Internal Schematic, Pin Configurations and Functions. REG. dV/dt. 2 PWM. PAD. Pin. I/O(1). Description. Number. Symbol

NV6113 7 Internal Schematic, Pin Configurations and Functions REG dV/dt 2 PWM PAD Pin I/O(1) Description Number Symbol

Model Line for this Datasheet

Text Version of Document

NV6113 7. Internal Schematic, Pin Configurations and Functions V 1 CC 8 7 D D 4 Z REG 6 V 5 DD 3 dV/dt 2 PWM S PAD
Package Top View
Pin I/O(1) Description Number Symbol
1 V P Supply voltage (10V to 24V) CC 2 PWM I PWM input 3 V I Gate drive supply voltage. Gate drive turn-on current set pin (using R ). DD DD 4 D I Gate drive supply voltage set pin (6.2 V Zener to GND). Z 5,6,7,8 D P Drain of power FET PAD S O, G Source of power FET & GaN IC supply ground. Metal pad on bottom of package. (1) I = Input, O = Output, P = Power, G = GaN IC Ground
Final Datasheet 10 Rev Nov 22, 2019
