Datasheet AP64352Q (Diodes) - 4
| Manufacturer | Diodes |
| Description | Automotive-compliant, 40V, 3.5A Synchronous Buck with Internal Compensation |
| Pages / Page | 21 / 4 — AP64352Q. Functional Block Diagram. 1.5μA. 4μA. VCC. VIN. Regulator. … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
AP64352Q. Functional Block Diagram. 1.5μA. 4μA. VCC. VIN. Regulator. 20kΩ. Internal. 0.8V. 1.18V –. Reference. RT = 0.089V/A. CSA. OVP. 0.88V -. BST. Iss
Model Line for this Datasheet
Text Version of Document

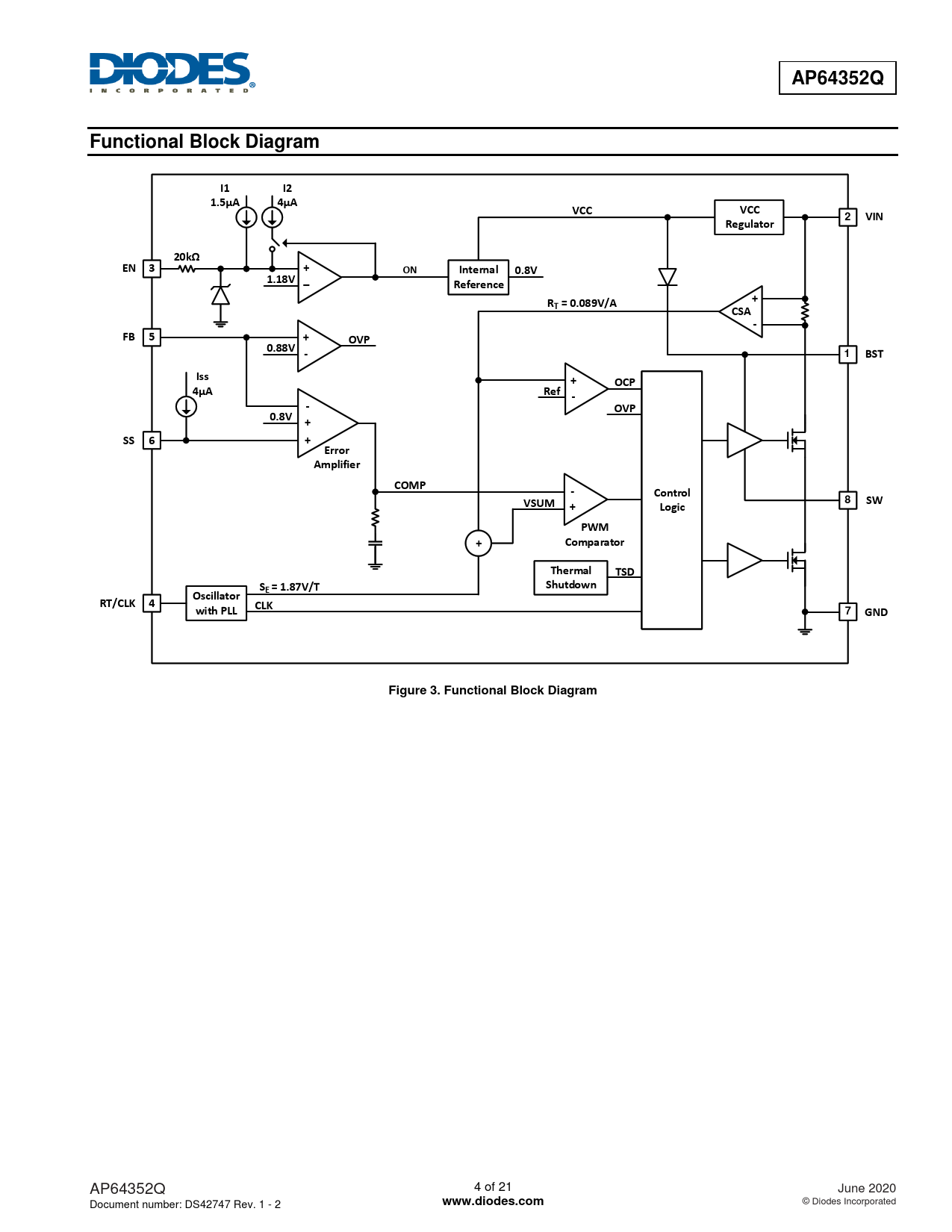

AP64352Q Functional Block Diagram I1 I2 1.5μA 4μA VCC VCC 3 2 VIN Regulator 20kΩ EN 3 + ON Internal 0.8V 1.18V – Reference + RT = 0.089V/A CSA - FB 5 + OVP 0.88V - 6 1 BST Iss + OCP 4μA Ref - - OVP 0.8V + SS 6 + Error Amplifier COMP - Con Co t n ro r l o l VSUM 5 8 SW + Lo L g o i g c i PWM + Comparator Thermal TSD SE Shutdown = 1.87V/T Oscillator RT/CLK 4 CLK with PLL 4 7 GND Figure 3. Functional Block Diagram
