AP64352Q Typical Performance Characteristics
(AP64352Q @ TA = +25°C, VIN = 12V, VOUT = 5V, fSW = 500kHz (RT = 200kΩ ± 1%), CSS = 10nF, unless otherwise specified.) (continued)

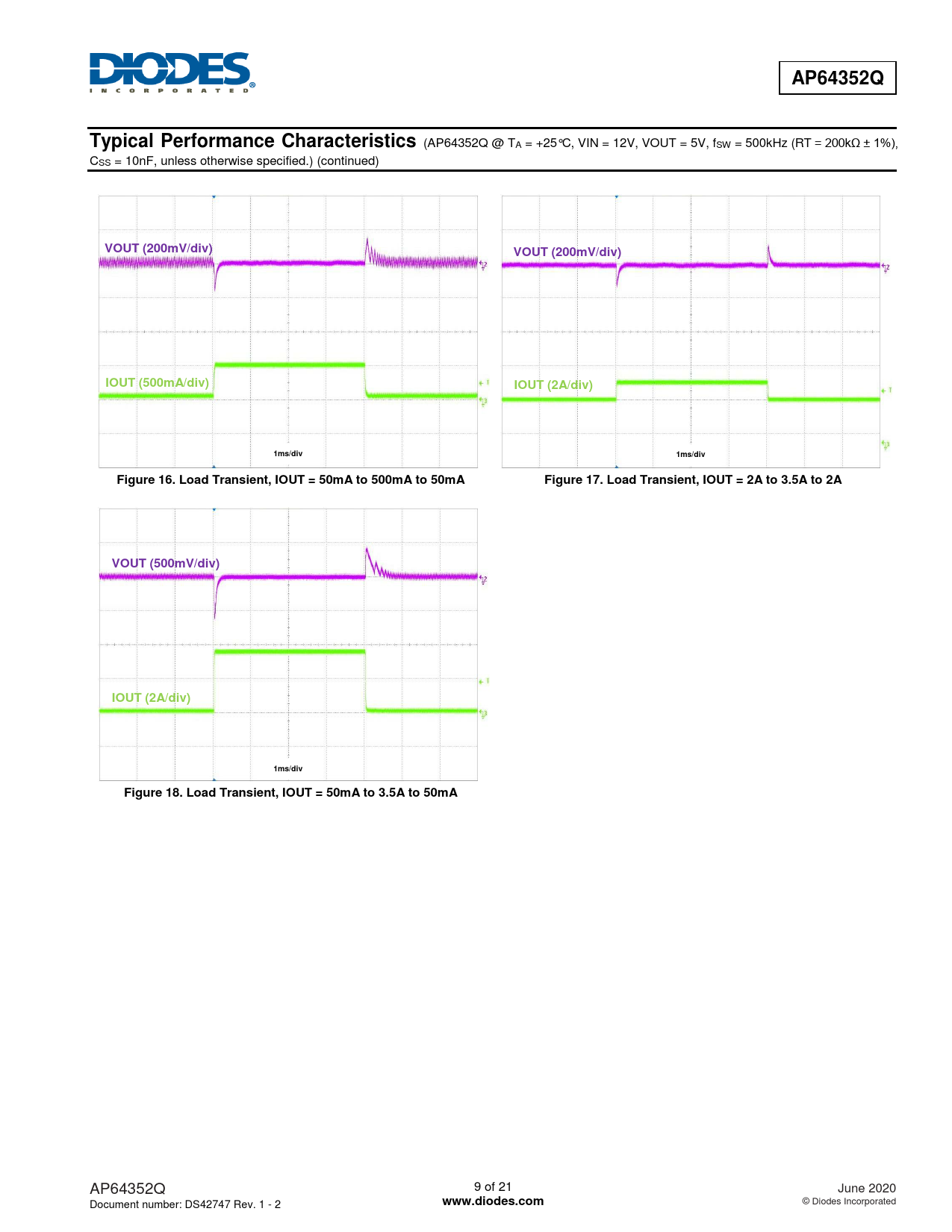

VOUT (200mV/div) VOUT (200mV/div) IOUT (500mA/div) IOUT (2A/div) 1ms/div 1ms/div Figure 16. Load Transient, IOUT = 50mA to 500mA to 50mA Figure 17. Load Transient, IOUT = 2A to 3.5A to 2A VOUT (500mV/div) IOUT (2A/div) 1ms/div Figure 18. Load Transient, IOUT = 50mA to 3.5A to 50mA
