Datasheet ADL5906 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 10 MHz TO 10 GHz 67 dB TruPwr Detector |
| Pages / Page | 32 / 6 — ADL5906. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. … |
| Revision | A |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |

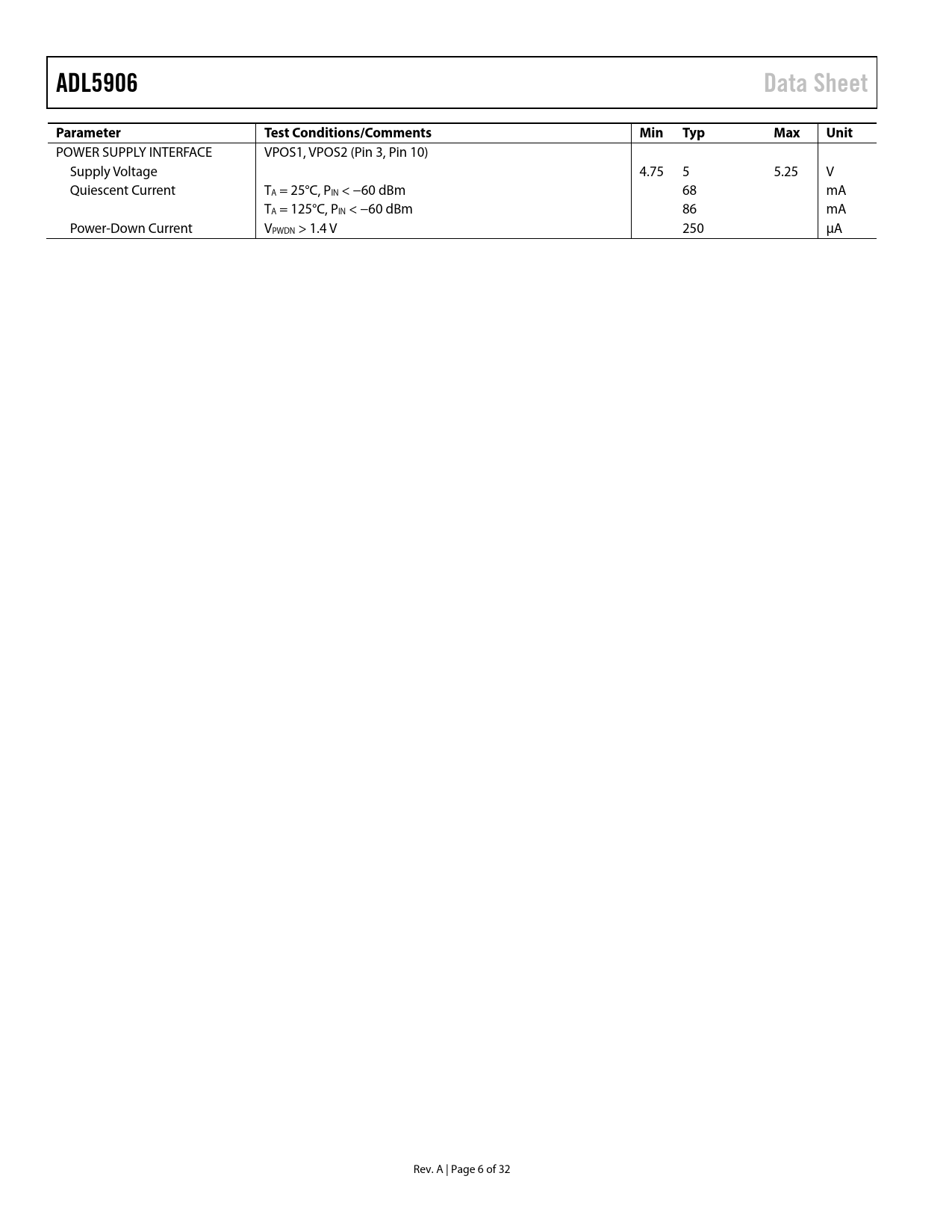

ADL5906. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
ADL5906 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY INTERFACE VPOS1, VPOS2 (Pin 3, Pin 10) Supply Voltage 4.75 5 5.25 V Quiescent Current TA = 25°C, PIN < −60 dBm 68 mA TA = 125°C, PIN < −60 dBm 86 mA Power-Down Current VPWDN > 1.4 V 250 µA Rev. A | Page 6 of 32 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Square Law Detector and Amplitude Target RF Input Interface Temperature Sensor Interface VREF Interface Temperature Compensation Interface Power-Down Interface VSET Interface Output Interface VTGT Interface Basis for Error Calculations Measurement Mode Basic Connections Setting VTADJ Setting VTGT Choosing a Value for CRMS Output Voltage Scaling System Calibration and Error Calculation Using VTEMP to Improve Intercept Temperature Drift Description of Characterization Evaluation Board Evaluation Board Assembly Drawings Outline Dimensions Ordering Guide
