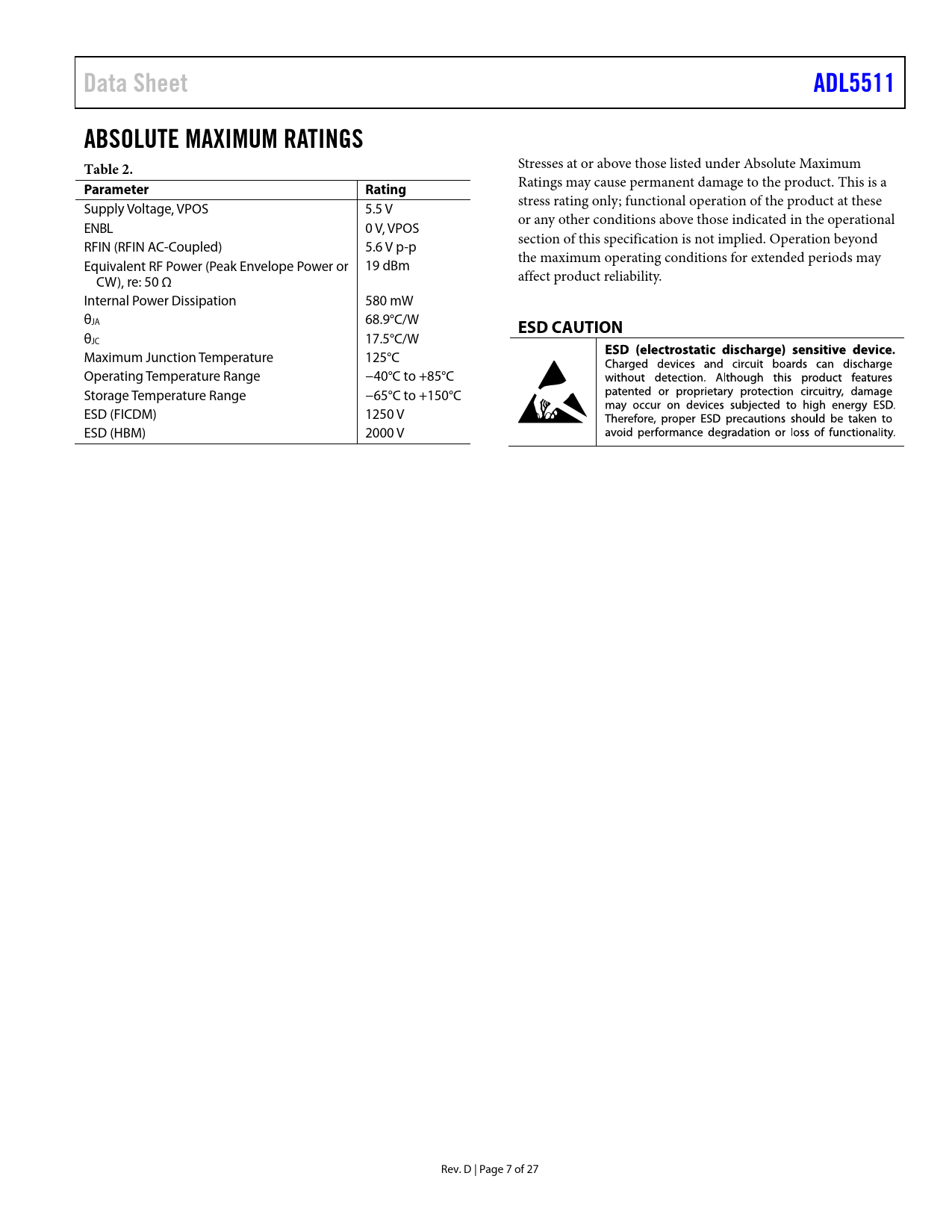

Data Sheet. ADL5511. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5511 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage, VPOS 5.5 V or any other conditions above those indicated in the operational ENBL 0 V, VPOS section of this specification is not implied. Operation beyond RFIN (RFIN AC-Coupled) 5.6 V p-p the maximum operating conditions for extended periods may Equivalent RF Power (Peak Envelope Power or 19 dBm CW), re: 50 Ω affect product reliability. Internal Power Dissipation 580 mW θJA 68.9°C/W
ESD CAUTION
θJC 17.5°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C ESD (FICDM) 1250 V ESD (HBM) 2000 V Rev. D | Page 7 of 27 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description Envelope Propagation Delay RMS Circuit Description RMS Filtering Output Drive Capability and Buffering Viewing the Envelope on an Oscilloscope Applications Information Basic Connections Operation Below 1 GHz/Envelope Filtering Choosing a Value for the RMS Averaging Capacitor (CFLT4) Envelope Tracking Accuracy Time Domain Envelope Tracking Accuracy VRMS and VENV Output Offset Device Calibration and Error Calculation Error vs. Frequency Evaluation Board Outline Dimensions Ordering Guide
