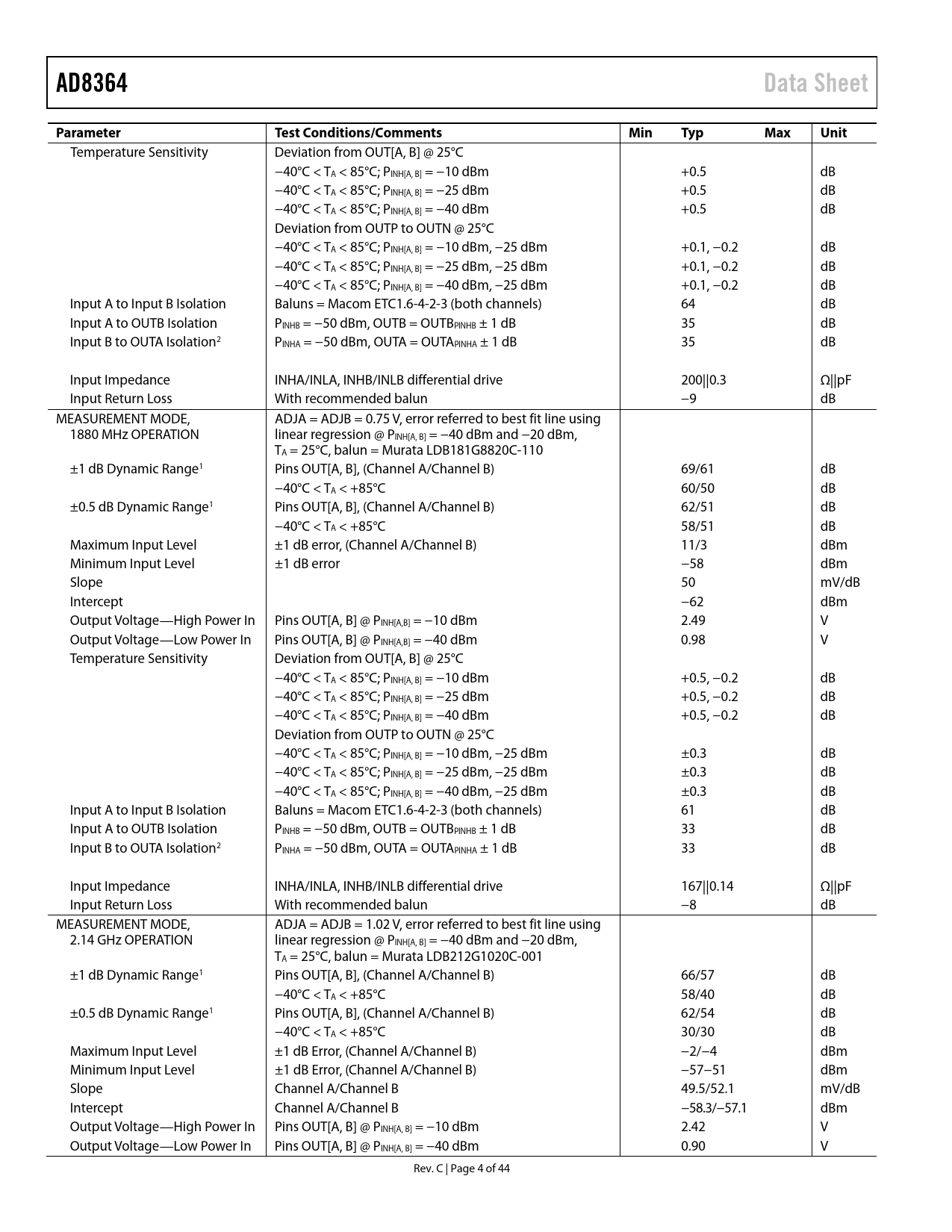

AD8364 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
Temperature Sensitivity Deviation from OUT[A, B] @ 25°C −40°C < TA < 85°C; PINH[A, B] = −10 dBm +0.5 dB −40°C < TA < 85°C; PINH[A, B] = −25 dBm +0.5 dB −40°C < TA < 85°C; PINH[A, B] = −40 dBm +0.5 dB Deviation from OUTP to OUTN @ 25°C −40°C < TA < 85°C; PINH[A, B] = −10 dBm, −25 dBm +0.1, −0.2 dB −40°C < TA < 85°C; PINH[A, B] = −25 dBm, −25 dBm +0.1, −0.2 dB −40°C < TA < 85°C; PINH[A, B] = −40 dBm, −25 dBm +0.1, −0.2 dB Input A to Input B Isolation Baluns = Macom ETC1.6-4-2-3 (both channels) 64 dB Input A to OUTB Isolation PINHB = −50 dBm, OUTB = OUTBPINHB ± 1 dB 35 dB Input B to OUTA Isolation2 PINHA = −50 dBm, OUTA = OUTAPINHA ± 1 dB 35 dB Input Impedance INHA/INLA, INHB/INLB differential drive 200||0.3 Ω||pF Input Return Loss With recommended balun −9 dB MEASUREMENT MODE, ADJA = ADJB = 0.75 V, error referred to best fit line using 1880 MHz OPERATION linear regression @ PINH[A, B] = −40 dBm and −20 dBm, TA = 25°C, balun = Murata LDB181G8820C-110 ±1 dB Dynamic Range1 Pins OUT[A, B], (Channel A/Channel B) 69/61 dB −40°C < TA < +85°C 60/50 dB ±0.5 dB Dynamic Range1 Pins OUT[A, B], (Channel A/Channel B) 62/51 dB −40°C < TA < +85°C 58/51 dB Maximum Input Level ±1 dB error, (Channel A/Channel B) 11/3 dBm Minimum Input Level ±1 dB error −58 dBm Slope 50 mV/dB Intercept −62 dBm Output Voltage—High Power In Pins OUT[A, B] @ PINH[A,B] = −10 dBm 2.49 V Output Voltage—Low Power In Pins OUT[A, B] @ PINH[A,B] = −40 dBm 0.98 V Temperature Sensitivity Deviation from OUT[A, B] @ 25°C −40°C < TA < 85°C; PINH[A, B] = −10 dBm +0.5, −0.2 dB −40°C < TA < 85°C; PINH[A, B] = −25 dBm +0.5, −0.2 dB −40°C < TA < 85°C; PINH[A, B] = −40 dBm +0.5, −0.2 dB Deviation from OUTP to OUTN @ 25°C −40°C < TA < 85°C; PINH[A, B] = −10 dBm, −25 dBm ±0.3 dB −40°C < TA < 85°C; PINH[A, B] = −25 dBm, −25 dBm ±0.3 dB −40°C < TA < 85°C; PINH[A, B] = −40 dBm, −25 dBm ±0.3 dB Input A to Input B Isolation Baluns = Macom ETC1.6-4-2-3 (both channels) 61 dB Input A to OUTB Isolation PINHB = −50 dBm, OUTB = OUTBPINHB ± 1 dB 33 dB Input B to OUTA Isolation2 PINHA = −50 dBm, OUTA = OUTAPINHA ± 1 dB 33 dB Input Impedance INHA/INLA, INHB/INLB differential drive 167||0.14 Ω||pF Input Return Loss With recommended balun −8 dB MEASUREMENT MODE, ADJA = ADJB = 1.02 V, error referred to best fit line using 2.14 GHz OPERATION linear regression @ PINH[A, B] = −40 dBm and −20 dBm, TA = 25°C, balun = Murata LDB212G1020C-001 ±1 dB Dynamic Range1 Pins OUT[A, B], (Channel A/Channel B) 66/57 dB −40°C < TA < +85°C 58/40 dB ±0.5 dB Dynamic Range1 Pins OUT[A, B], (Channel A/Channel B) 62/54 dB −40°C < TA < +85°C 30/30 dB Maximum Input Level ±1 dB Error, (Channel A/Channel B) −2/−4 dBm Minimum Input Level ±1 dB Error, (Channel A/Channel B) −57−51 dBm Slope Channel A/Channel B 49.5/52.1 mV/dB Intercept Channel A/Channel B −58.3/−57.1 dBm Output Voltage—High Power In Pins OUT[A, B] @ PINH[A, B] = −10 dBm 2.42 V Output Voltage—Low Power In Pins OUT[A, B] @ PINH[A, B] = −40 dBm 0.90 V Rev. C | Page 4 of 44 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SQUARE LAW DETECTOR AND AMPLITUDE TARGET RF INPUT INTERFACE OFFSET COMPENSATION TEMPERATURE SENSOR INTERFACE VREF INTERFACE POWER-DOWN INTERFACE VST[A, B] INTERFACE OUT[A, B, P, N] OUTPUTS MEASUREMENT CHANNEL DIFFERENCE OUTPUT USING OUT[P, N] CONTROLLER MODE RF MEASUREMENT MODE BASIC CONNECTIONS CONTROLLER MODE BASIC CONNECTIONS Automatic Power Control Automatic Gain Control CONSTANT OUTPUT POWER OPERATION GAIN-STABLE TRANSMITTER/RECEIVER TEMPERATURE COMPENSATION ADJUSTMENT DEVICE CALIBRATION AND ERROR CALCULATION SELECTING CALIBRATION POINTS TO IMPROVE ACCURACY OVER A REDUCED RANGE CHANNEL ISOLATION ALTERING THE SLOPE CHOOSING THE RIGHT VALUE FOR CHP[A, B] AND CLP[A, B] RF BURST RESPONSE TIME SINGLE-ENDED INPUT OPERATION PRINTED CIRCUIT BOARD CONSIDERATIONS PACKAGE CONSIDERATIONS DESCRIPTION OF CHARACTERIZATION BASIS FOR ERROR CALCULATIONS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
