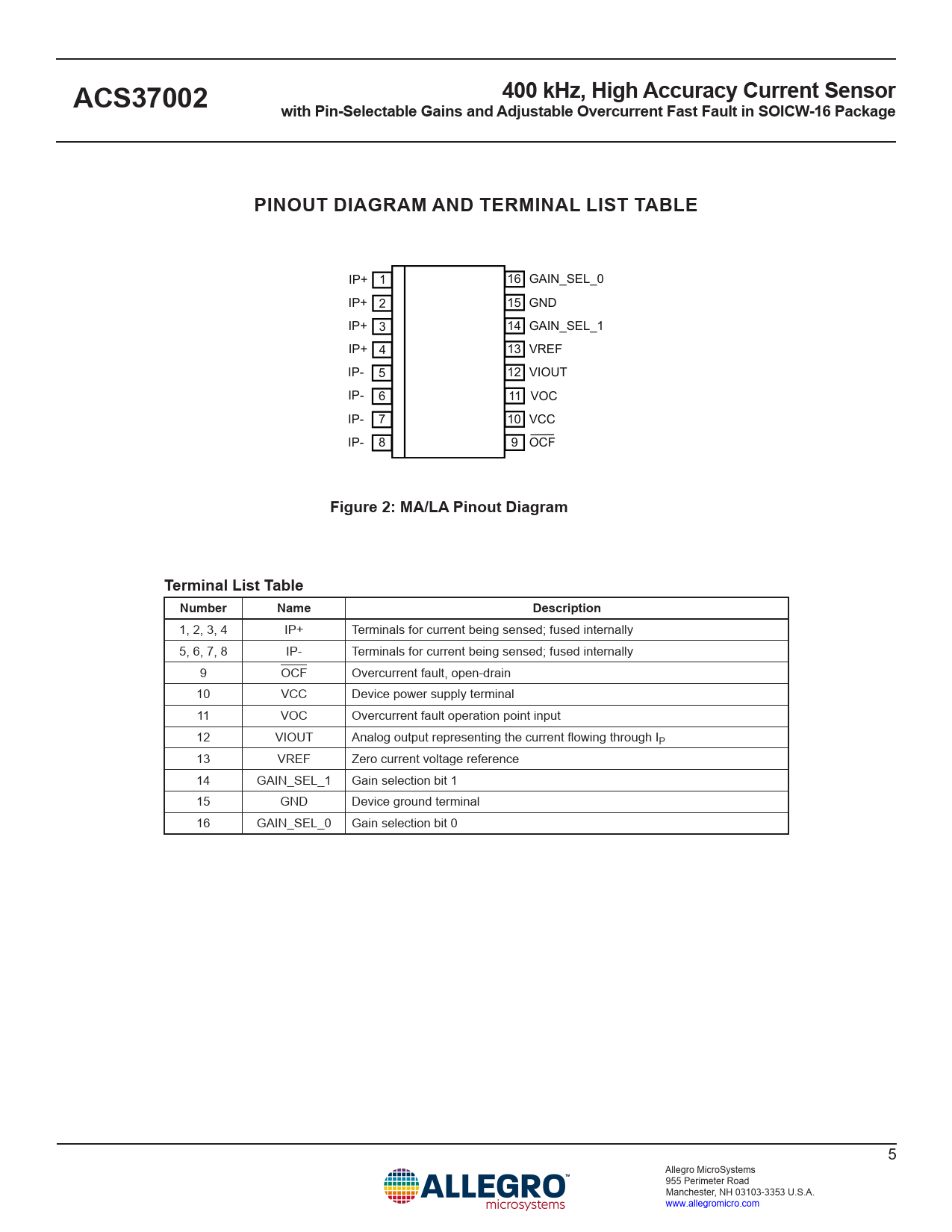

400 kHz, High Accuracy Current Sensor ACS37002 with Pin-Selectable Gains and Adjustable Overcurrent Fast Fault in SOICW-16 Package PINOUT DIAGRAM AND TERMINAL LIST TABLE
IP+ 1 16 GAIN_SEL_0 IP+ 2 15 GND IP+ 3 14 GAIN_SEL_1 IP+ 4 13 VREF IP- 5 12 VIOUT IP- 6 11 VOC IP- 7 10 VCC IP- 8 9 OCF
Figure 2: MA/LA Pinout Diagram Terminal List Table Number Name Description
1, 2, 3, 4 IP+ Terminals for current being sensed; fused internally 5, 6, 7, 8 IP- Terminals for current being sensed; fused internally 9 OCF Overcurrent fault, open-drain 10 VCC Device power supply terminal 11 VOC Overcurrent fault operation point input 12 VIOUT Analog output representing the current flowing through IP 13 VREF Zero current voltage reference 14 GAIN_SEL_1 Gain selection bit 1 15 GND Device ground terminal 16 GAIN_SEL_0 Gain selection bit 0 5 Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com Document Outline Features and Benefits Description Packages Selection guide Absolute Maximum Ratings Isolation Characteristics MA Package Specific Performance LA Package Specific Performance Pinout Diagram and Terminal List Functional Block Diagram Common Electrical Characteristics Performance Characteristics Functional Description Power-On Reset Operation Power-On Power-Off Power-On Timing Power-On Reset (POR) Overvoltage and Undervoltage Detection Undervoltage Detection Voltage Thresholds (VUVD(H/L)) Overvoltage Detection Voltage Thresholds (VOVD(H/L)) Overvoltage/Undervoltage Detection Hysteresis (VOVDHys, VUVDHys) Overvoltage and Undervoltage Enable and Disable Time (tOVD(E/D), tUVD(E/D)) Supply Zener Clamp Voltages Absolute Maximum Ratings Forward and Reverse Supply Voltage Forward and Reverse Output Voltage Forward and Reverse Reference/Fault Voltage Output Source and Sink Current Definitions of Operating and PErformance Characteristics Zero Current Voltage Output (VIOUT(Q), QVO) QVO Temperature Drift (VQE) Reference Voltage (VREF) Reference Voltage Temperature Drift (VRE) Offset Voltage (VOE) Output Saturation Voltage (VSAT(HIGH/LOW)) Sensitivity (Sens) Sensitivity Error (Esens) Gain Selection Pins Full Scale (FS) Nonlinearity (ELIN) Total Output Error (ETOT) Power Supply Offset Error (VPS) Offset Power Supply Rejection Ratio (PSRRO) Power Supply Sensitivity Error (EPS) Sensitivity Power Supply Rejection Ratio (PSRRS) Fault Behavior Overcurrent Fault (OCF) Overcurrent Fault Operating Range/Point (IOCF-OR, IOCF-OP) Overcurrent Fault Hysteresis (IOCF-Hyst) Voltage Overcurrent Pin (VOC) OverCurrent Fault Error (EOCF) OverCurrent Fault Response Time (tOCF) OverCurrent Fault Reaction Time (tOCF-R) OverCurrent Fault Mask Time (tOCF-MASK) OverCurrent Fault Hold Time (tOCF-HOLD) OverCurrent Fault Persist OCF Disable Dynamic Response Parameters Propagation Time (tpd) Rise Time (tR) Response Time (tRESPONSE) Overshoot Settling Time Temperature Compensation Temperature Compensation Update Rate Application and Theory Application Circuits Theory and Functionality – VOC and OCF VOC Driven by Non-Inverting Buffered VREF Power Supply Decoupling Capacitor and Output Capacitive Loads Dynamically Change Gain in a System Thermal Performance Thermal Rise vs. Primary Current Evaluation Board Layout Package Outline Drawings MA Package LA Package
