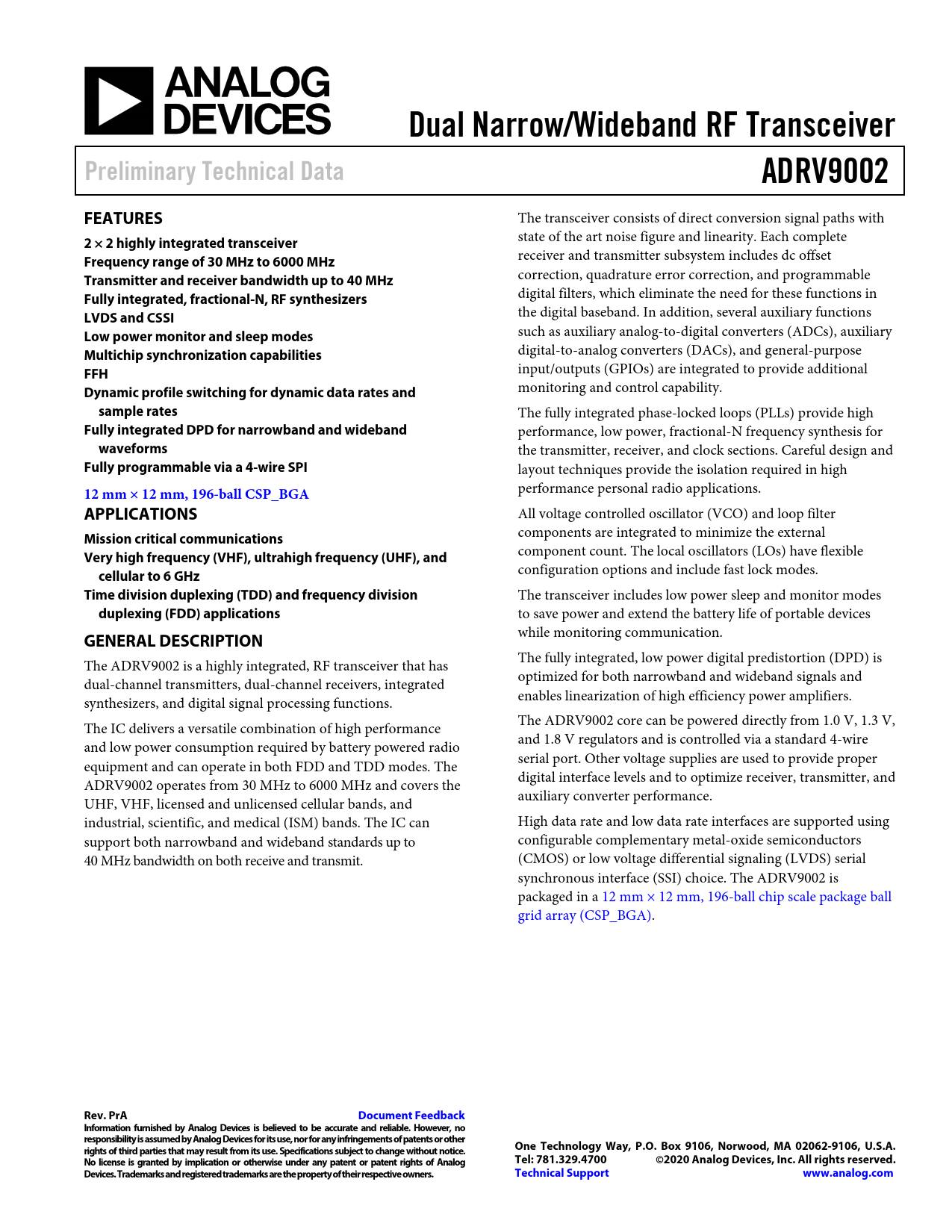

Dual Narrow/Wideband RF Transceiver Preliminary Technical Data ADRV9002 FEATURES
The transceiver consists of direct conversion signal paths with state of the art noise figure and linearity. Each complete
2 × 2 highly integrated transceiver
receiver and transmitter subsystem includes dc offset
Frequency range of 30 MHz to 6000 MHz Transmitter and receiver bandwidth up to 40 MHz
correction, quadrature error correction, and programmable
Fully integrated, fractional-N, RF synthesizers
digital filters, which eliminate the need for these functions in
LVDS and CSSI
the digital baseband. In addition, several auxiliary functions
Low power monitor and sleep modes
such as auxiliary analog-to-digital converters (ADCs), auxiliary
Multichip synchronization capabilities
digital-to-analog converters (DACs), and general-purpose
FFH
input/outputs (GPIOs) are integrated to provide additional
Dynamic profile switching for dynamic data rates and
monitoring and control capability.
sample rates
The fully integrated phase-locked loops (PLLs) provide high
Fully integrated DPD for narrowband and wideband
performance, low power, fractional-N frequency synthesis for
waveforms
the transmitter, receiver, and clock sections. Careful design and
Fully programmable via a 4-wire SPI
layout techniques provide the isolation required in high
12 mm × 12 mm, 196-ball CSP_BGA
performance personal radio applications.
APPLICATIONS
All voltage controlled oscillator (VCO) and loop filter
Mission critical communications
components are integrated to minimize the external
Very high frequency (VHF), ultrahigh frequency (UHF), and
component count. The local oscillators (LOs) have flexible
cellular to 6 GHz
configuration options and include fast lock modes.
Time division duplexing (TDD) and frequency division
The transceiver includes low power sleep and monitor modes
duplexing (FDD) applications
to save power and extend the battery life of portable devices while monitoring communication.
GENERAL DESCRIPTION
The fully integrated, low power digital predistortion (DPD) is The ADRV9002 is a highly integrated, RF transceiver that has optimized for both narrowband and wideband signals and dual-channel transmitters, dual-channel receivers, integrated enables linearization of high efficiency power amplifiers. synthesizers, and digital signal processing functions. The ADRV9002 core can be powered directly from 1.0 V, 1.3 V, The IC delivers a versatile combination of high performance and 1.8 V regulators and is controlled via a standard 4-wire and low power consumption required by battery powered radio serial port. Other voltage supplies are used to provide proper equipment and can operate in both FDD and TDD modes. The digital interface levels and to optimize receiver, transmitter, and ADRV9002 operates from 30 MHz to 6000 MHz and covers the auxiliary converter performance. UHF, VHF, licensed and unlicensed cellular bands, and industrial, scientific, and medical (ISM) bands. The IC can High data rate and low data rate interfaces are supported using support both narrowband and wideband standards up to configurable complementary metal-oxide semiconductors 40 MHz bandwidth on both receive and transmit. (CMOS) or low voltage differential signaling (LVDS) serial synchronous interface (SSI) choice. The ADRV9002 is packaged in a 12 mm × 12 mm, 196-ball chip scale package ball grid array (CSP_BGA).
