RN41/RN41N. FIGURE 1-2:. RN41 MODULE. FIGURE 1-4:. RN41 PIN DIAGRAM. DIMENSIONS. RN41. Top View. FIGURE 1-5:. RN41N PIN DIAGRAM
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6 link to page 7 link to page 6 link to page 6
RN41/RN41N

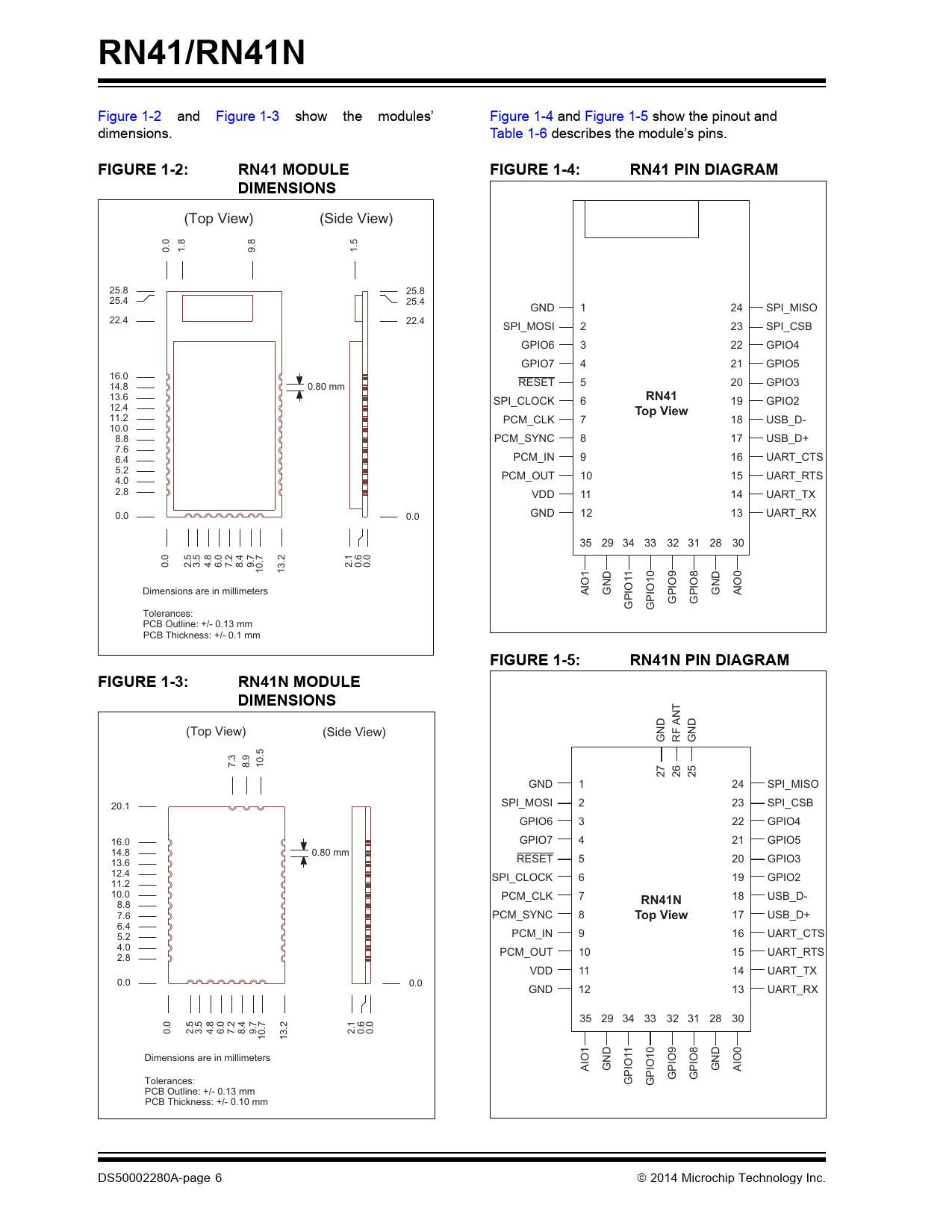

Figure 1-2 and Figure 1-3 show the modules’ Figure 1-4 and Figure 1-5 show the pinout and dimensions. Table 1-6 describes the module’s pins.
FIGURE 1-2: RN41 MODULE FIGURE 1-4: RN41 PIN DIAGRAM DIMENSIONS
7RS9LHZ 6LGH9LHZ GND 1 24 SPI_MISO SPI_MOSI 2 23 SPI_CSB GPIO6 3 22 GPIO4 GPIO7 4 21 GPIO5 PP RESET 5 20 GPIO3 SPI_CLOCK 6
RN41
19 GPIO2
Top View
PCM_CLK 7 18 USB_D- PCM_SYNC 8 17 USB_D+ PCM_IN 9 16 UART_CTS PCM_OUT 10 15 UART_RTS VDD 11 14 UART_TX GND 12 13 UART_RX 35 29 34 33 32 31 28 30 1 'LPHQVLRQVDUHLQPLOOLPHWHUV AIO1 GND GND AIO0 GPIO1 GPIO10 GPIO9 GPIO8 7ROHUDQFHV 3&%2XWOLQHPP 3&%7KLFNQHVVPP
FIGURE 1-5: RN41N PIN DIAGRAM FIGURE 1-3: RN41N MODULE DIMENSIONS
7RS9LHZ 6LGH9LHZ GND RF ANT GND 27 26 25 GND 1 24 SPI_MISO SPI_MOSI 2 23 SPI_CSB GPIO6 3 22 GPIO4 GPIO7 4 21 GPIO5 PP RESET 5 20 GPIO3 SPI_CLOCK 6 19 GPIO2 PCM_CLK 7 18 USB_D-
RN41N
PCM_SYNC 8
Top View
17 USB_D+ PCM_IN 9 16 UART_CTS PCM_OUT 10 15 UART_RTS VDD 11 14 UART_TX GND 12 13 UART_RX 35 29 34 33 32 31 28 30 1 'LPHQVLRQVDUHLQPLOOLPHWHUV AIO1 GND GND AIO0 7ROHUDQFHV GPIO1 GPIO10 GPIO9 GPIO8 3&%2XWOLQHPP 3&%7KLFNQHVVPP DS50002280A-page 6 2014 Microchip Technology Inc. Document Outline 1.0 Device Overview 1.1 MCU Interface 1.2 ASCII Command and Data Interface TABLE 1-1: Environmental Conditions TABLE 1-2: Electrical Characteristics TABLE 1-3: Module Dimensions TABLE 1-4: Radio Characteristics TABLE 1-5: Digital I/O Characteristics TABLE 1-6: Pin Description 2.0 Application Information 2.1 Reset Circuit 2.2 Factory Reset Using GPIO4 2.3 Connection Status TABLE 2-1: GPIO5 Status TABLE 2-2: GPIO2 Status 2.4 Module Mounting Details 2.5 External Antenna Types (RN41N) TABLE 2-3: Tested External Antenna Types 2.6 HCI Mode 2.7 Soldering Recommendations 2.8 SPI Interface 2.9 Bluetooth SIG QDID 2.10 Application Schematic 3.0 Regulatory Approval 3.1 United States 3.2 Canada 3.3 Europe TABLE 3-1: RN41 European Compliance Testing TABLE 3-2: RN41N European Compliance Testing 3.4 Australia 3.5 New Zealand 4.0 Ordering Information TABLE 4-1: Ordering Information Class 1 Bluetooth® Module with EDR Support Worldwide Sales and Service
