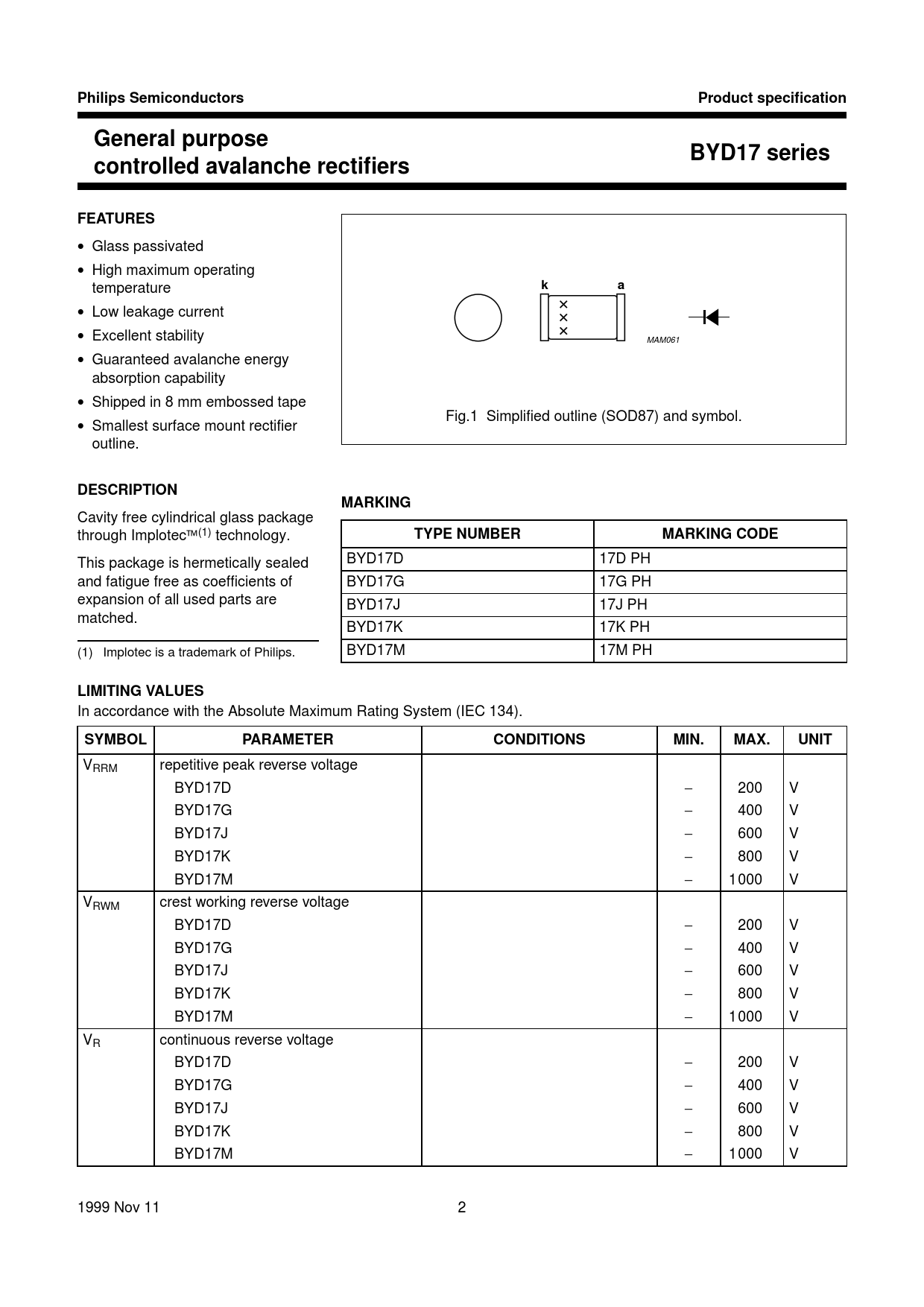

Philips Semiconductors. Product specification. General purpose. BYD17 series. controlled avalanche rectifiers. FEATURES
Model Line for this Datasheet
Text Version of Document
Philips Semiconductors Product specification General purpose BYD17 series controlled avalanche rectifiers FEATURES
• Glass passivated • High maximum operating temperature handbook, 4 columns
k a
• Low leakage current • Excellent stability MAM061 • Guaranteed avalanche energy absorption capability • Shipped in 8 mm embossed tape • Fig.1 Simplified outline (SOD87) and symbol. Smallest surface mount rectifier outline.
DESCRIPTION MARKING
Cavity free cylindrical glass package through Implotec(1) technology.
TYPE NUMBER MARKING CODE
This package is hermetically sealed BYD17D 17D PH and fatigue free as coefficients of BYD17G 17G PH expansion of all used parts are BYD17J 17J PH matched. BYD17K 17K PH (1) Implotec is a trademark of Philips. BYD17M 17M PH
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage BYD17D − 200 V BYD17G − 400 V BYD17J − 600 V BYD17K − 800 V BYD17M − 1000 V VRWM crest working reverse voltage BYD17D − 200 V BYD17G − 400 V BYD17J − 600 V BYD17K − 800 V BYD17M − 1000 V VR continuous reverse voltage BYD17D − 200 V BYD17G − 400 V BYD17J − 600 V BYD17K − 800 V BYD17M − 1000 V 1999 Nov 11 2
