Datasheet TP4056 (Top Power ASIC) - 3
| Manufacturer | Top Power ASIC |
| Description | A Standalone Linear Li-lon Battery Charger with Thermal Regulation in SOP-8 |
| Pages / Page | 3 / 3 — indicator light state. Rprog Current Setting. TYPICAL APPLICATIONS |
| File Format / Size | PDF / 61 Kb |
| Document Language | English |

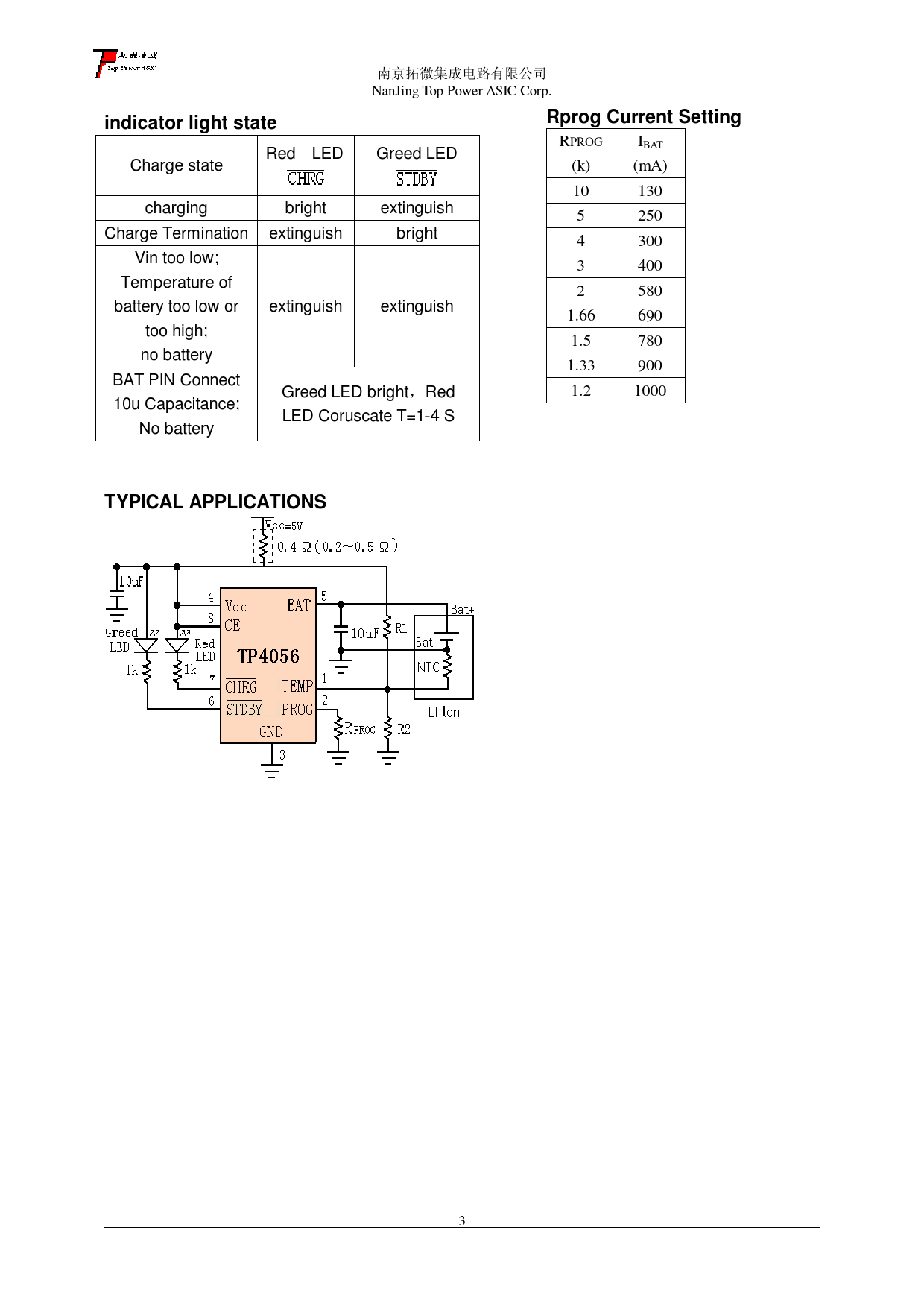

indicator light state. Rprog Current Setting. TYPICAL APPLICATIONS
Model Line for this Datasheet
Text Version of Document
南京拓微集成电路有限公司 NanJing Top Power ASIC Corp.
indicator light state Rprog Current Setting
RPROG IBAT Red LED Greed LED Charge state (k) (mA) 10 130 charging bright extinguish 5 250 Charge Termination extinguish bright 4 300 Vin too low; 3 400 Temperature of 2 580 battery too low or extinguish extinguish 1.66 690 too high; 1.5 780 no battery 1.33 900 BAT PIN Connect Greed LED bright，Red 1.2 1000 10u Capacitance; LED Coruscate T=1-4 S No battery
TYPICAL APPLICATIONS
3
indicator light state Rprog Current Setting
RPROG IBAT Red LED Greed LED Charge state (k) (mA) 10 130 charging bright extinguish 5 250 Charge Termination extinguish bright 4 300 Vin too low; 3 400 Temperature of 2 580 battery too low or extinguish extinguish 1.66 690 too high; 1.5 780 no battery 1.33 900 BAT PIN Connect Greed LED bright，Red 1.2 1000 10u Capacitance; LED Coruscate T=1-4 S No battery
TYPICAL APPLICATIONS
3
